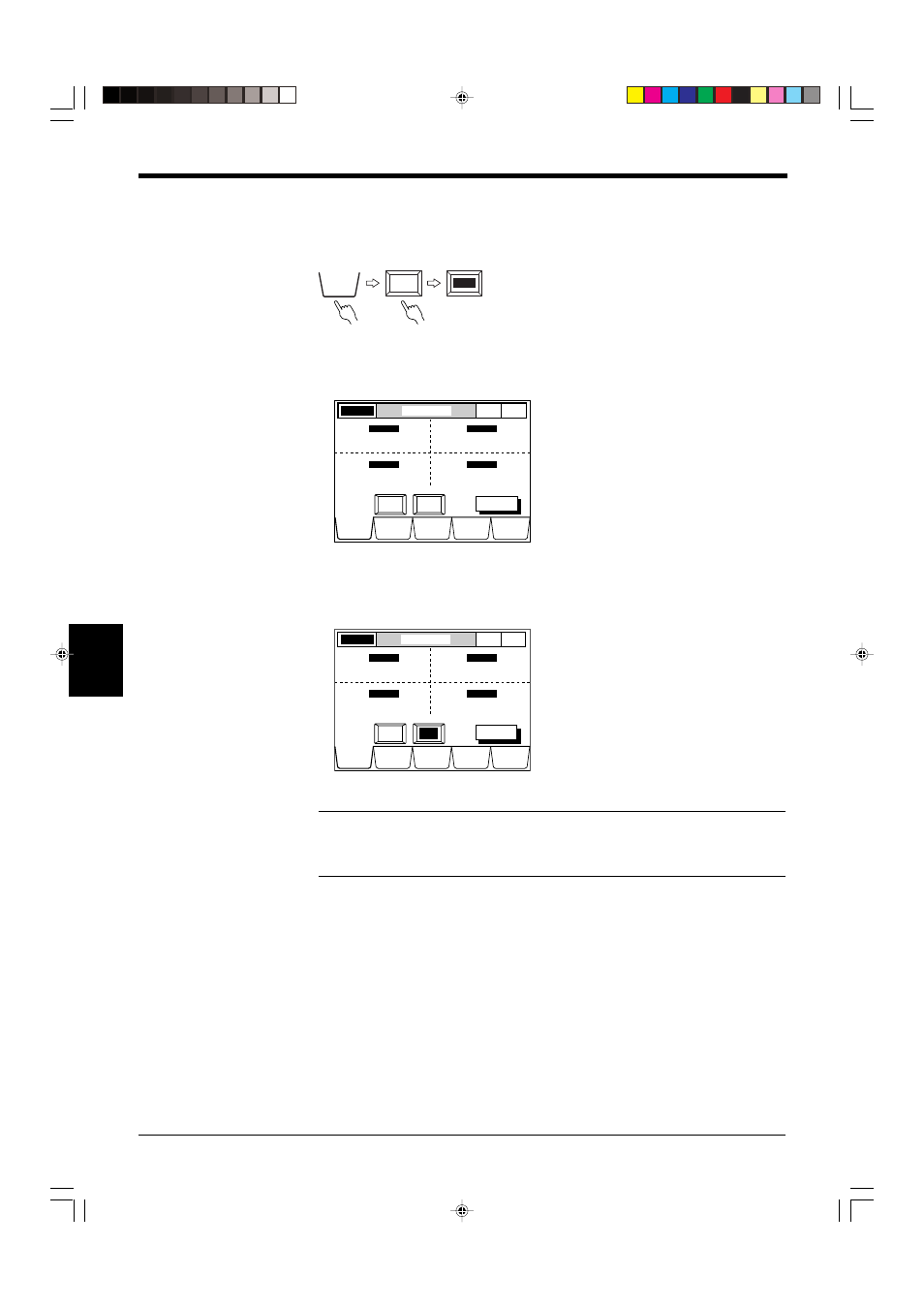

1 1 1 1 1 [HOLD] Hold Function
The hold function allows the displayed value and output value to be held or reset
regardless of the measuring mode.
■ Setting Procedure
1. Select the DISPLAY DATA screen.
Press the [DISPLAY DATA] button. The screen shown below is displayed.
2. Set the hold function.
Press the [HOLD OFF] button. [HOLD OFF] is changed to [HOLD ON].
Note: The hold function cannot be set separately for each output from this screen.
To set this function separately for each output, send the hold signal from the
control I/O board (Option). (Short-circuit the Tim input terminal and the GND
terminal.)
