Chapter 5 Outline of Measurements
24
5

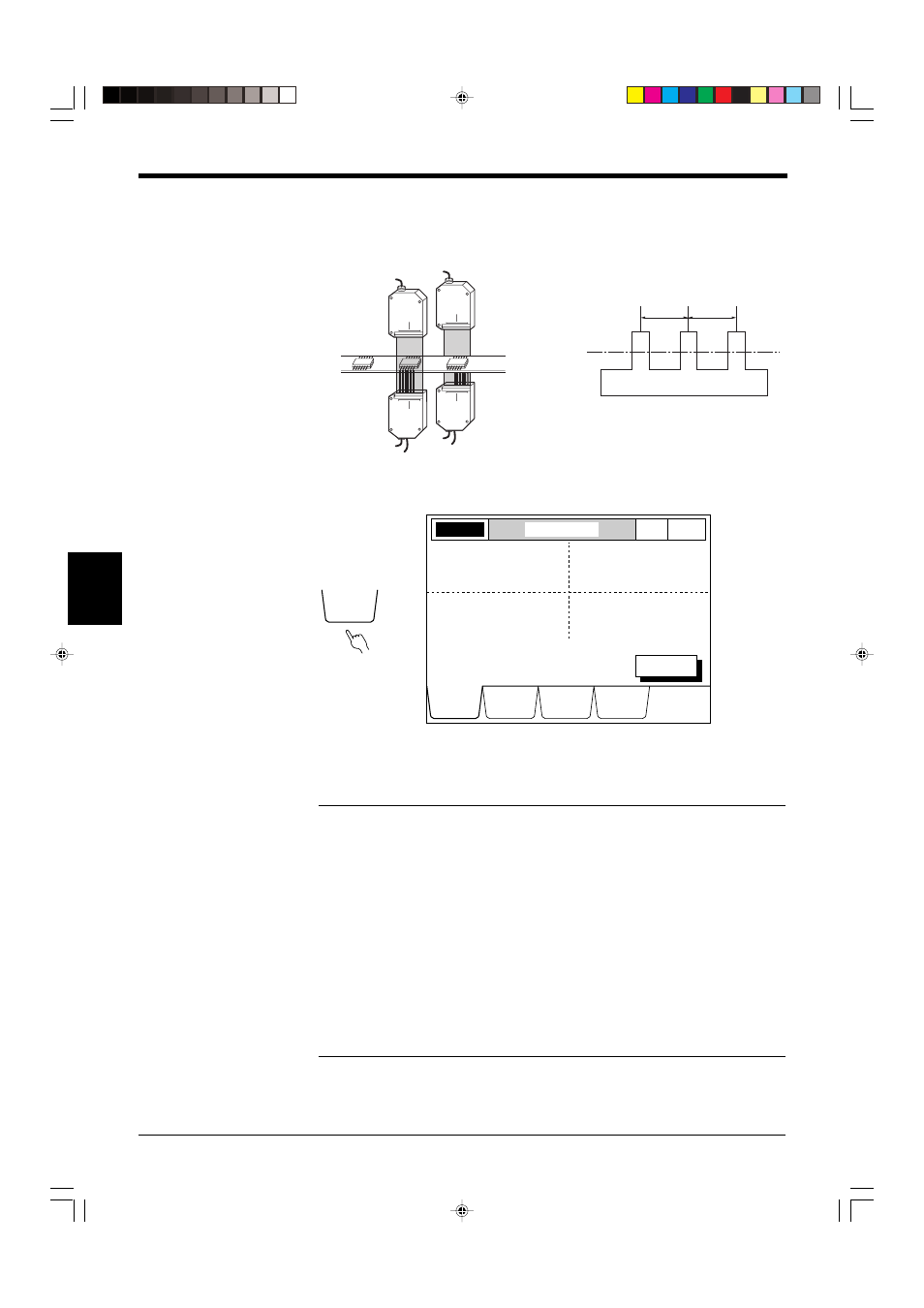

5.3 Pitch Mode ➮ For the setting procedure, see p. 72.
Pitch mode enables pitch measurement using connector pins or IC leads.
This mode measures each center-to-center pitch, and displays the maximum and
minimum values.
Note 1: When Pitch mode is selected, only one measurement can be performed
with one scanning head.
Note 2: When Pitch mode is selected, the comparator output is activated as shown
below:
HI3 = Alarm output
HI2 = Disabled
HI1 = Output when the measured value exceeds the upper/lower limit.
GO = Output when the measured value is within the upper/lower limit.
LO1: Disabled
LO2: Disabled
LO3: Disabled
The analog output and RS-232C output are activated as shown below.
Analog output: Held at +10V.
RS-232C output: Output according to the command.
➮ See p. 97.
LASER ON DISPLAY DATA PITCH P. 1
HEAD1
OK
Max
Min
0.5010
0.4990
HEAD2
OK
Max
Min
0.6010
0.5990
HEAD3
OK
Max
Min
0.7020
0.6980
HEAD4
OK
Max
Min
0.8020
0.7980
SCREEN
DISPLAY
DATA
LIMIT
SETUP
PROGRAM OPTIONS
DISPLAY
DATA
Pitch
Optical axis
