Chapter 6 Normal Mode
54
6
A
A
A
A
A Digit Suppression Function
The digits after the decimal point can be suppressed as required.

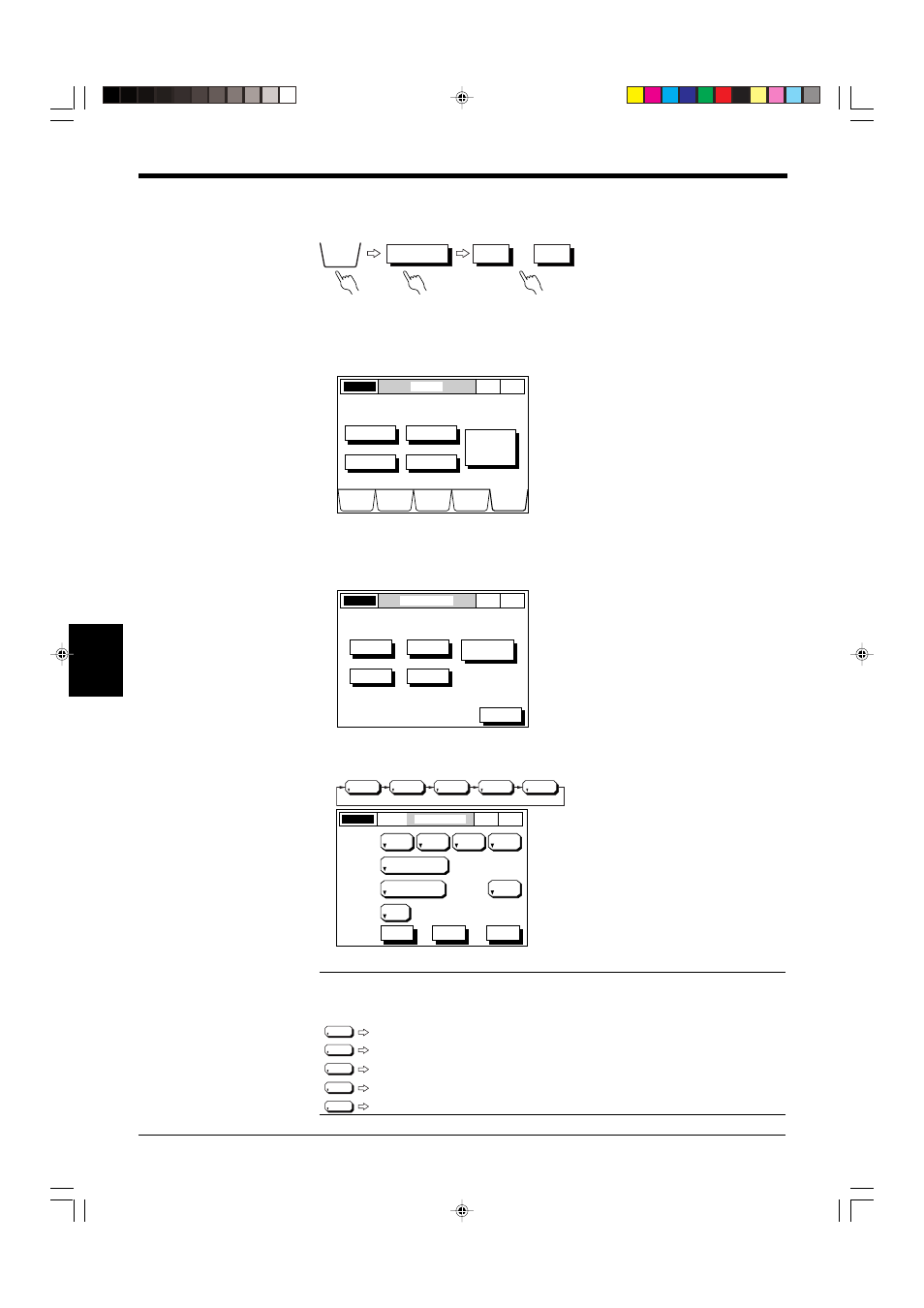

■ Setting Procedure
1. Select the OPTIONS screen. Press the [OPTIONS] button.
2. Select the OUTPUT MODE screen. Press the [OUTPUT] button.
3. Change the number of digits.
Press the button corresponding to the output number for which the number of
digits is to be changed.
Every time you press the [DIGIT SUPPRESS] button, the display changes in
the following order. The value indicates the number of digit to be suppressed.
Note: The relationship between each switch setting and the number of displayed
digits is as follows:
Example
(Displays 5 digits after the decimal point: 10.00000 mm/1.000000 inch)
(Displays 4 digits after the decimal point: 10.0000 mm/1.00000 inch)
(Displays 3 digits after the decimal point: 10.000 mm/1.0000 inch)
(Displays 2 digits after the decimal point: 10.00 mm/1.000 inch)
(Displays 1 digit after the decimal point: 10.0 mm/1.00 inch)
OPTIONS
OUTPUT
OUT1
• • •
OUT4
LASER ON
OPTIONS
NOR
MAL
P. 1
DISPLAY
DATA
LIMIT
SETUP
PROGRAM
CALIB
OPTIONS
AREA
OUTPUT
INSPECT
UTILITY
Select Option to setup.
MODE
CHANGE
Normal
-> Pitch
LASER ON
OUTPUT MODE
NOR
MAL
P. 1
OUT1
OUT2
OUT3
I/O SLOT
SETUP
OUT4
ESC
Select Output to set.
OUTPUT MODE
OUT1
LASER ON
P. 1
+A1
OFF
OFF
OFF
AREA1
AREA2
AREA3
AREA4
100
AVERAGE
CAL-
CULATE
1 (0.833ms)
MEASUR-
ING MODE
SELF-TIMING
INTERVAL (ms)
NORMAL
DIGIT
SUPPRESS
NONE
ESC
HELP
NEXT
NOR
MAL
NONE
1
2
3
4
NONE
1
2
3
4
