Chapter 6 Normal Mode
34
6

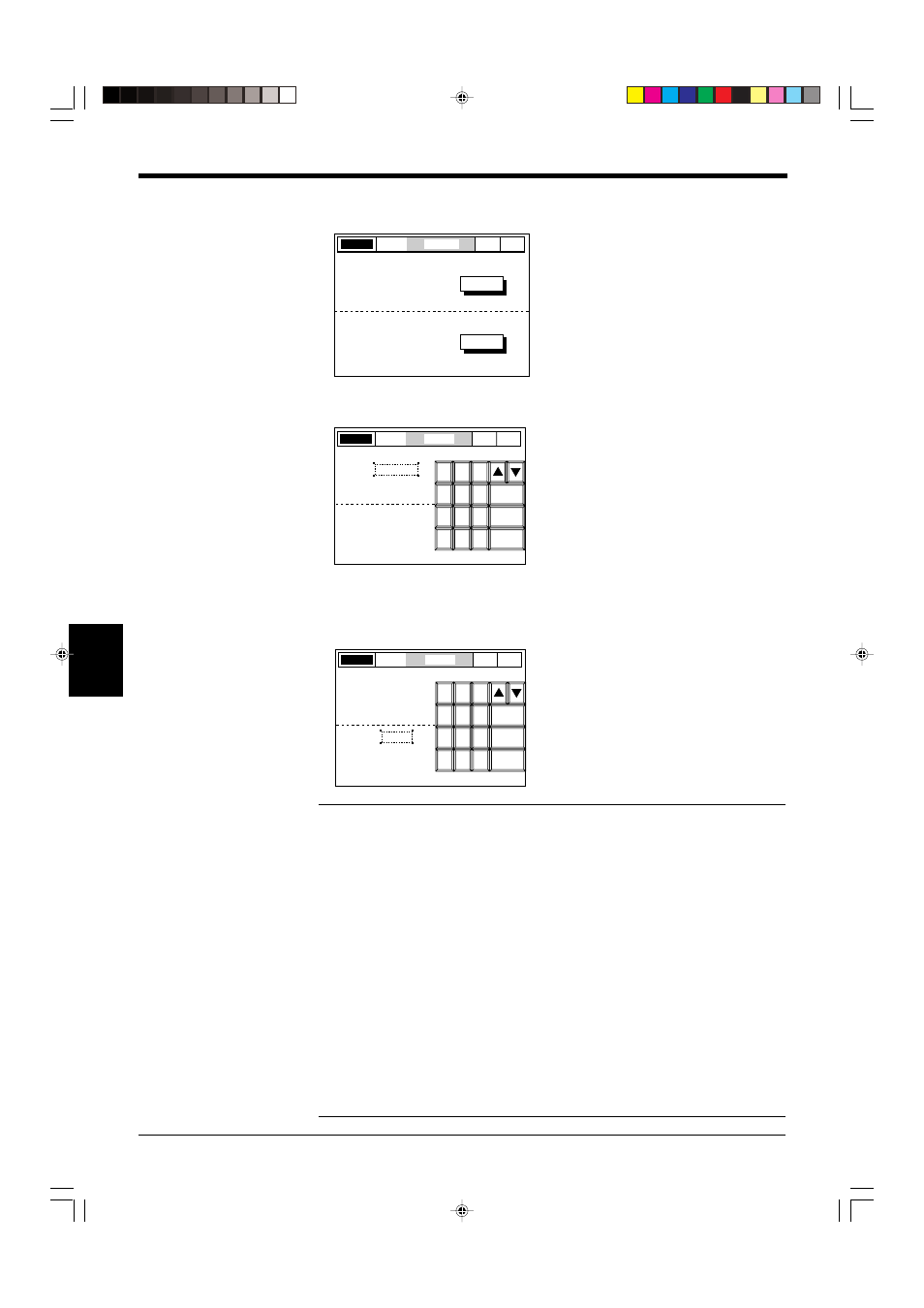

4. Set the range of GRAPH display.
Perform “RANGE SETUP”. Press the [RANGE] button.
Select the item from MAX or MIN using the [
▲] [ ] arrow keys.
Enter a value using the numeric keys and press [ENTER].
5. Perform “TIME SETUP”.
Press the [TIME] button. Select the item from SAMPLING FREQ or NO. OF
DATA using the [
▲] [ ] arrow keys. Enter a value using the numeric keys and
press [ENTER].
Note 1: Range Setup
The maximum and minimum range setup values are as follows:
Max.: 999.9999 (9.99999)
Min.: -99.9999 (-0.99999)
*
Values in ( ) are the maximum and minimum values displayed in inches.
When the displayed value exceeds the above range, “OVER” is displayed and the
entered value cannot be accepted.
Note 2: Time Setup
The maximum and minimum values for the sampling frequency and the number of
displayed data are as follows:
Sampling frequency
Max.: 30000 x 0.1 s (3000 s) Min.: 1 (0.1 s)
Number of displayed data
Max.: 600 Min.: 2
When the sampling frequency or the number of displayed data exceeds the above
range, “OVER” is displayed and the entered value cannot be accepted.
Note 3: The above maximum and minimum values are independent of tolerance
limits.
LASER ON
SETUP
OUT1
NOR
MAL
P. 1
RANGE
TIME
MAX:
MIN:
40.0000
0.0000
SAMPLING
FREQ:
NO. OF DATA:
1 X 0.1S
100
▲
▲
Press [ESCAPE] to complete the entry.
Press [CANCEL] to cancel the entry. The
value returns to the previous value.
Press [ESCAPE] to complete the entry.
Press [CANCEL] to cancel the entry. The
value returns to the previous value.
SETUP
OUT2
LASER ON
NOR
MAL
P. 1
8
7
5
6
4
2
3
1
0
9
ENTER
CANCEL
ESCAPE
MAX:
40.0000
MIN:
SAMPLING
FREQ:
NO. OF DATA:
0.0000
1 X 0.
100
SETUP
OUT1
LASER ON
NOR
MAL
P. 1
8
7
5
6
4
2
3
1
.
-
0
9
ENTER
CANCEL
ESCAPE
MAX:
40.0000
MIN:
SAMPLING
FREQ:
NO. OF DATA:
0.0000
1 X 0.
100
