Chapter 6 Normal Mode
35
6
4 4 4 4 4 Limit Setup
7-level-tolerance-limits can be set separately for four outputs. ( ➮ See p.41 for
setting output.)
■ Setting Procedure

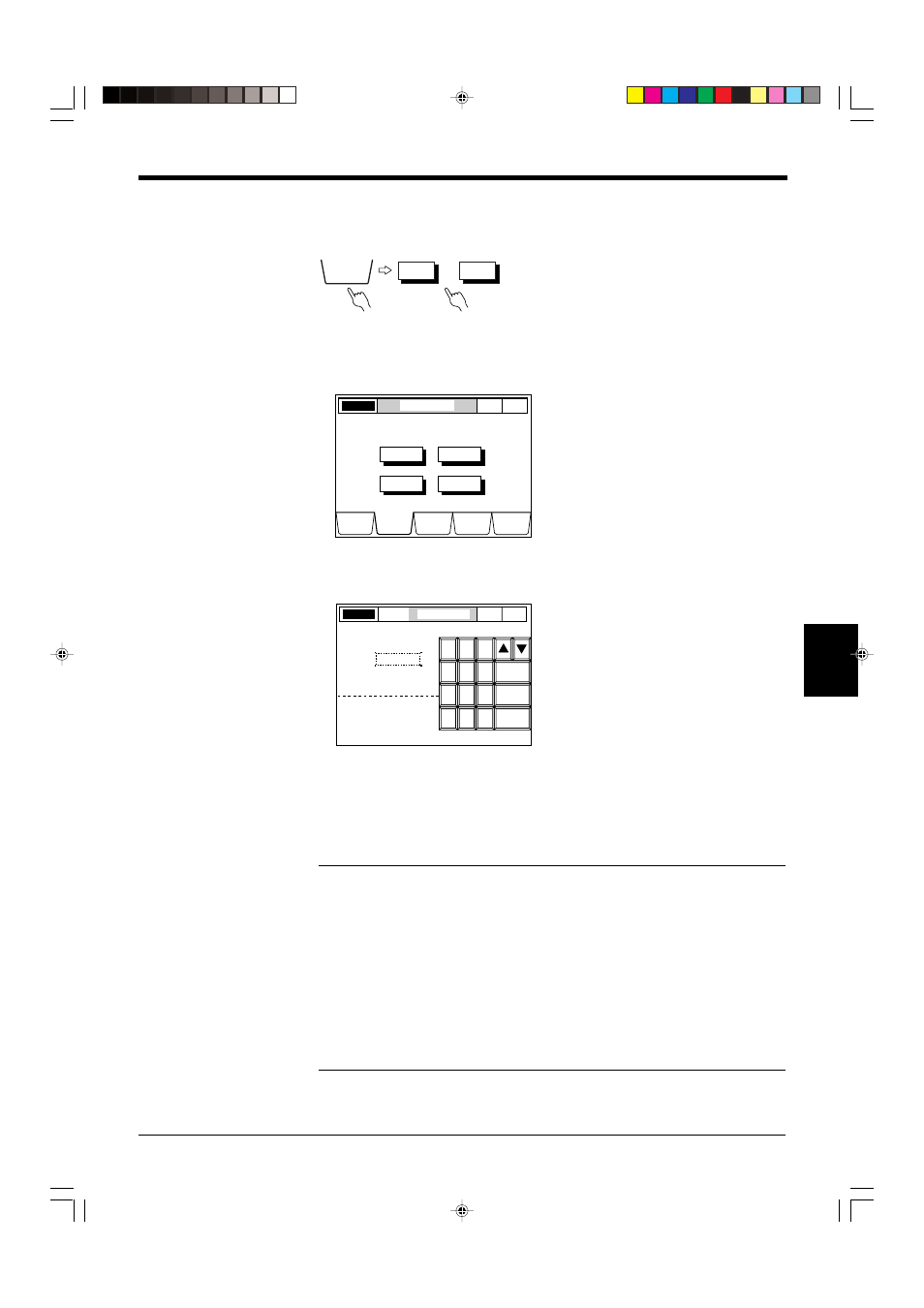

1. Select the LIMIT SETUP screen.
Press the [LIMIT SETUP] button. The screen shown below is displayed.
2. Set tolerance limits.
Press the button corresponding to the output for which you wish to set tolerance
limits.
Select a desired tolerance limit using the [ ▲]/[ ] arrow keys.
Enter a value using the numeric keys, and press [ENTER].
Press [ESCAPE] to complete the entry.
Press [CANCEL] to cancel the entry. The value returns to the previous value.
Note 1: When a measured value exceeds the tolerance range, the measured value
is displayed in reverse. The differentiation result corresponding to the tolerance
limits is output from the display unit and the control I/O (option) board.
Note 2: Tolerance limits must conform to the following condition:
HI3 > HI2 > HI1 > LO3 > LO2 > LO1
Otherwise, the tolerance value cannot be entered. (The “ERR” message appears
on the display and the entered value cannot be accepted.)
Note 3: The maximum and minimum tolerance limit values are as follows:
Max.: 999.9999 (9.99999)
Min.: -99.9999 (-0.99999)
* Values in ( ) are the maximum and minimum values displayed in inches.
OUT1 • • • OUT4
LIMIT
SETUP
LASER ON SELECT OUTPUT NOR
MAL
P. 1
DISPLAY
DATA
LIMIT
SETUP PROGRAM CALIB OPTIONS
OUT1
OUT2
OUT3
OUT4
Select Output No. to set the limits.
LIMIT SETUP OUT1 LASER ON NOR
MAL
P. 1
8 7
5 6 4
2 3 1
. - 0
9
ENTER
CANCEL
ESCAPE
HI3 30.0000
HI2 25.0000
HI3 20.0000
LO1 15.0000
LO2 10.0000
LO3 5.0000
▲
