Chapter 6 Normal Mode
59
6
D D D D D I/O Slot Setup
The expansion I/O board can be set. ➮ See p. 100.

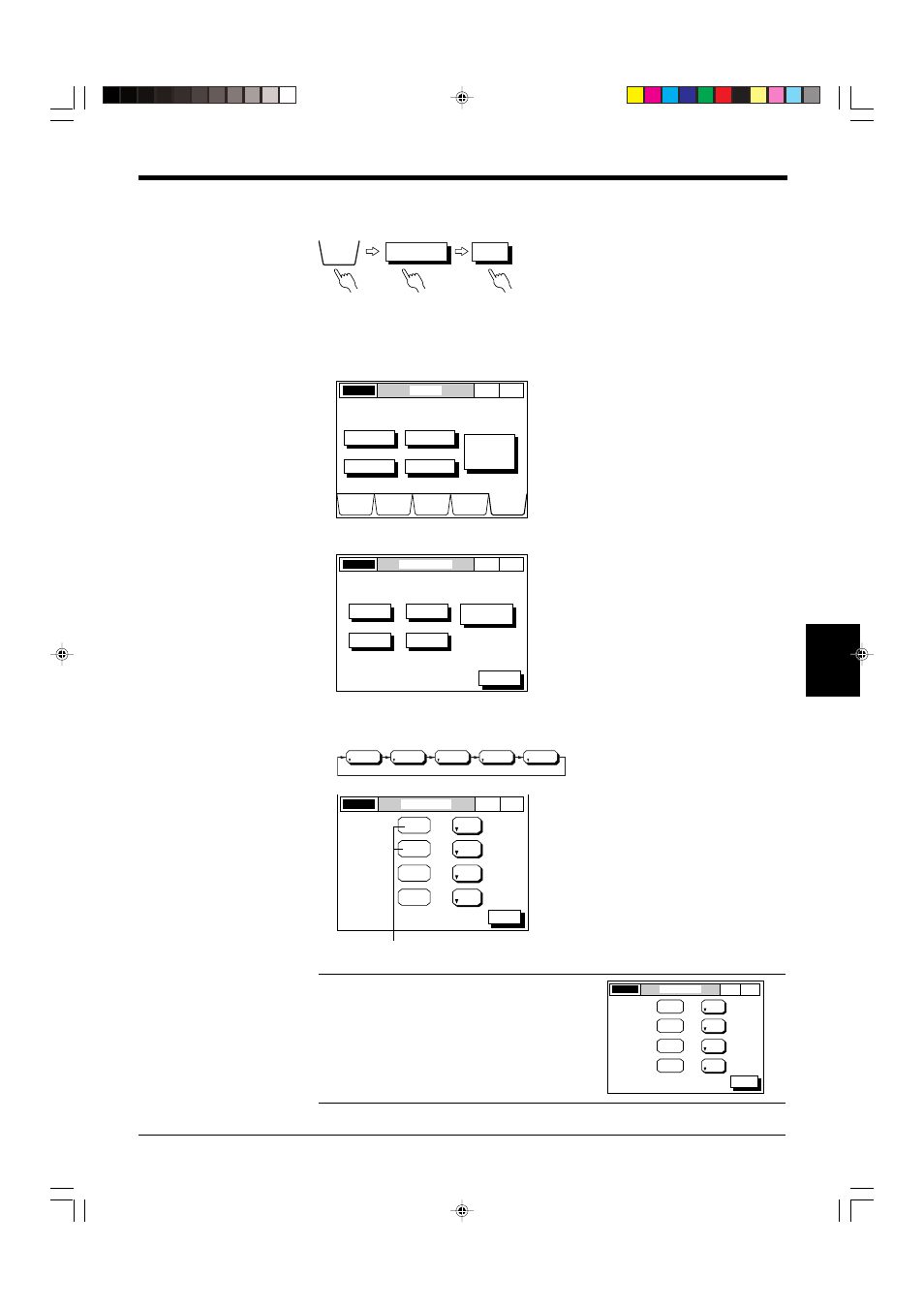

■ Setting Procedure
1. Select the OPTIONS screen. Press the [OPTIONS] button.
2. Select the OUTPUT MODE screen. Press the [OUTPUT] button.
3. Press the [I/O SLOT SETUP] button.
4. Set the output number.
Every time you press the button, the display changes in the following order.
Note 1: When there is no I/O board mounted
in the expansion slot, the display is as
shown on the right.
Note 2: When an I/O board is mounted in
the expansion slot, the same output number
cannot be set for different channels.
OPTIONS OUTPUT MODE I/O SLOT
SET UP
LASER ON OPTIONS NOR
MAL
P. 1
DISPLAY
DATA
LIMIT
SETUP PROGRAM CALIB OPTIONS
AREA
OUTPUT
INSPECT
UTILITY
Select Option to setup.
MODE
CHANGE
Normal
-> Pitch
LASER ON OUTPUT MODE
NOR
MAL P. 1
OUT1
OUT2
OUT3 I/O SLOT
SETUP
OUT4
ESC
Select Output to set.
OUT1 OUT2 OUT3 OUT4 NONE
LASER ON I/O SLOT SETUP NOR
MAL
P. 1
I/O OUT1 HEAD1
NONE HEAD2
NONE HEAD1
NONE HEAD2
SLOT1 CH1
I/O CH2
NONE SLOT2 CH1
NONE CH2
ESC
The I/O board mounted in the expansion slot is shown.
LASER ON I/O SLOT SETUP NOR
MAL P. 1
NONE
NONE
NONE
NONE
NONE
NONE
NONE
NONE
SLOT1 CH1
CH2
SLOT2 CH1
CH2
ESC
