Chapter 6 Normal Mode
28
6
6.3 Setting Measuring Mode
Setting Scanning Head and Measurement
1. Setting Measuring Area
The LS-5000 series can simultaneously perform four measurements and outputs
with one scanning head, and different measurements and outputs with four scan-
ning heads.
( ➮ See note.)
The place for which the measurement condition is set is called the “measuring
area” (A1 to A4), where the scanning head number and measuring mode can be
set.
Note: The LS-5002 and 5502 can only control a single scanning head.
2. Setting Output Mode
The LS-5000 series can accept measurement data from multiple scanning heads
and perform calculations on the data for displaying and outputting the comparator
result.
Using the preset measuring area (A1 to A4), you can set various calculation and
measuring modes, as well as the number of averaging measurements as shown
below.

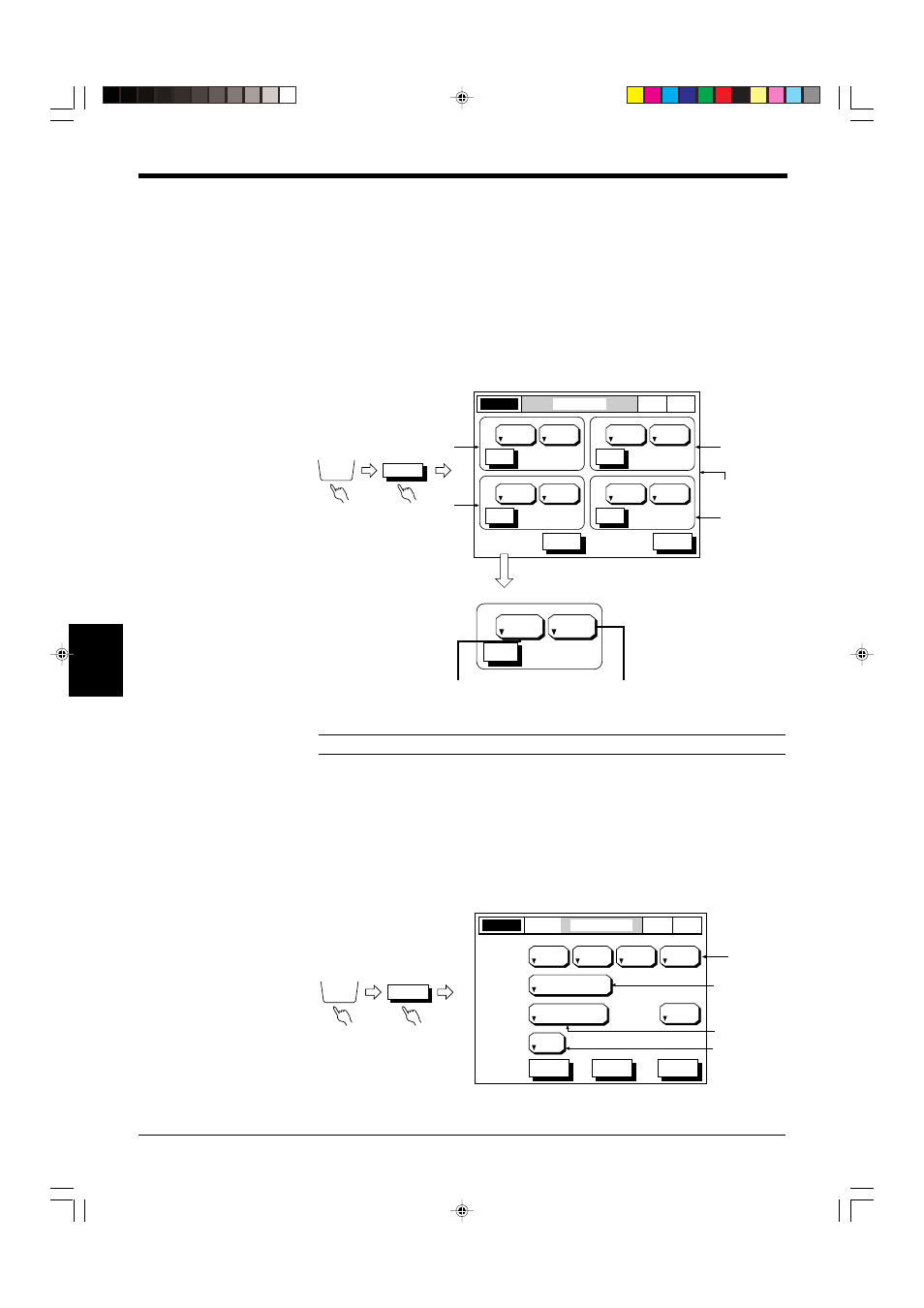

LASER ON AREA SETUP NOR
MAL
P. 1
DIA HEAD1
( 2, 3)
ESC HELP
SET
HEAD No.
EDGE No.
A1
SEGMENT SEGMENT
SEGMENT SEGMENT
DIA HEAD2
( 2, 3)
SET
HEAD No.
EDGE No.
A2
DIA HEAD1
( 2, 3)
SET
HEAD No.
EDGE No.
A3
DIA HEAD1
( 2, 3)
SET
HEAD No.
EDGE No.
A4
AREA OPTIONS
A3
A4
A1
A2
DIA HEAD2
( 2, 3)
SET
HEAD No.
EDGE No.
A2
SEGMENT
Set the measurement mode
[DIA, T.EDGE, B.EDGE, SEG(m,n)].
(AREA SETUP
screen)
A2 (Measuring area 2)
Set the scanning
head number (1 to 4).
OUTPUT MODE OUT1 LASER ON P. 1
+A1 OFF OFF OFF
AREA1 AREA2 AREA3 AREA4
100
AVERAGE
CAL-
CULATE
1 (0.833ms)
MEASUR-
ING MODE
SELF-TIMING
INTERVAL (ms)
NORMAL
DIGIT
SUPPRESS
NONE
ESC HELP NEXT
NOR
MAL
OUTPUT OPTIONS
Digit
Calculation
No. of Averaging
Measurements
Measurement
mode
