Chapter 6 Normal Mode
32
6

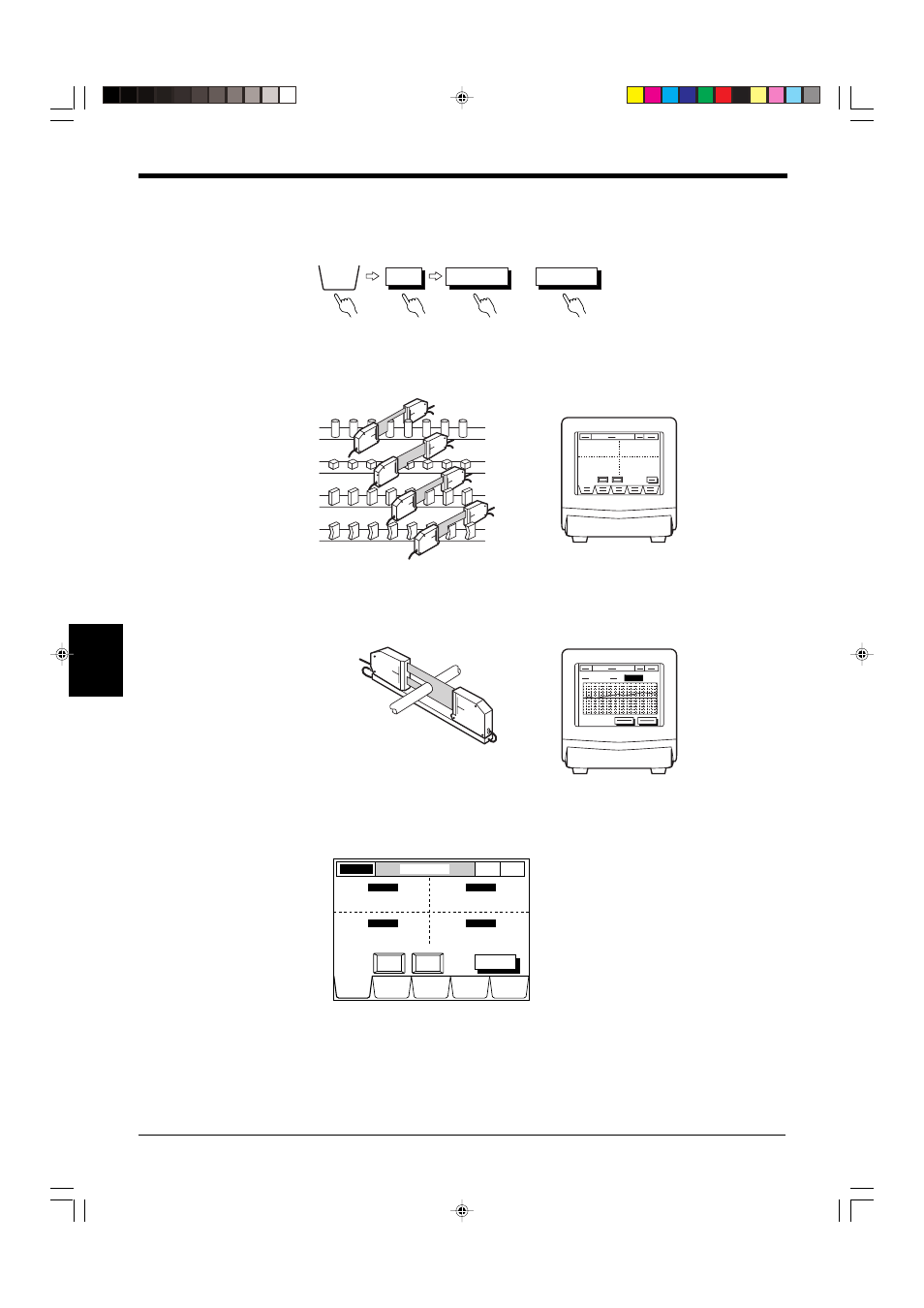

3 3 3 3 3 [SCREEN] Screen Selection Function
The screen selection function allows you to select the DISPLAY DATA screen (1 to
4 data displays) or the DISPLAY GRAPH screen.
Example 1: When several scanning heads are used
Example 2: Measurement of wire’s outer diameter
■ Setting Procedure
1. Select the DISPLAY DATA screen.
Press the [DISPLAY DATA] button. The screen shown below is displayed.
2. Select the SCREEN SELECT screen.
Press the [SCREEN] button.
LASER ON DISPLAY DATA NOR
MAL
P. 1
OUT1 54.21595
HI1 20.0000
LO1 15.0000
HI3
OUT2 54.21595
HI1 20.0000
LO1 15.0000
HI3
OFF OFF
ZERO HOLD
OUT3 54.21595
HI1 20.0000
LO1 15.0000
HI3
OUT4 54.21595
HI1 20.0000
LO1 15.0000
HI3
SCREEN
DISPLAY
DATA
LIMIT
SETUP
PROGRAM CALIB OPTIONS
DISPLAY
DATA
SCREEN DISPLAY DATA DISPLAY GRAPH or
OUT1 54.21595 H13 OUT3 5421595 H13
HI
LO
OUT2 54.21595 H13 OUT4 5421595 H13
HI
LO
HI
LO
HI
LO
200000
200000
200000
200000
200000
200000
200000
200000
