Chapter 7 Pitch Mode
71
7
7.2 Initial Screen
LASER ON DISPLAY DATA PITCH P. 1
HEAD1
OK
Max
Min
0.5010
0.4990
HEAD2
OK
Max
Min
0.6010
0.5990
HEAD3
OK
Max
Min
0.7020
0.6980
HEAD4
OK
Max
Min
0.8020
0.7980
SCREEN
DISPLAY
DATA
LIMIT
SETUP
PROGRAM OPTIONS
Laser ON/OFF

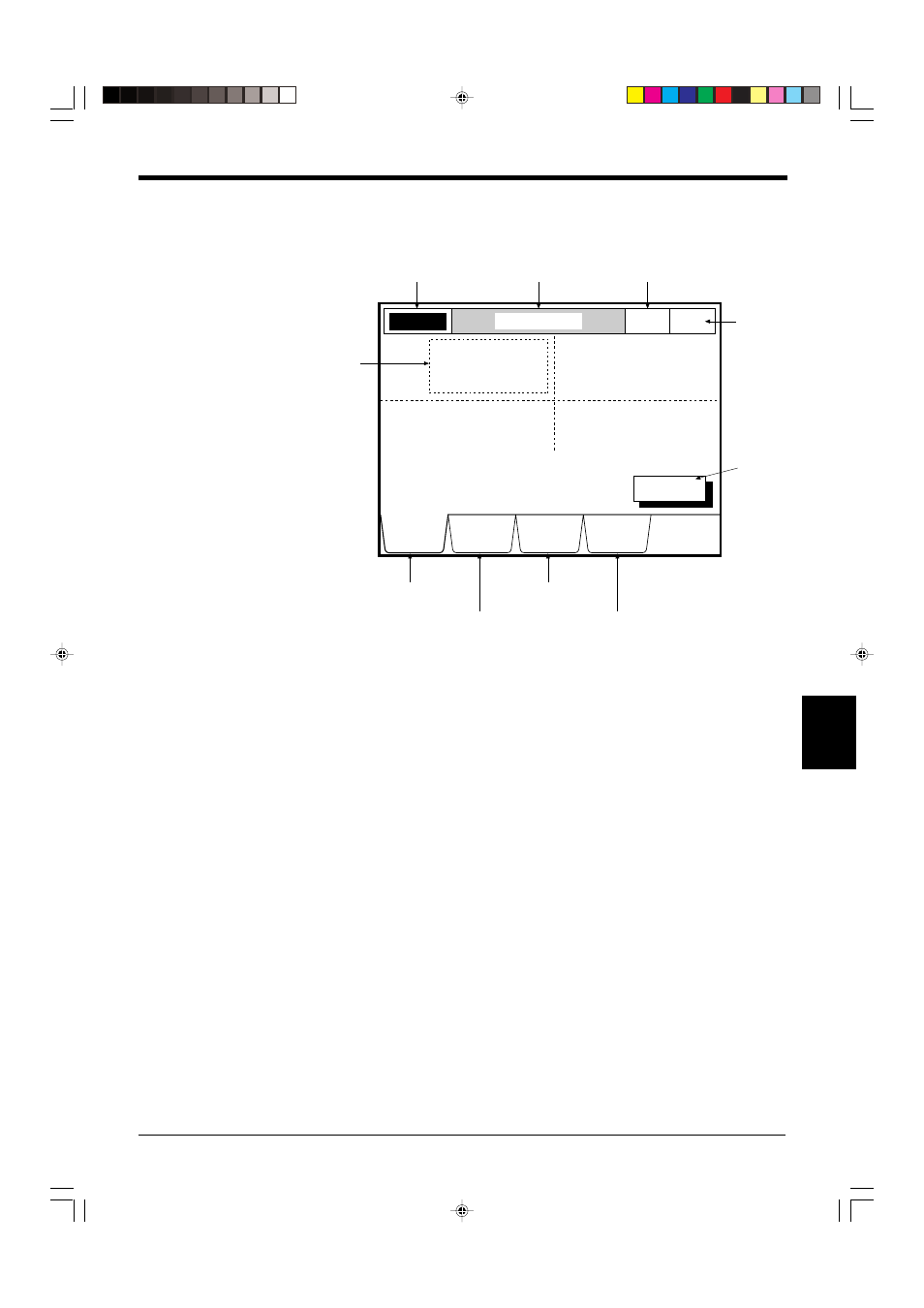

status Screen title Measuring mode
Program
No.
Screen
selection
switch
To the
OPTIONS
screen
To the SELECT
PROGRAM NO.
screen
To the LIMIT
SETUP
screen
To the
DISPLAY
DATA screen
Only the maximum and
minimum values of
scanning head 1 are
displayed.
