Chapter 7 Pitch Mode
72
7
7.3 Setting Measurement
When Pitch mode is selected, only one measurement can be performed with one
scanning head, unlike in Normal mode. Therefore, Pitch mode setup must be
performed for each scanning head.

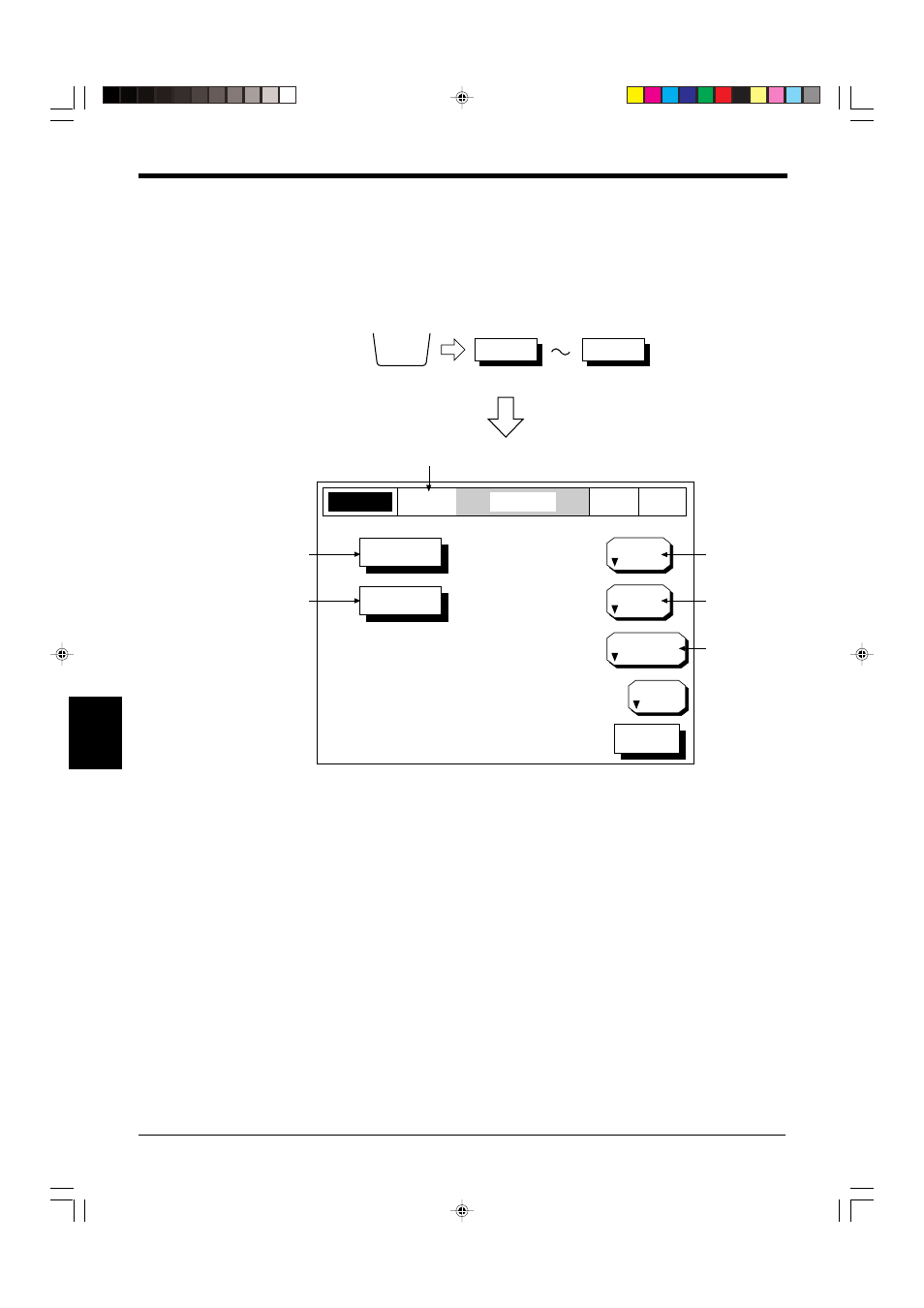

■ Setting Procedure
OPTIONS OUT1 LASER ON P. 1 PITCH
MASK1:
PITCH No.
NO. OF
PITCHES
MASKING
HEAD1 HEAD4
10
0
MASK2:
PITCH No.
0
MASK3:
PITCH No.
0
AVERAGE 8
DIGIT
SUPPRESS
NONE
MEASUR-
ING MODE
NORMAL
SELF-TIMING
INTERVAL (ms)
100
ESC
OPTIONS
Indicates the scanning head number
for which Pitch mode is being set.
Set the number
of averaging
measurements.
Set the digit
suppression
function.
Set the
measuring
mode.
Set the masking function.
Set the number of pitches.
