Chapter 6 Normal Mode
47
6

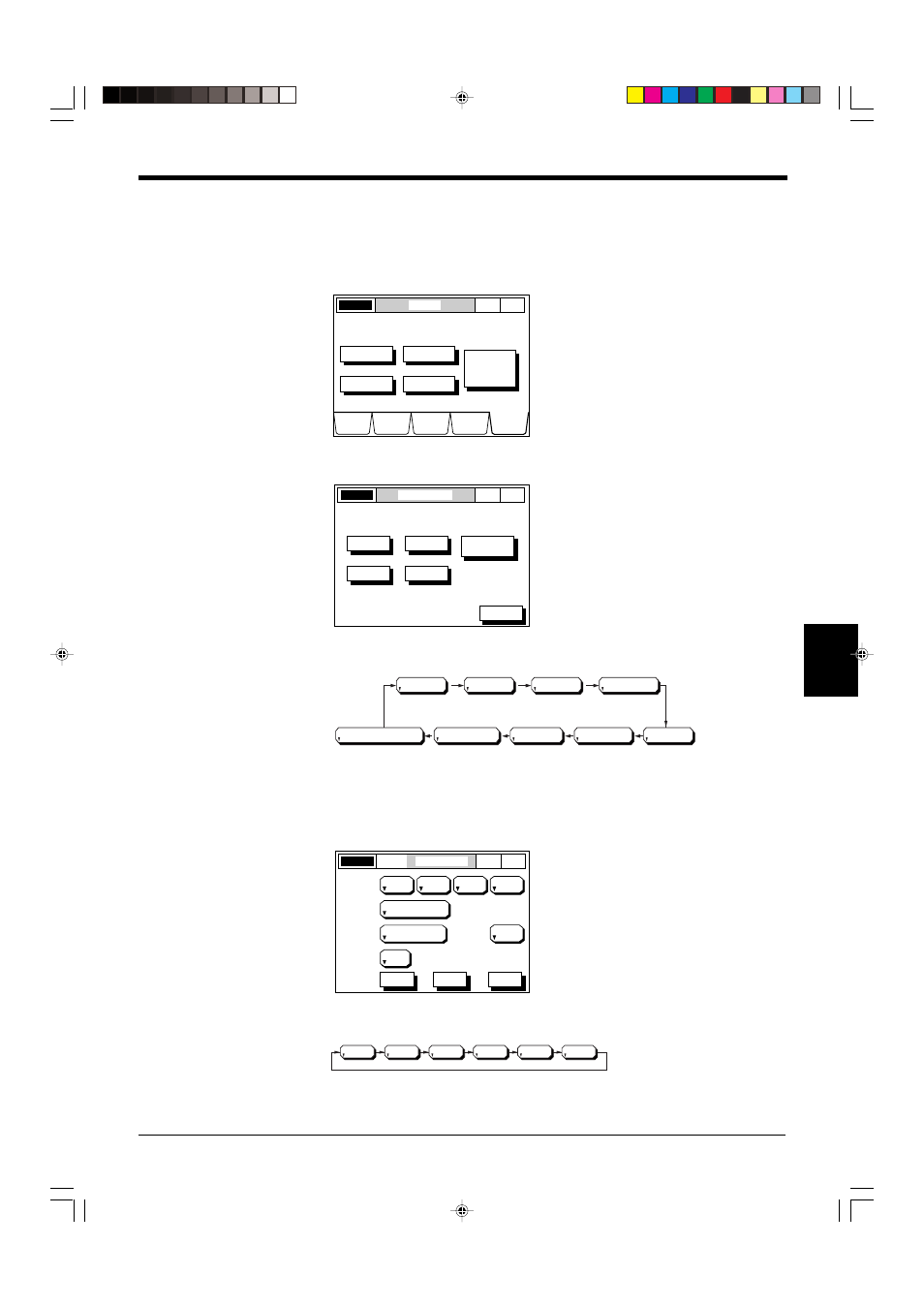

■ Setting Procedure
1. Select the OPTIONS screen.
Press the [OPTIONS] button.
2. Select the OUTPUT MODE screen.
Press the [OUTPUT] button.
Press the button corresponding to the output number for which the measuring
mode is to be set.
3. Set the measuring mode.
Press the [MEASURING MODE] button to set the measuring mode.
Every time the [MEASURING MODE] button is pressed, the indication changes
in the above order.
[When the self-timing mode is selected] [Only with DIA or SEG (m, n)]
4. Set the self-timing interval.
Press the [SELF-TIMING INTERVAL] button to set the self-timing interval.
Every time the [SELF-TIMING INTERVAL] button is pressed, the setting
changes in the following order.
