Chapter 6 Normal Mode
38
6
6
6
6
6

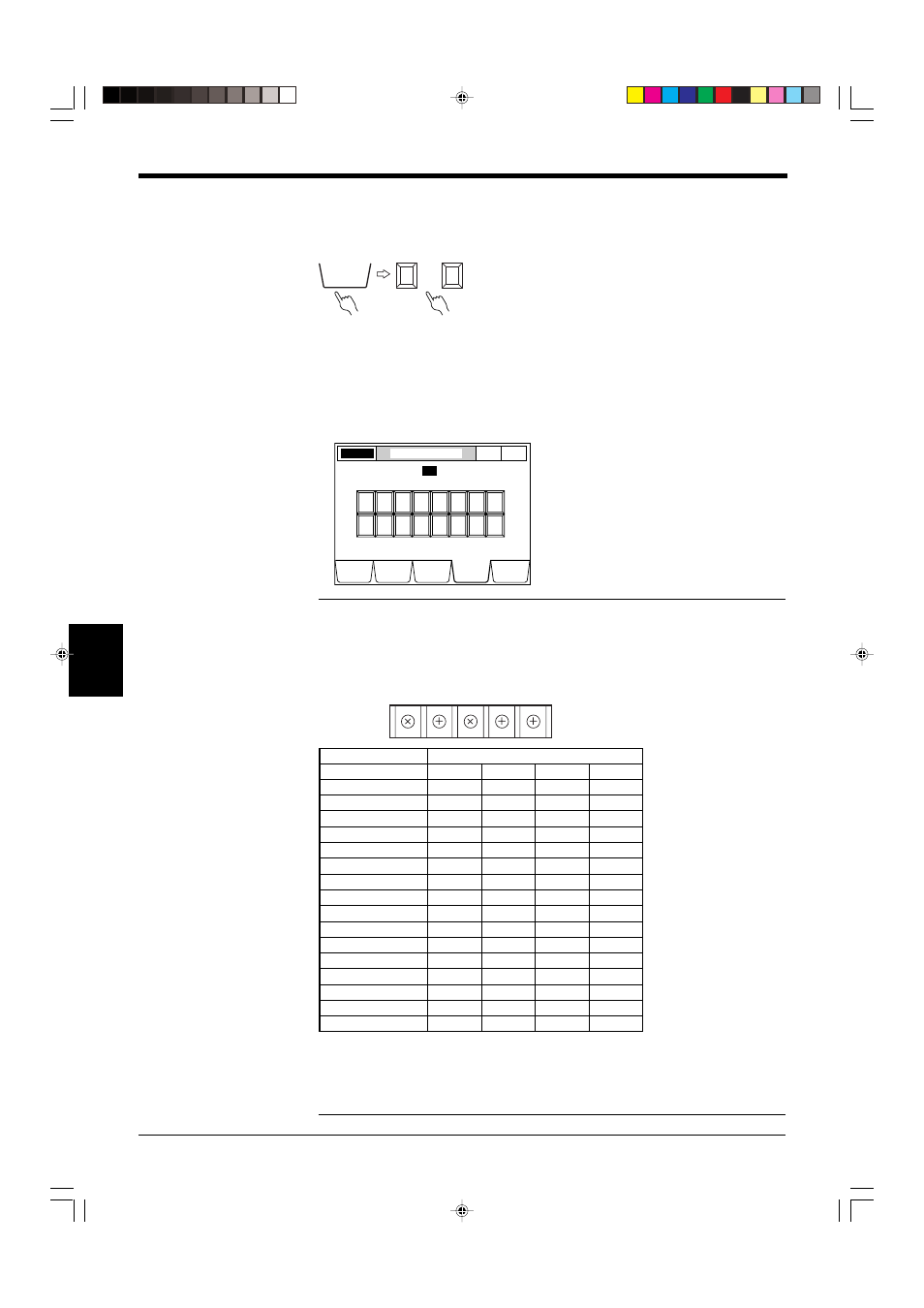

6 [PROGRAM] Program Selection Function
The LS-5000 series can store all measurement conditions as a program. Up to 16
programs can be stored and loaded easily.
■ Setting Procedure
1. Select the SELECT PROGRAM NO. screen.
Press the [PROGRAM] button.
2. Select a program number.
Press the button corresponding to the program number to be loaded.
Note 1: When the program selection method is set to the rear terminals, the
program number cannot be switched on the front panel.
➮ See p. 63.
Note 2: To switch a program number using the rear terminals, change the combi-
nation of the following four terminals and GND terminal.
ON: This terminal and the GND terminal are short-circuited.
OFF: This terminal is open.
Note 3: The system setup for the display unit (
➮ see p. 104) cannot be stored by
the program function.
Terminal No.
Program No.
P1
P2
P3
P4
1
OFF
OFF
OFF
OFF
2
ON
OFF
OFF
OFF
3
OFF
ON
OFF
OFF
4
ON
ON
OFF
OFF
5
OFF
OFF
ON
OFF
6
ON
OFF
ON
OFF
7
OFF
ON
ON
OFF
8
ON
ON
ON
OFF
9
OFF
OFF
OFF
ON
10
ON
OFF
OFF
ON
11
OFF
ON
OFF
ON
12
ON
ON
OFF
ON
13
OFF
OFF
ON
ON
14
ON
OFF
ON
ON
15
OFF
ON
ON
ON
16
ON
ON
ON
ON
P1
P2
P3
P4
GND
• • •
PROGRAM
1
16
LASER ON
SELECT PROGRAM No.
NOR
MAL
P. 1
DISPLAY
DATA
LIMIT
SETUP
PROGRAM
CALIB
OPTIONS
Selected program No.
1
5
8
7
6
4
2
3
1
13
16
15
14
12
10
11
9
