KEYENCE LK-G Series User Manual

Page 50

2-4

LK-G-M-NO2-E

2 Operations and Functions during Measurement

Measurement stops while the setting is in progress.

■

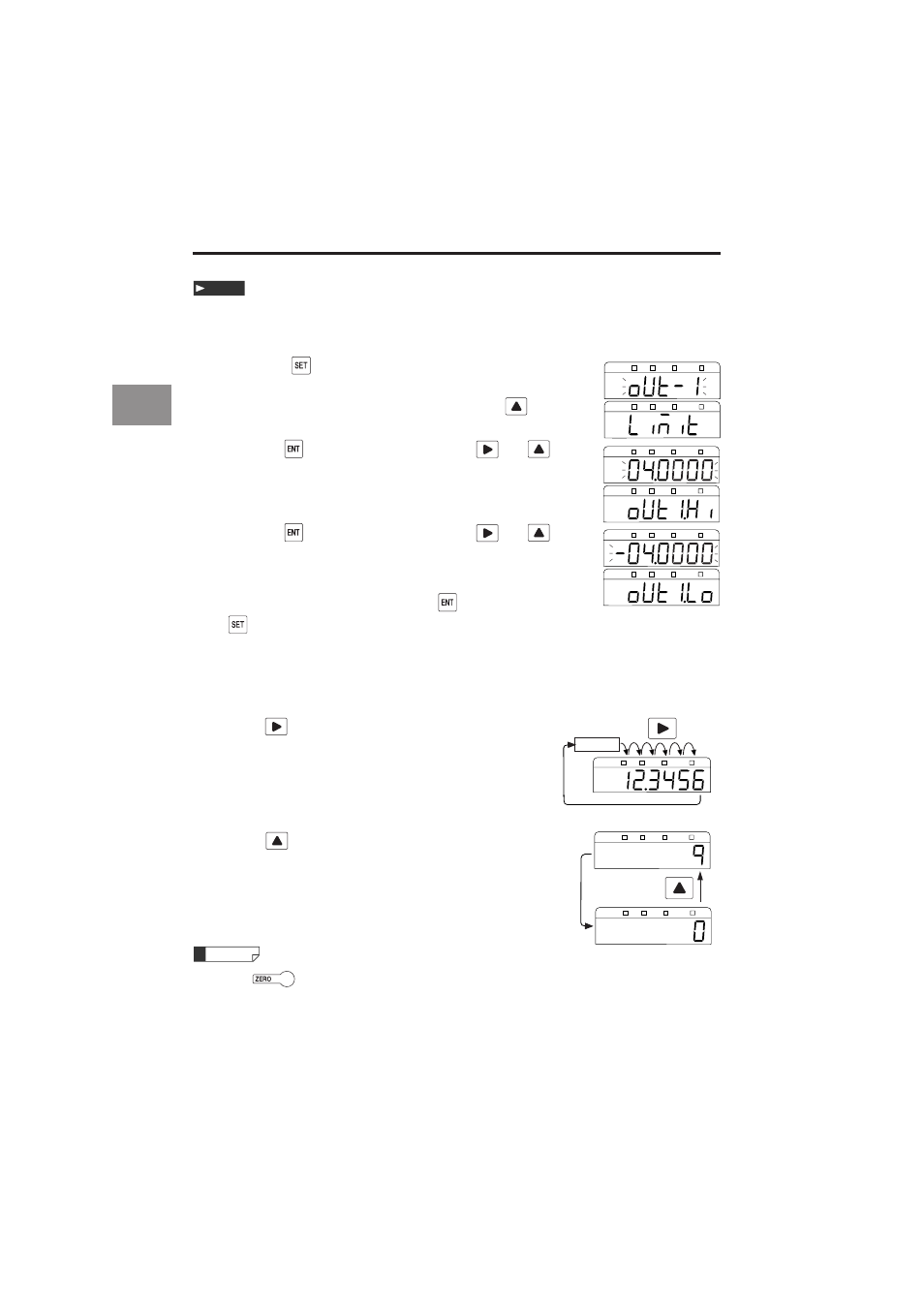

Setting Procedures for tolerance comparator values.

Press the

key.

Enters the tolerance setting mode.

For changing the OUT No. to be set, press the

key.

Press the

key, and set the value with the

and

keys.

As an example, the tolerance on the HI side of OUT1 is set to

4.0000.

Press the

key, and set the value with the

and

keys.

As an example, the tolerance on the LO side of OUT1 is set

to -4.0000.

Confirm the data by pressing the

key, and press the

key to return to the measurement state.

Setting procedure of numerical values

A numerical value can be set by the following key operations.

You can set the digit of a flashing number. When all digits are flashing, you can set symbols.

• When the

key is pressed, the digit that flashes after all

the digits flash shifts to the right. When pressed for one
second or more it shifts in higher speed.

• When the

key is pressed, the value increments.

When pressed for one second or more, the value advances
in higher speed.

When the

key is pressed for three seconds, the setting returns to the default value.

Note

OUT1

TIM

OUT2

TIM

OUT1

TIM

OUT2

TIM

OUT1

TIM

OUT2

TIM

OUT1

TIM

All digits flash

OUT1

TIM

OUT1

TIM

Reference
