KEYENCE LK-G Series User Manual

Page 31

1-11

LK-G-M-NO1-E

1 Before Use

■

LK-G85/LK-G80/LK-G87/LK-G82

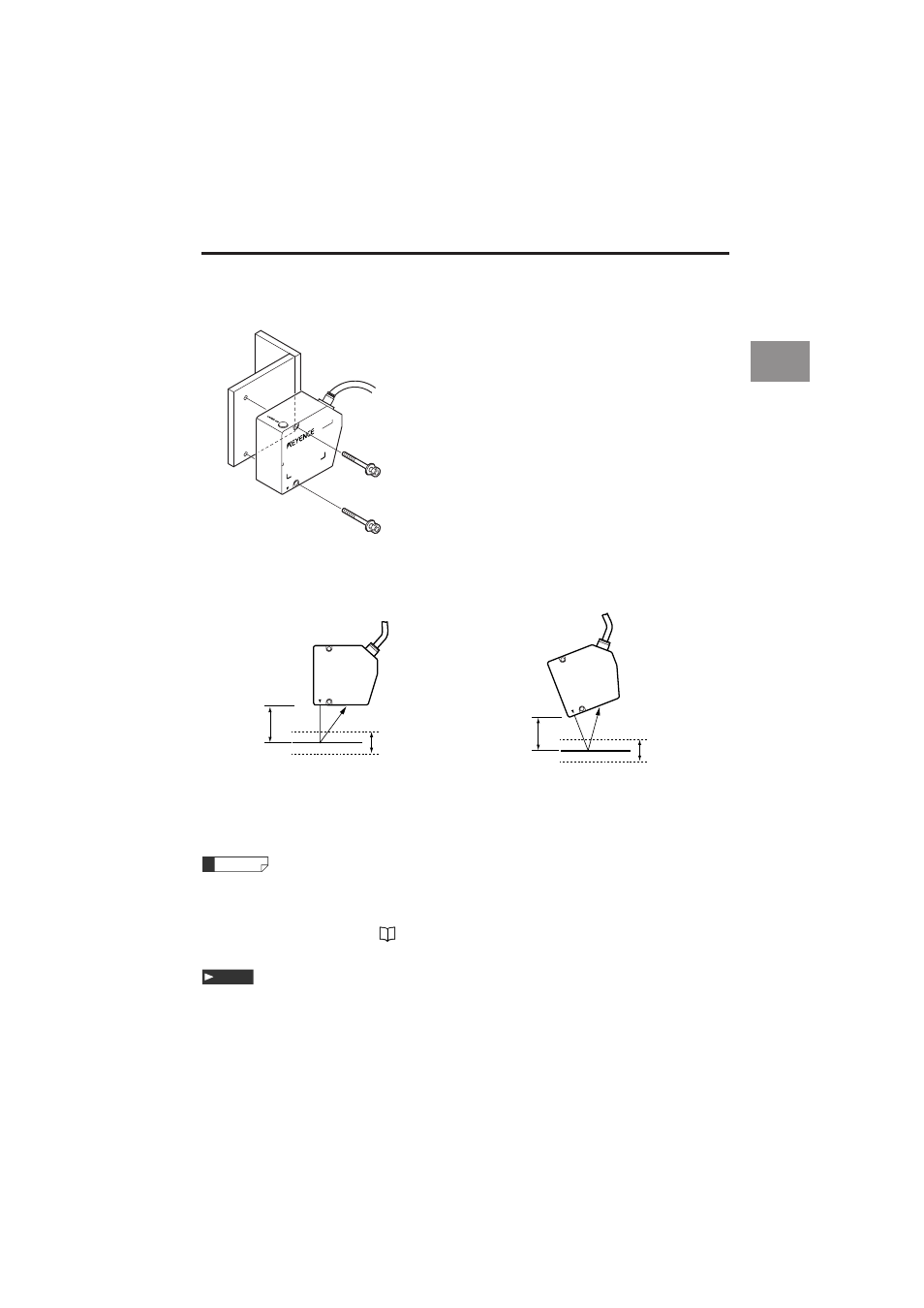

The measurement range is shown in the figure below.

* The value inside the parentheses ( ) is when the sampling rate is 20 µs. Note that the

measurement range narrows, disabling measurements at the reference position.

• The laser emission LED at both diffuse reflection and specular reflection lights in

green within ±0.75 mm of the reference position, and lights in orange in the other
positions in the measurement range.

• Select the mounting mode (

page 3-12) according to the installation conditions.

The measurement range when measuring a mirror surface or a glass surface at the time of
specular reflection setup is between +14 (NEAR side) to –8.2 mm (FAR side). When the
sampling rate is 20 µs, the value becomes +14 (NEAR side) to +8.7 mm (NEAR side).

LK-G85

M4r45 mm or more

• Installation procedure

LK-G85

• Diffuse reflection setup

• Specular reflection setup

Reference

distance

80 mm

Reference

distance

0 mm

+14mm
Measurement range
–14mm
(+8.7mm)

+15mm
Measurement range
–15 mm
(+9mm)

Reference

distance

75.2 mm

Reference

distance

0 mm

17°

Reference

Note
