1 Before Use
Separating the single unit type controller
1
Disconnect the display panel cable from the display panel connector on the
controller’s terminal panel.
Remove the display panel cable from the guide on the bottom of the controller.
2
Loosen the display panel fixing screw.
The display panel fixing screw does not drop from the display panel fixing case.
3
Remove the display panel fixing case from the controller.
4

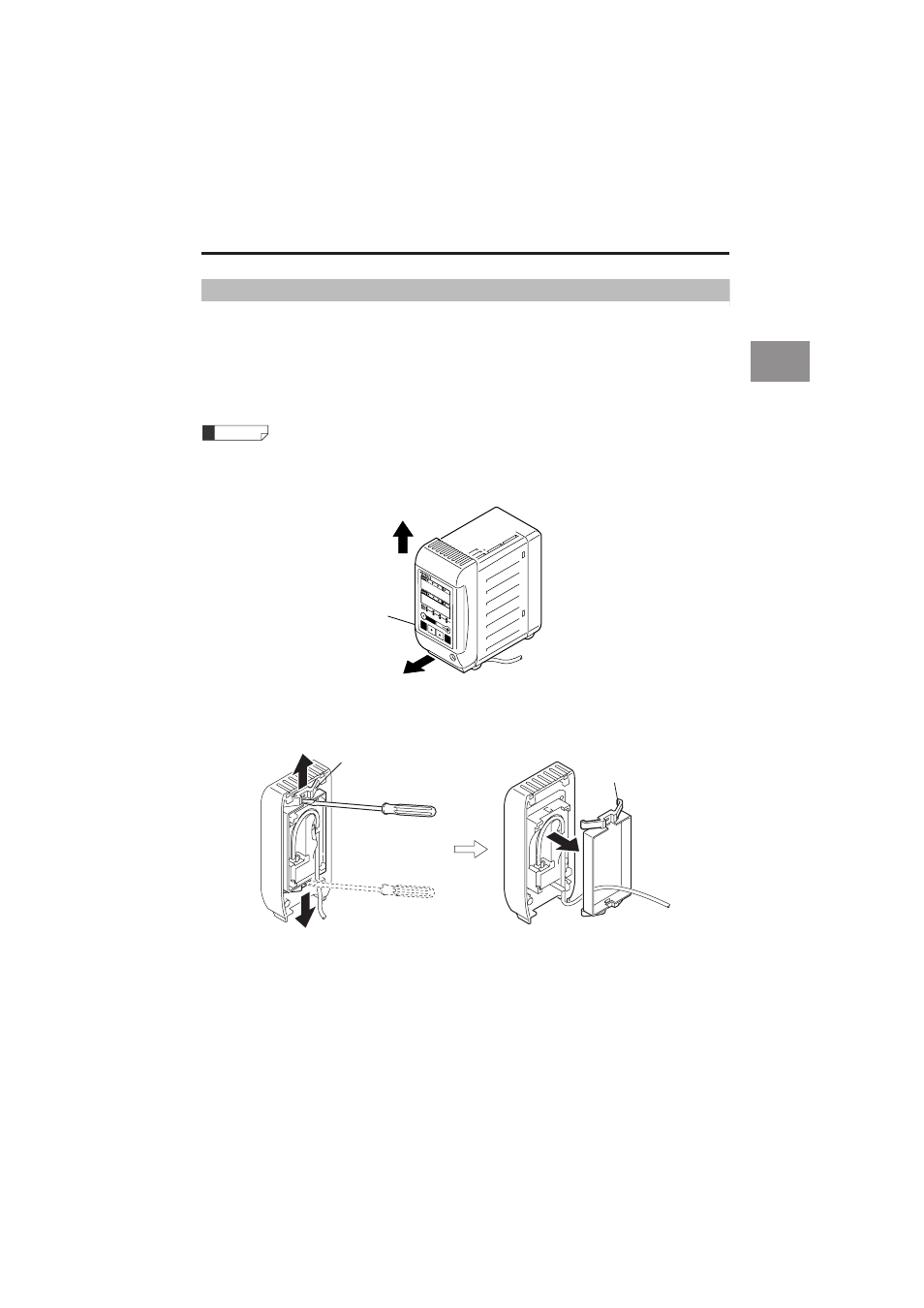

While pushing (1) and (2) outward in this order, push the display panel to
remove the panel attachment ring.
5
Remove the display panel from the display panel fixing case.
Reference
(1)
(2)
Remove the
display panel
fixing case in
the directions
of the arrows.
(3)
(1)
(2)
Panel attachment ring
Panel attachment
ring
