2 Operations and Functions during Measurement

Switching the Measurement Value Displays

This section describes how to switch the measurement value display contents.

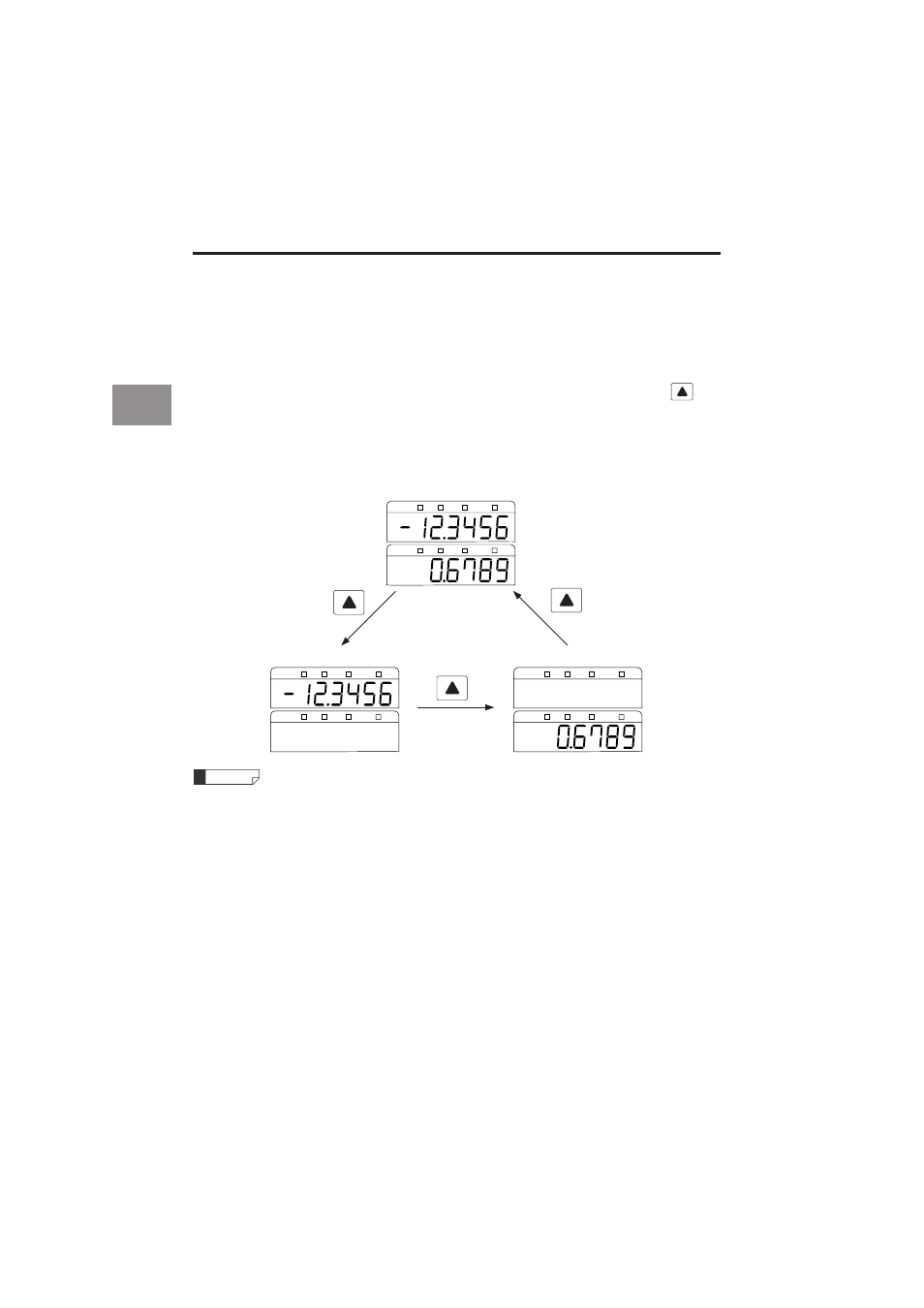

During measurement, the following three types of display can be switched. Press the

key

to switch displays.

• OUT1 signal display
• OUT2 signal display
• OUT1/OUT2 dual display

The display type is retained for every program No.

OUT1

HI

GO

LO

HI

GO

LO

TIM

OUT2

TIM

OUT1

HI

GO

LO

HI

GO

LO

TIM

OUT2

TIM

OUT1

HI

GO

LO

HI

GO

LO

TIM

OUT2

TIM

Displays OUT1 and OUT2 at the same time (default)

Displays OUT1 only

Displays OUT2 only

Reference
