4 Input/Output Terminals

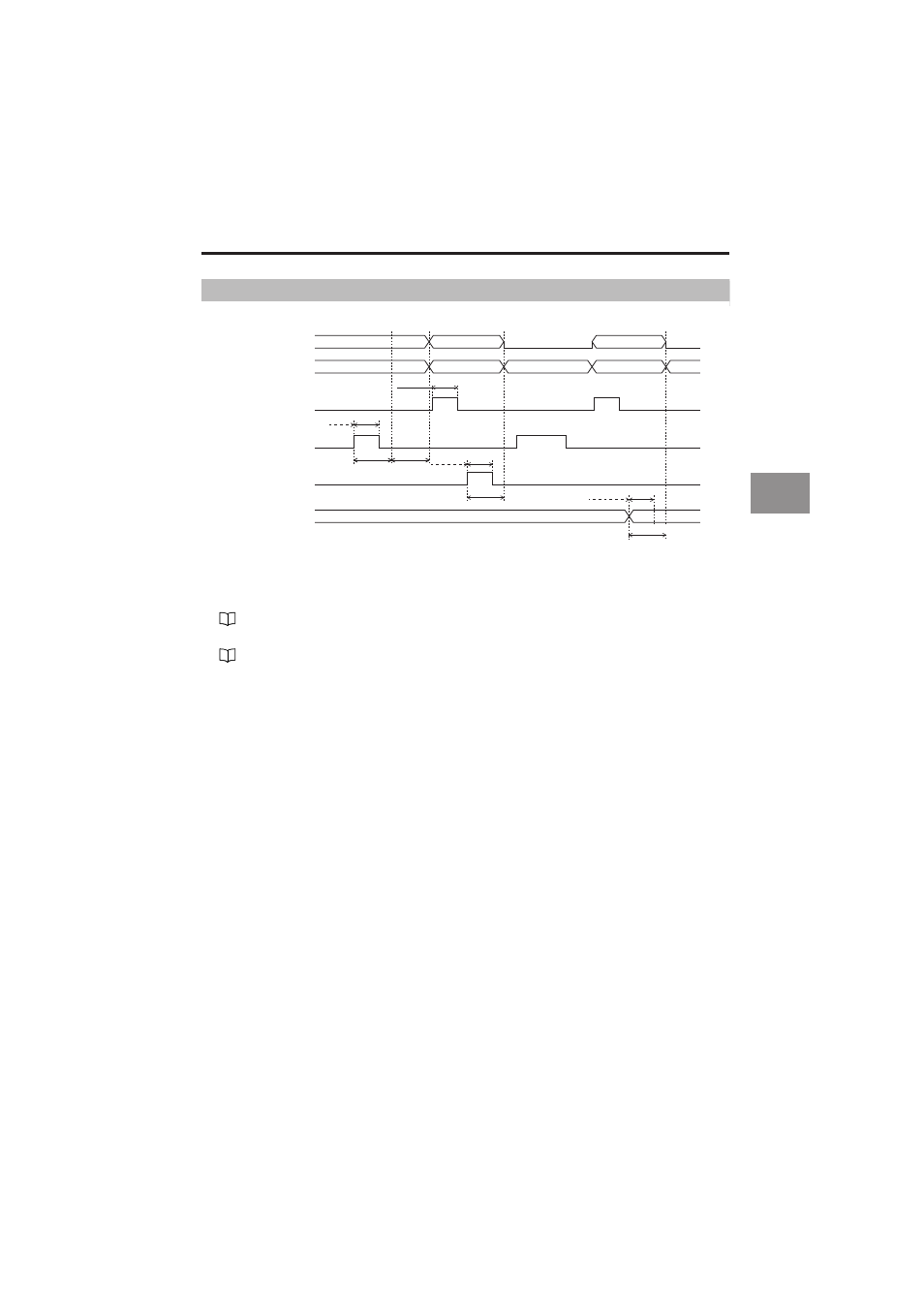

Sample hold (trigger 2)
• The measurement value is determined after the sampling period (T4) has elapsed by using the tim-
ing input ON as a trigger.
• The minimum input time (T1), input response time (T2), sampling period (T4), and program No.
change time (T7) vary depending on the settings.
• The STROBE time (T3) can be changed.
• Auto-zero is canceled when the ZERO input is turned on for two seconds or more.
• If you turn on the RESET input or the ZERO input during the sampling period, the sampling stops
and the comparator standby state is established.
Refer to page 4-17.
Refer to page 3-43.
Comparator output
ON
OFF
ON
OFF
ON
OFF
ON
OFF
ON
OFF
ON
OFF
Binary output
STROBE output
TIMING input
RESET/
ZERO input
P1 to P3 inputs
0.2ms
Min MinT1
MinT1 MinT1
T1
MaxT2
MaxT2
MaxT7
MinT1 Min T1
period (T4)
Sampling
T3
