Clutch – Cub Cadet 8404 User Manual
Page 96
CHAPTER 3 8354/8404
3-8
D615-W02 May-2003
615W310A
2. CLUTCH

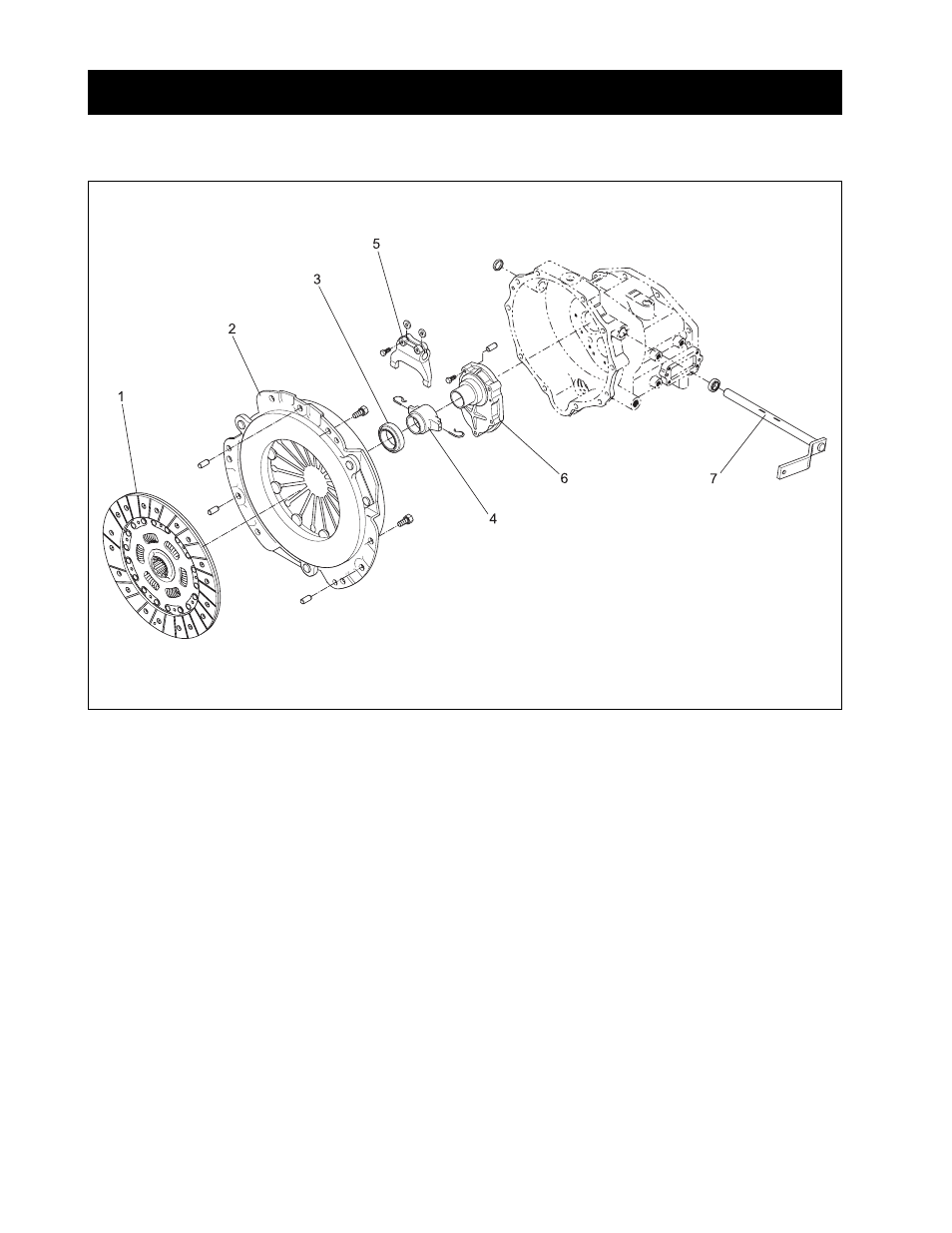

2.1 CHARACTERISTICS
(1) Clutch Disc Assembly
(2) Clutch Cover Assembly
(3) Release Bearing
(4) Clutch Release Hub
•
Independent PTO method clutch are adapted enable to control the power of Running and the PTO system
independently.
•
Running Clutch: Is a dry single plate clutch. Depress clutch pedal to disconnect power of running system.
•
PTO Clutch: Is a wet multi plate clutch. Control the PTO switch to connect and disconnect power of the PTO.
(5) Clutch Release Fork
(6) Propulsion Shaft Case
(7) Main Clutch Lever
