CHAPTER 4 8354/8404
4-52 D615-W02 May-2003
615W496A

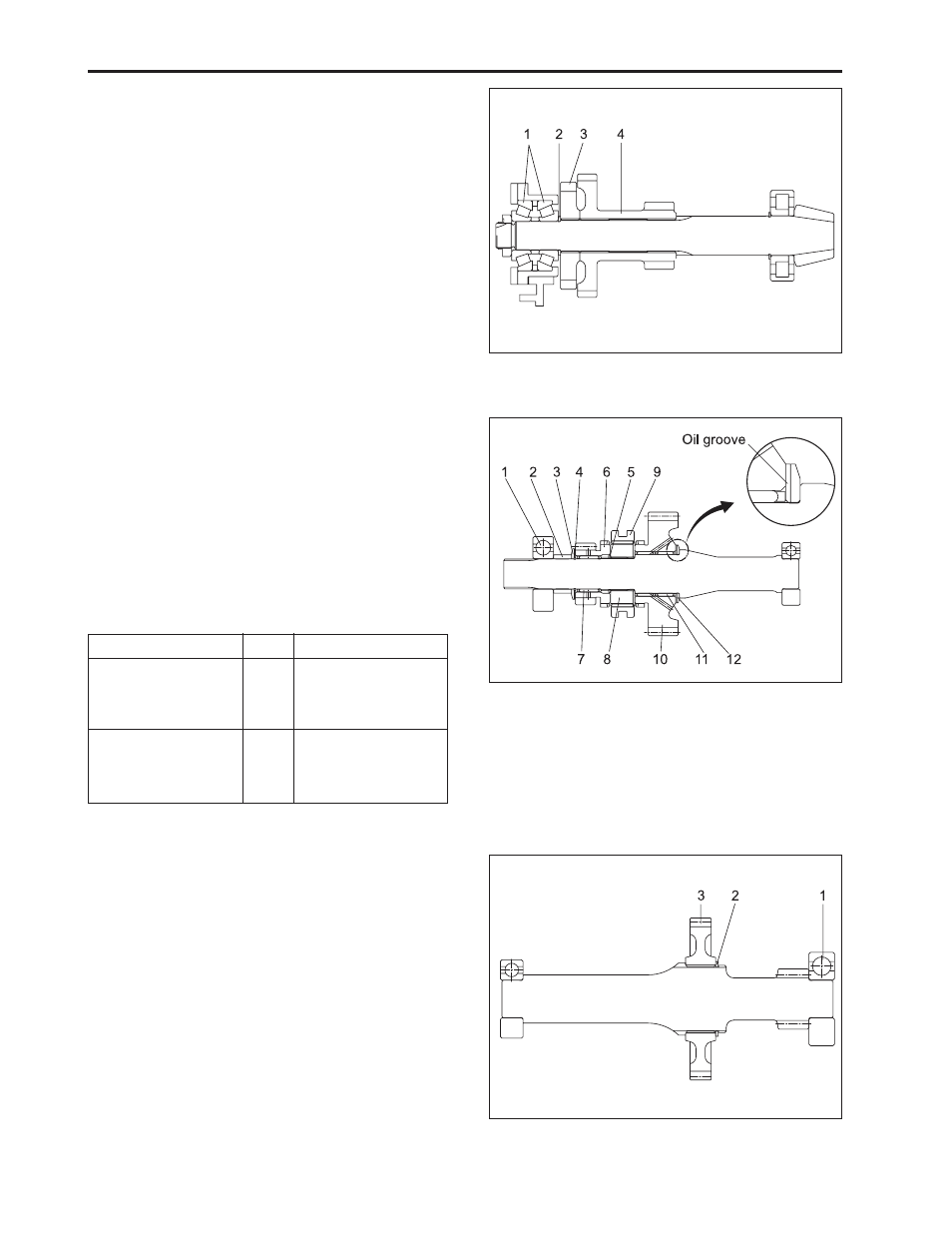

f. Sixth Stage (Disassembly of Spiral bevel
pinion shaft)
1. Pull out taper roller bearing (1) using bearing puller
and disassemble spacer (2), 25 spur gear (3), and
42-17 gear (4).
(When reassembling)
• Take care of assembly direction of 25 spur gear.
Side oil groove should be toward needle bearing.
(1) Taper Roller Bearing (3) 25 Spur Gear
(2) Spacer (4) 42-17 Gear
615W499A
615W498A
(1) Ball Bearing (7) Needle Bearing
(2) Spacer (8) Spline Boss
(3) Thrust Collar (9) Shift
(4) Snap Ring (10) 32 spur Gear
(5) Snap Ring (11) Needle Bearing
(6) 18 Spur Gear (12) Thrust Collar
g. Seventh Stage (Disassembly of Aux.
Transmission Shaft)
1. Using bearing puller, pull out bearing (1) and dis-
assemble spacer (2) and thrust collar (3).
2. Loosen snap ring (4), (5) for shaft and disassemble
18 spur gear (6) and needle bearing (7), spline boss
(8) and shift (9), 32 spur gear (10) and needle bear-
ing (11) and thrust collar (12).
(When reassembling)
• Oil groove of thrust collar should be toward gear.
Spec. Tightening Torque
Lock nut
Tightening bolt
M22
M10
147 ~ 196 N·m
15 ~ 20 kgf·m
108 ~ 145 lbf·ft
48.0 ~ 55.9 N·m
4.9 ~ 5.7 kgf·m
35.5 ~ 41.2 lbf·ft
Sect.
h. Eighth Stage (Disconnection of Creep
Speed Shaft)
1. Remove the bearing (1) using bearing puller.
2. Remove the snap ring (2) and disconnect the 41
spur gear (3).
(1) Ball Bearing (2) Snap Ring
(3) 41 Spur gear
