d. Check of Flywheel and Clutch Pressure
Plate
1. Check to see if the flywheel and clutch pressure
plate are faulty or scored.
2. If a dent or score is found then replace it.

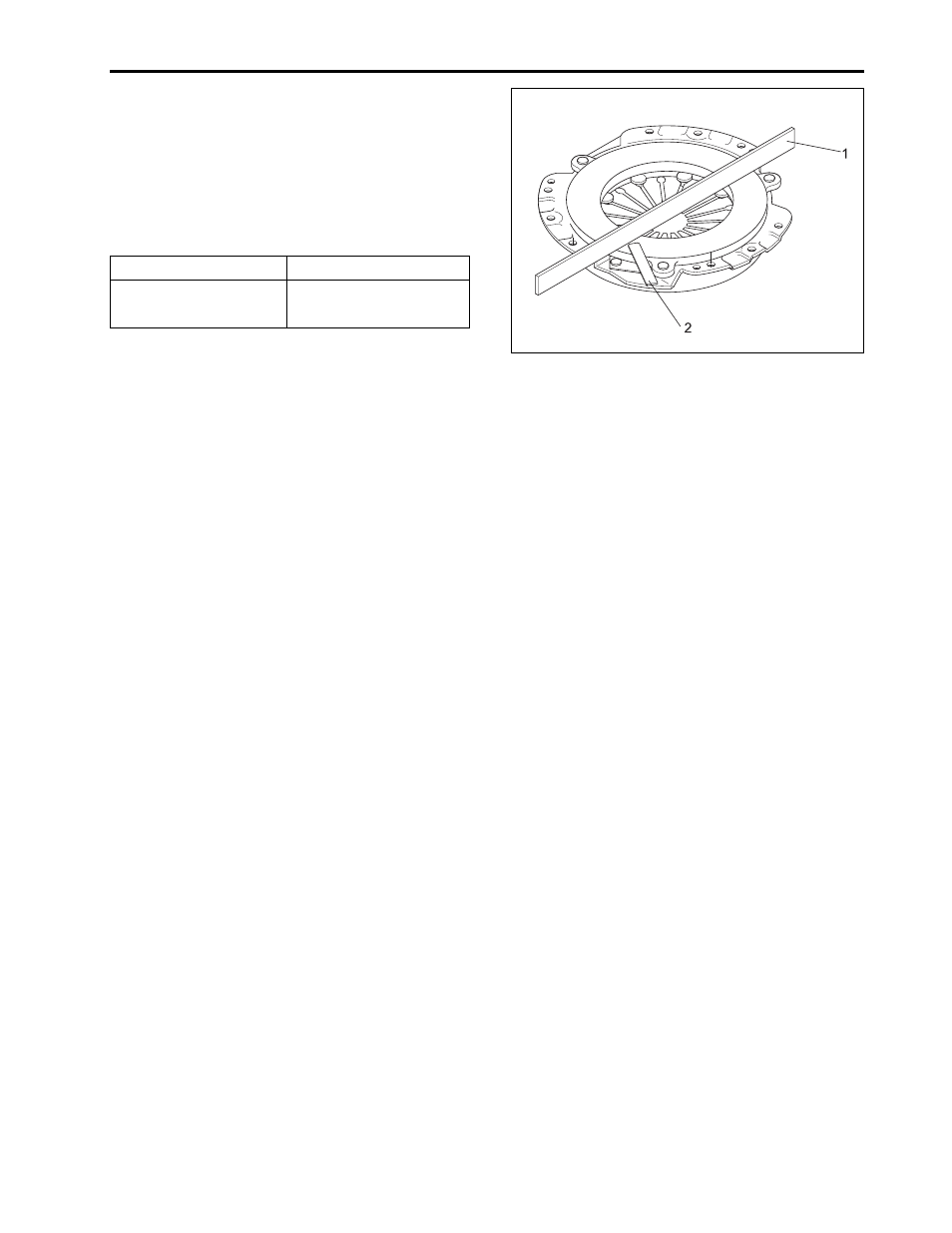

3. Put a straight rule on clutch pressure plate and
check the flatness using a gab gauge, if it exceeds
the allowable limit, replace it.
Sct.
Fatness of clutch
pressure plate
Allowable Limit
0.2 mm
0.008 in.
(1) Straight Rule
(2) Gab Gauge
