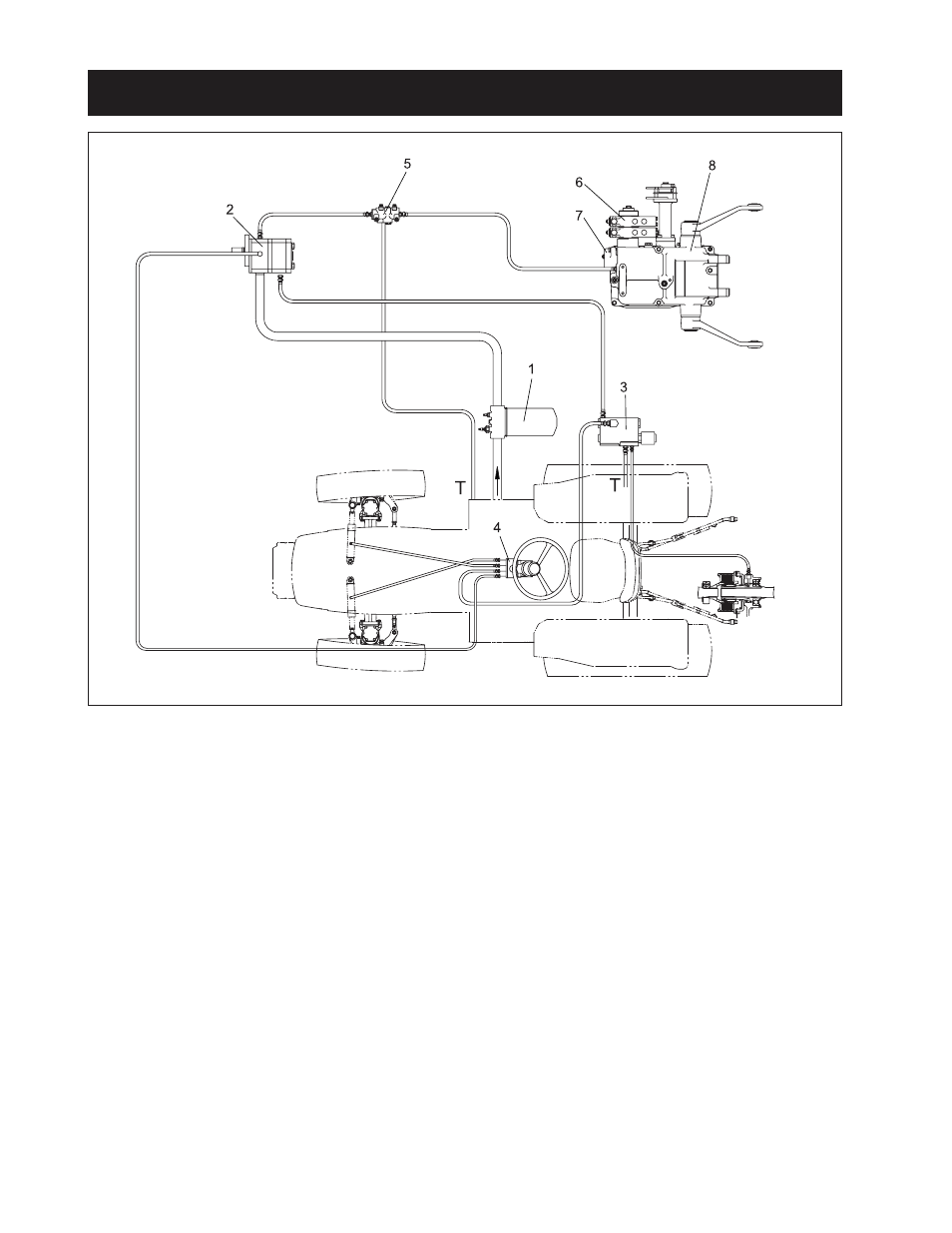

The hydraulic system consists of major components
as shown in the above figure. This system has the
following three functions.
1. For elevating, and descending operation of working
machine connected with 3-point hitch, three appli-
cable controls (position control, Draft control and
Mixed control) are provided by control valve and link-
age installed at body of the hydraulic cylinder.
2. Hydraulic extraction of the hydraulic block for op-
eration of hydraulic system in working machine.
3. For hydraulic working machine, hydraulic extraction
through quick speed coupler installed with aux. con-
trol valve assembly.
(1) Hydraulic Filter
(2) Hydraulic Pump
(3) Modulating Valve
(4) Power Steering Unit
(5) Hydraulic Block
(6) Aux. Control Valve
(7) MLS(Control) Valve
(8) Power Lift Assembly
2. STRUCTURE
