CHAPTER 4 8354/8404
4-12
D615-W02 May-2003
615W417A

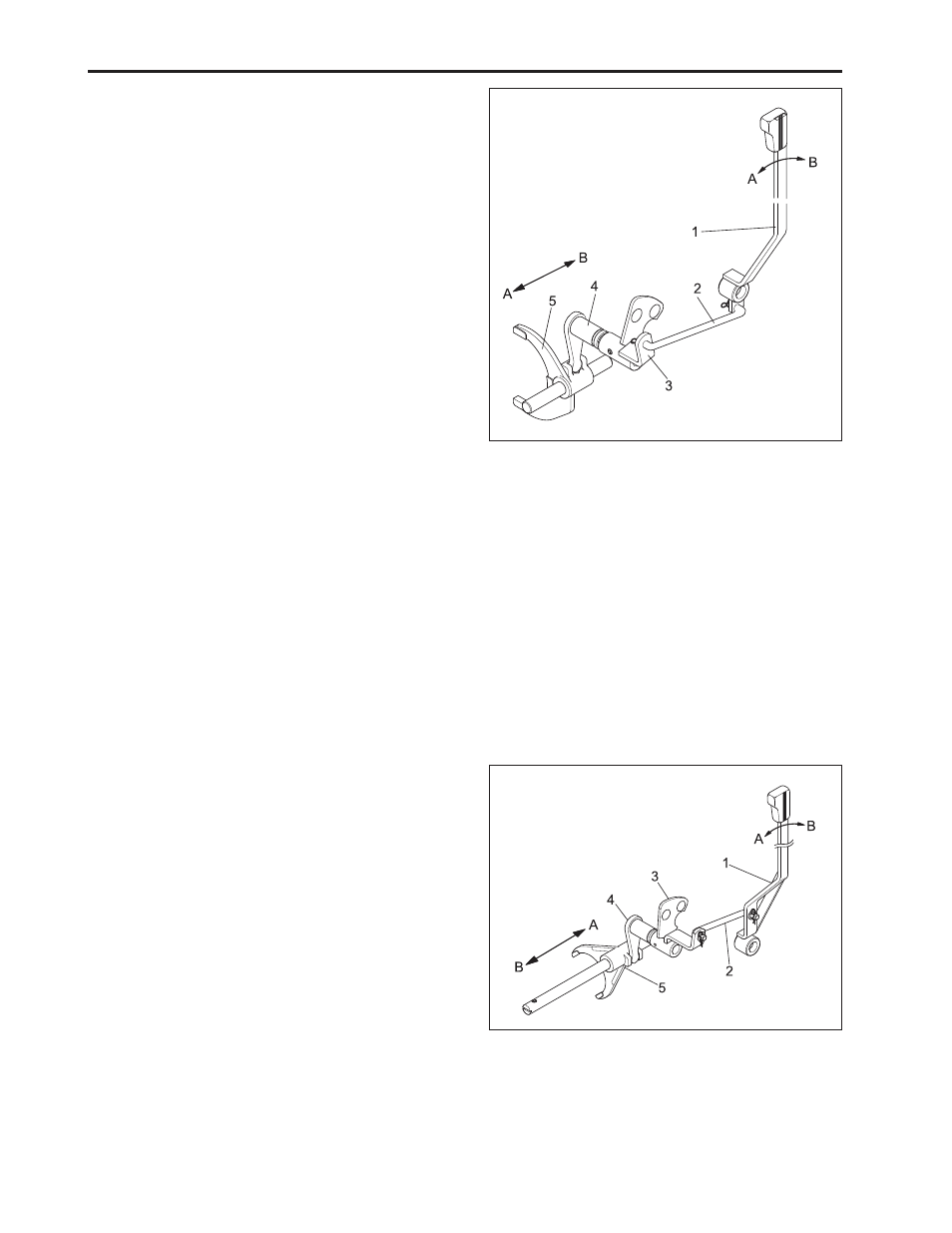

3.5 CREEPER SPEED
Model:(IF APPLICABLE )
• Creep speed lever (1) is located at left of driver’s
seat and is connected to the creep speed rod (2),
creep speed lever 1 (3), transmission arm (4), and
transmission fork (5).
• If pushing creep speed lever forward, [Low Speed]
transmission shift will be done and if pulling back-
ward, [High Speed] transmission shift done.
(1) Creep Speed Lever (4) Transmission Arm
(2) Creep Speed Rod (5) Transmission Fork
(3) Creep Speed Lever 1
[A] Low [B] High
615W416A
3.4 SHIFT
• 8354 and 8404 models employs 1st stage fixed
type and enables manual or auto operation by
means of a switch.
3.3 HI-LO SHIFT
•
Aux. transmission shift lever (1) is located towards
the left of the driver’s seat and is connected to Hi-
Lo shift rod (2), Hi-Lo shift lever 1 (3), Transmis-
sion arm (4), and the Transmission fork (5).
•
If pushing Hi-Lo shift lever forward, [Low Speed]
transmission shift will be done and if pulling back-
ward, [High Speed] transmission shift done.
(1) Aux. Transmission Shift Lever
(2) Aux. Transmission Rod
(3) Aux. Transmission Shift Lever 1
(4) Transmission Arm (Aux. Transmission)
(5) Transmission Fork (Aux. Transmission)
[A] Low
[B] High
