FRONT AXLE
7-11 D615-W02 May-2003
615W713A
615W714A

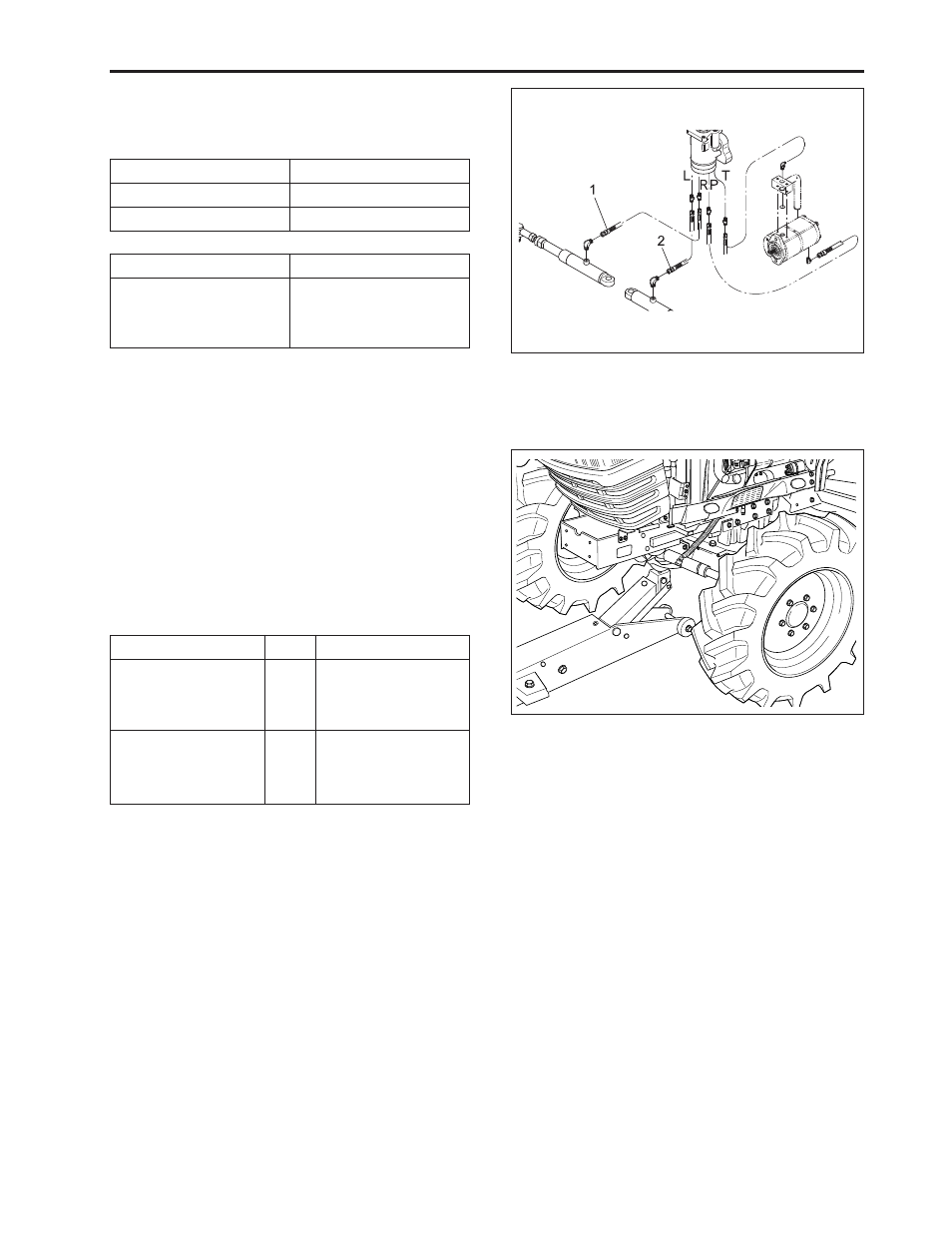

D. Fourth Stage (Disconnection of Front Axle
Assembly)
1. Support the lower of engine with a hydraulic jack.
2. Disengage the front bracket and rear bracket at-
taching bolt.
3. Disconnect front axle assembly together with front
wheel.
(When reassembling)
Sect. Spec. Tightening torque
Front bracket and
rear bracket
attaching bolt
Front wheel
attaching nut
M22
(M14)
M10
(M16)
123 ~ 147 N·m
12.6 ~ 15.0 kgf·m
91.2 ~ 108 lbf·ft
166.6 ~ 186.2 N·m
17.0 ~ 19.0 kgf·m
123.0 ~ 137.5 lbf·ft
C. Third Stage (Disconnection of Steering
Cylinder Hydraulic Hose)
1. Loosen steering hydraulic hose (1) and (2).
(1) Steering Hose Assembly R
(2) Steering Hose Assembly L
(When reassembling)
• When connecting hydraulic hose, assemble it prop-
erly ensuring its color and connection position.
Hose Connection position
Steering hose assembly R
Steering hose assembly L
Right of steering cylinder
Left of steering cylinder
Sect. Tightening torque
Steering hose assembly
Connection torque
46.6 ~ 50.9 N·m
4.8 ~ 5.2 kgf·m
34.4 ~ 37.6 lbf·ft
