Cub Cadet 8404 User Manual
Page 197
FRONT AXLE
7-9
D615-W03 May-2003
615W708A

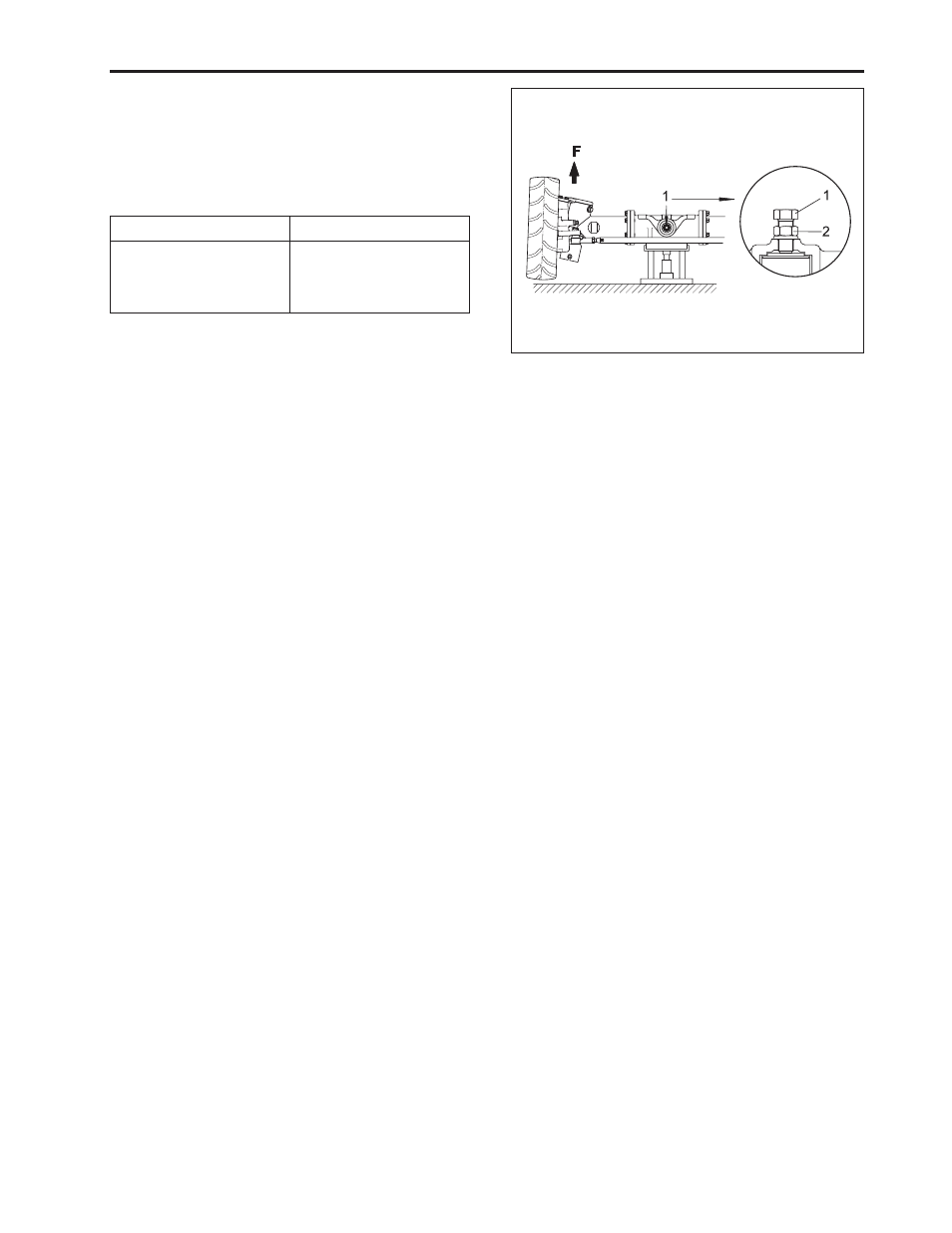

(1) Adjusting Bolt
(2) Nut
C. Third Stage (Adjustment of Front Axle
Rocking Force)
1. Raise the front axle and make sure both tires are off
the ground.
2. Using the front bracket adjusting bolt, check for rock-
ing force and then tighten with nut.
Sect.
Specified value
Rocking force (F)
49.0 ~ 117.6 N·m
5.0 ~ 12.0 kgf·m
36.2 ~ 86.8 lbf·ft
