Cub Cadet 8404 User Manual
Page 171
REAR AXLE
5-7
D615-W02 May-2003
615W513A
615W514A

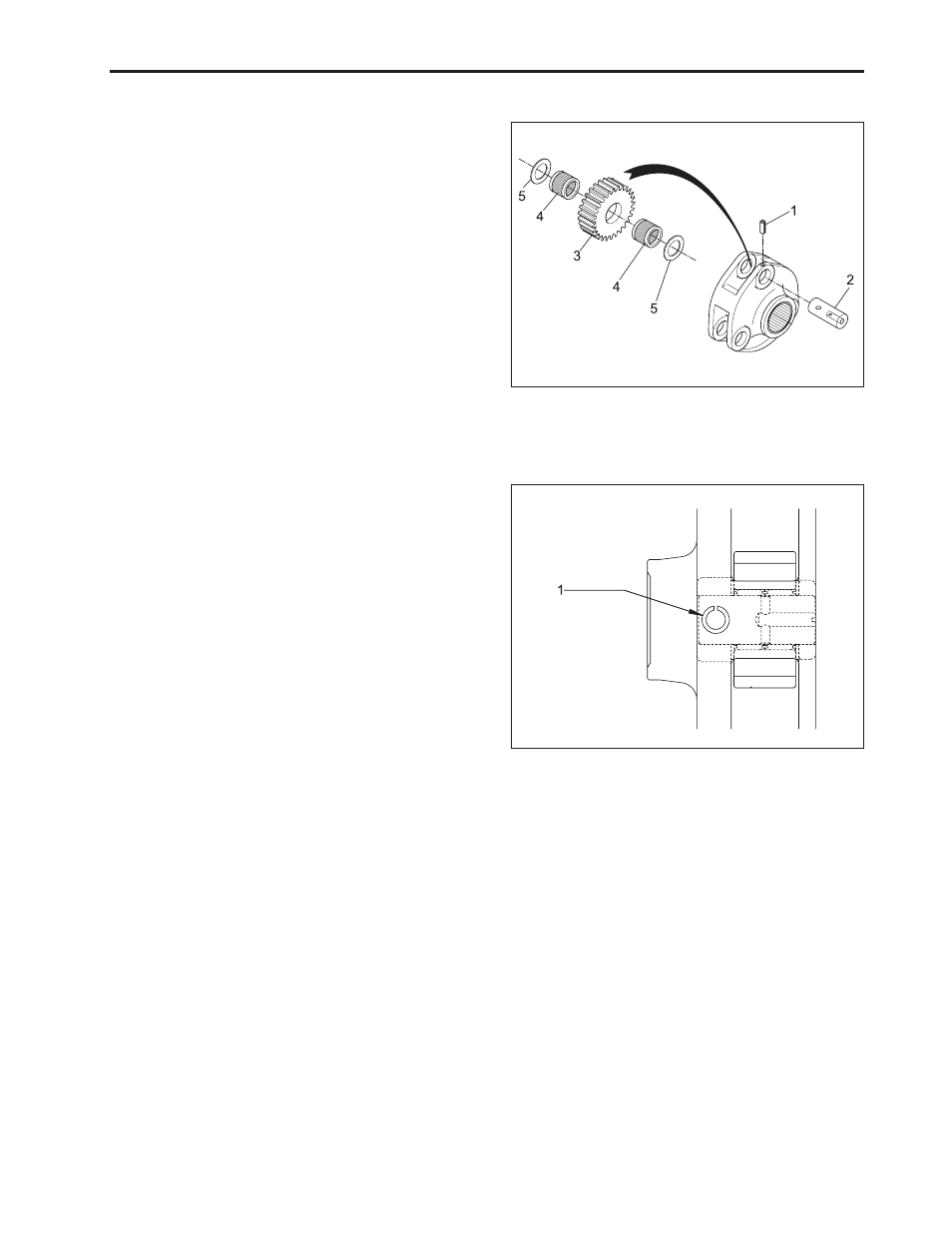

1. Insert spring pin (1) into planetary gear shaft (2).
2. When pulling out the planetary gear shaft (2), re-
move the planetary gear (3), needle bearing (4) and
thrust collar (5).
3. Pull out the spring pin (1) from the planetary gear
shaft (2).
(When reassembling)
•
The spring pin should be assembled with forked
portion toward vertical direction of shaft.
C. Third Stage (Disassembly of Planetary Gear)
(1) Spring Pin
(4) Needle Bearing
(2) Planetary Gear Shaft
(5) Thrust Collar
(3) Planetary Gear
(1) Spring Pin
