Page 107
TRANSMISSION
4-3
D615-W03 May-2003
615W401A
Forward: 8th Stage, Reversing: 8th Stage
(*:Option,Forward: 16th Stage, Reversing: 16th Stage)
1. STRUCTURE
Sect.
Transmission
method
Transmission
stage
Main Shift
Synchro mesh
4th Stage
Shuttle
Synchro mesh
Forward/
Reversing
Hi-Lo Shift
Constant mesh
2nd Stage
(Low/High Speed)
Creep Speed (*)
Constant mesh
2nd Stage
(Low/High Speed)
PTO
Fixed
1st Stage

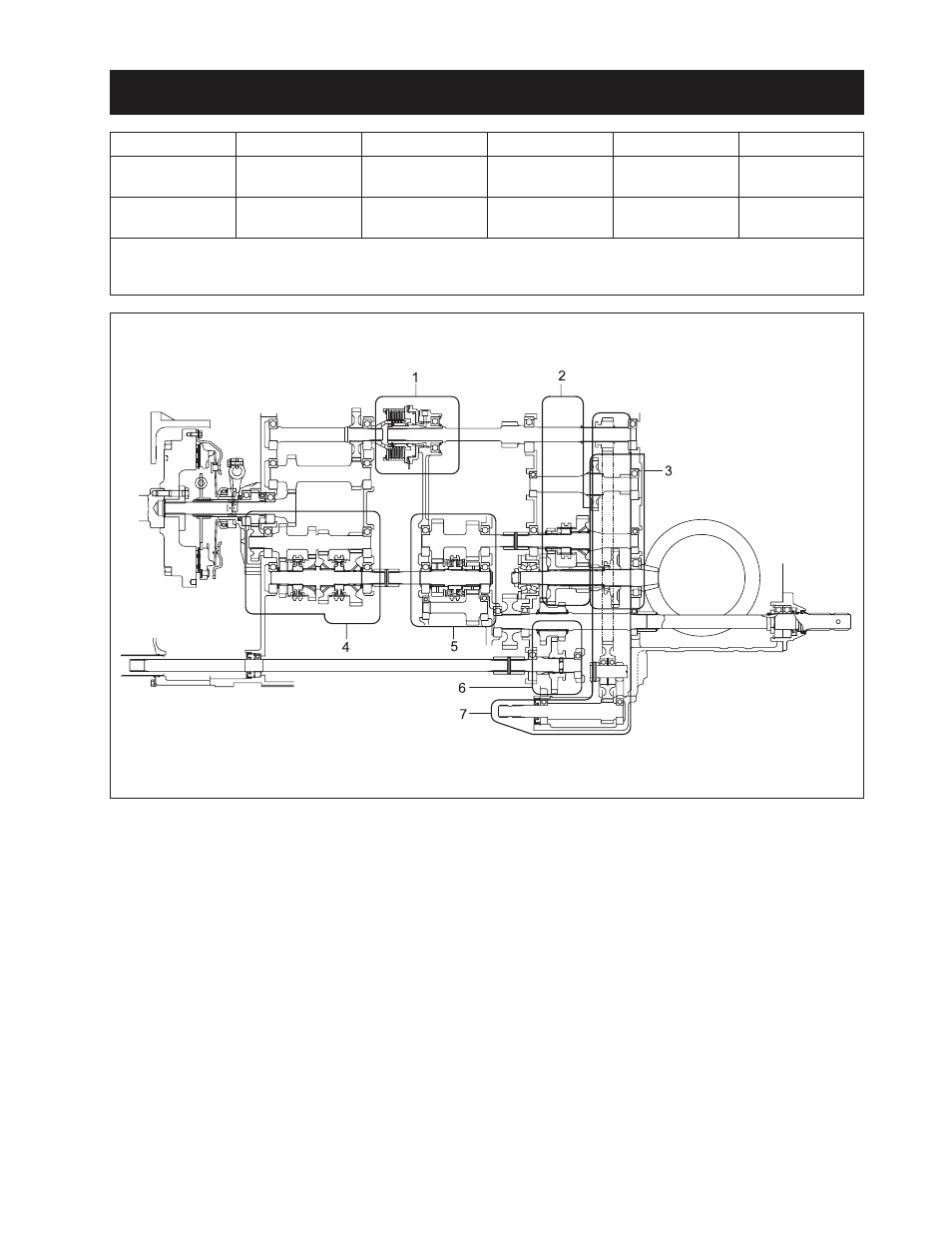

(1) Clutch Pack for PTO
(2) Hi-Low Shift Section
(3) Creep Shift Section(IF APPLICABLE)
(4) Main Gear Shift Section
(5) Shuttle Shift Section
(6) Front Wheel Drive Shift Section
(7) MID PTO Section
