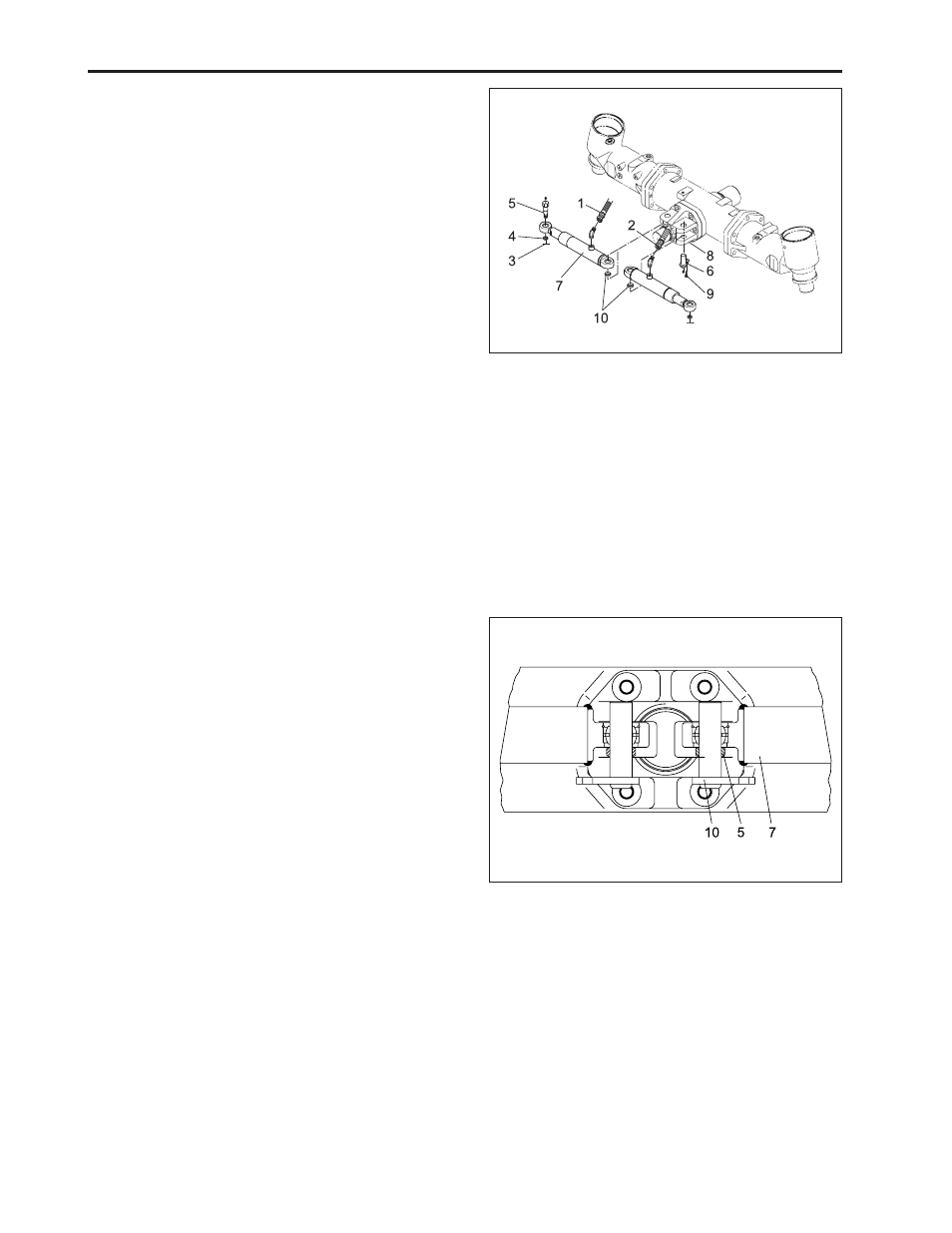

(5) Steering Cylinder Assembly
(7) Support Pin
(10) Spacer Barrel
(When reassembling)
•
When attaching steering cylinder with center pin,
make sure assembly position of spacer barrel (10)
is correct (See the following figure).
615W842A
(1) Steering Hose Assembly R
(2) Steering Hose Assembly L
(3) Split Pin
(4) Nut
(5) Support Pin
(6) Support Pin
(7) Steering Cylinder Assembly
(8) Center Pin
(9) Bolt
(10) Nut
B. Disassembly, Assembly
a. Disconnection of Steering Cylinder Assembly
•
Disconnect steering hose assembly (1) and (2).
•
Pull out split pin (3) and disengage nut (4).
•
With tapping the end of support pin (5) using plastic
hammer, pull out support pin from front axle case.
•
Disengage pin (6) locking bolt (9) and pull out pin
from center pin (8).
•
Disconnect steering cylinder assembly (7).
