CHAPTER 6 8354/8404
6-12
D615-W02 May-2003
615W615A
615W616A

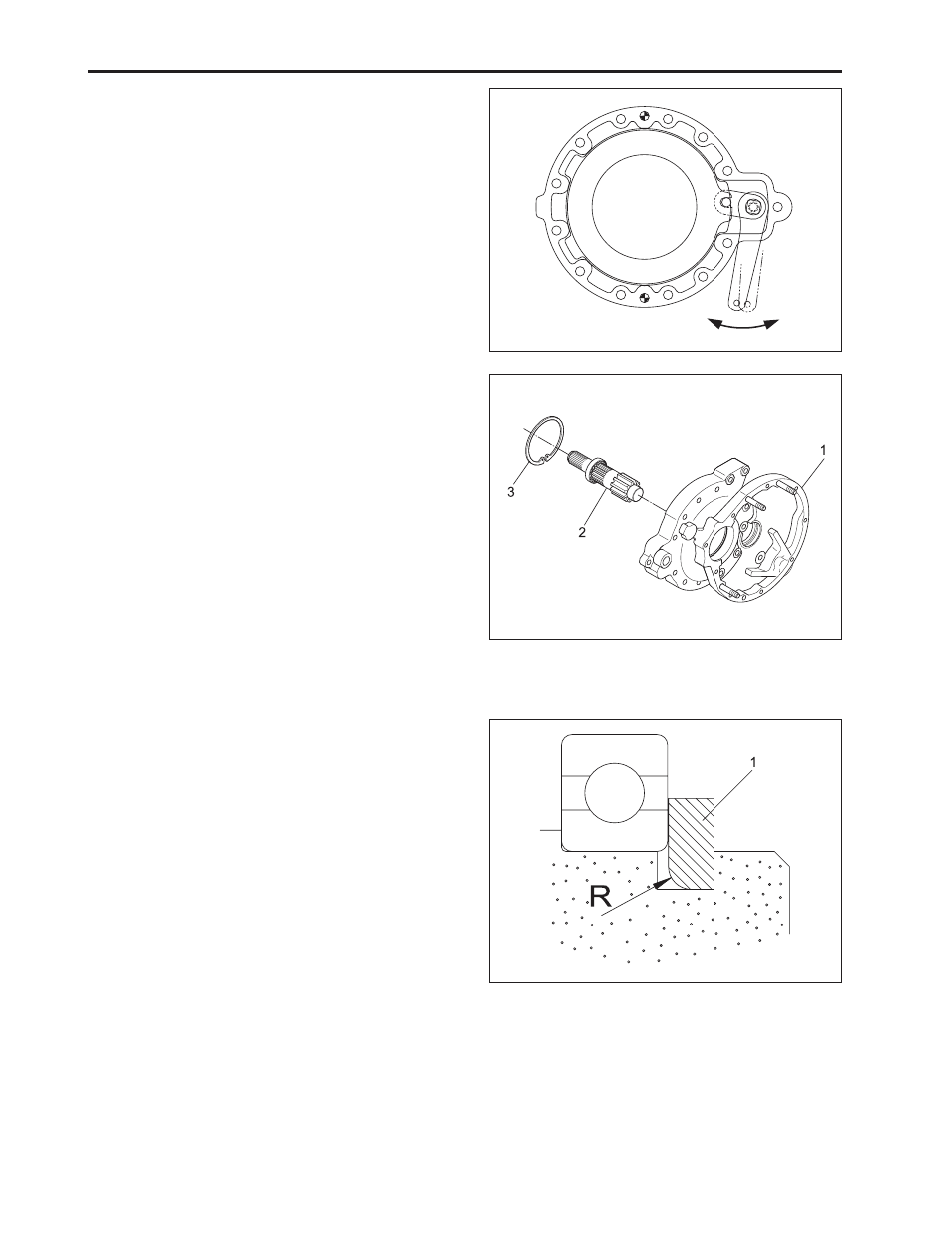

(When reassembling)
•
Rounding of snap ring should be toward bearing.
a. Second Stage (Disassembly of Gear Shaft)
1. Pull out snap ring (3) from brake case (1).
2. Pull out gear shaft (2) with bearing.
(1) Brake Case
(3) Snap Ring
(2) Gear Shaft
615W614A
7.2 OPERATION CHECK OF BRAKE CAM
LEVER
A. Operation Check of Brake Cam Lever
1. Move brake cam lever front to rear and check for
proper operation.
2. If not operated smoothly, check the parts for dimen-
sion.
(1) Snap Ring
