TRANSMISSION
4-7 D615-W02 May-2003
615W407A
Forward
Shuttle shaft (1) → Spline hub (2) → Shift (3) → 19 Gear
(4) → 23 Gear (6) → 23-21 Gear shaft (5)
Reversing
Shuttle shaft (1) → Spline hub (2) → Shift (3) → 18 Gear
(8) → 21 Gear (9) → 23-21 Gear shaft (5)
2.2 SHUTTLE
• Employs double synchro mesh type with 8th stage
in forward or reverse and improves the transmis-
sion shift power and durability as the contacted
amount of cone increased twice.
(1) Shuttle Shaft
(2) Spline Hub
(3) Shift
(4) 19 Gear
(5) 23-21 Gear Shaft
(6) 23 Gear

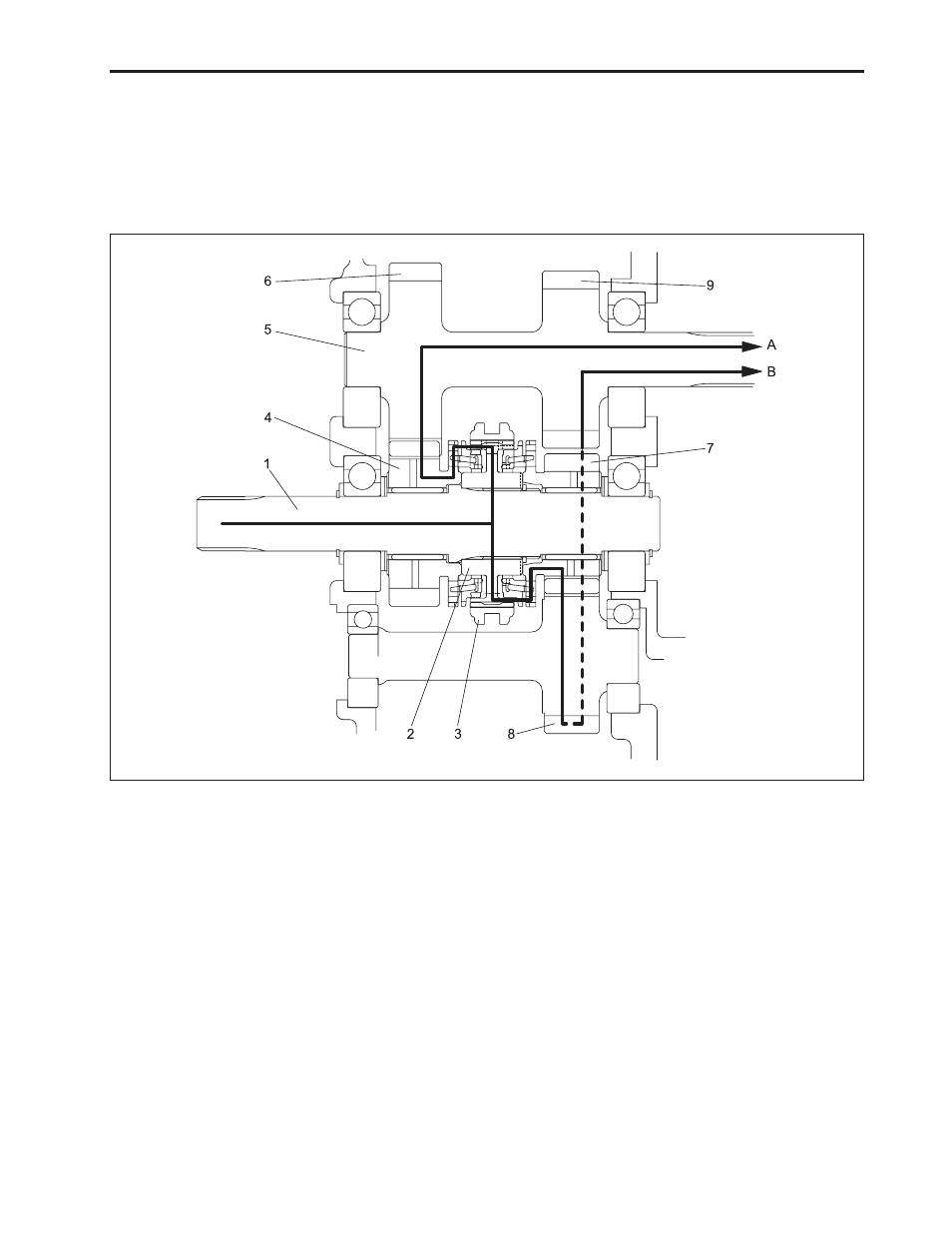

Power Transmission Flow Chart
(7) 16 Gear
(8) 18 Gear
(9) 21 Gear
[A] FORWARD
[B] REVERSE
