CHAPTER 4 8354/8404
4-24 D615-W02 May-2003
615W439A

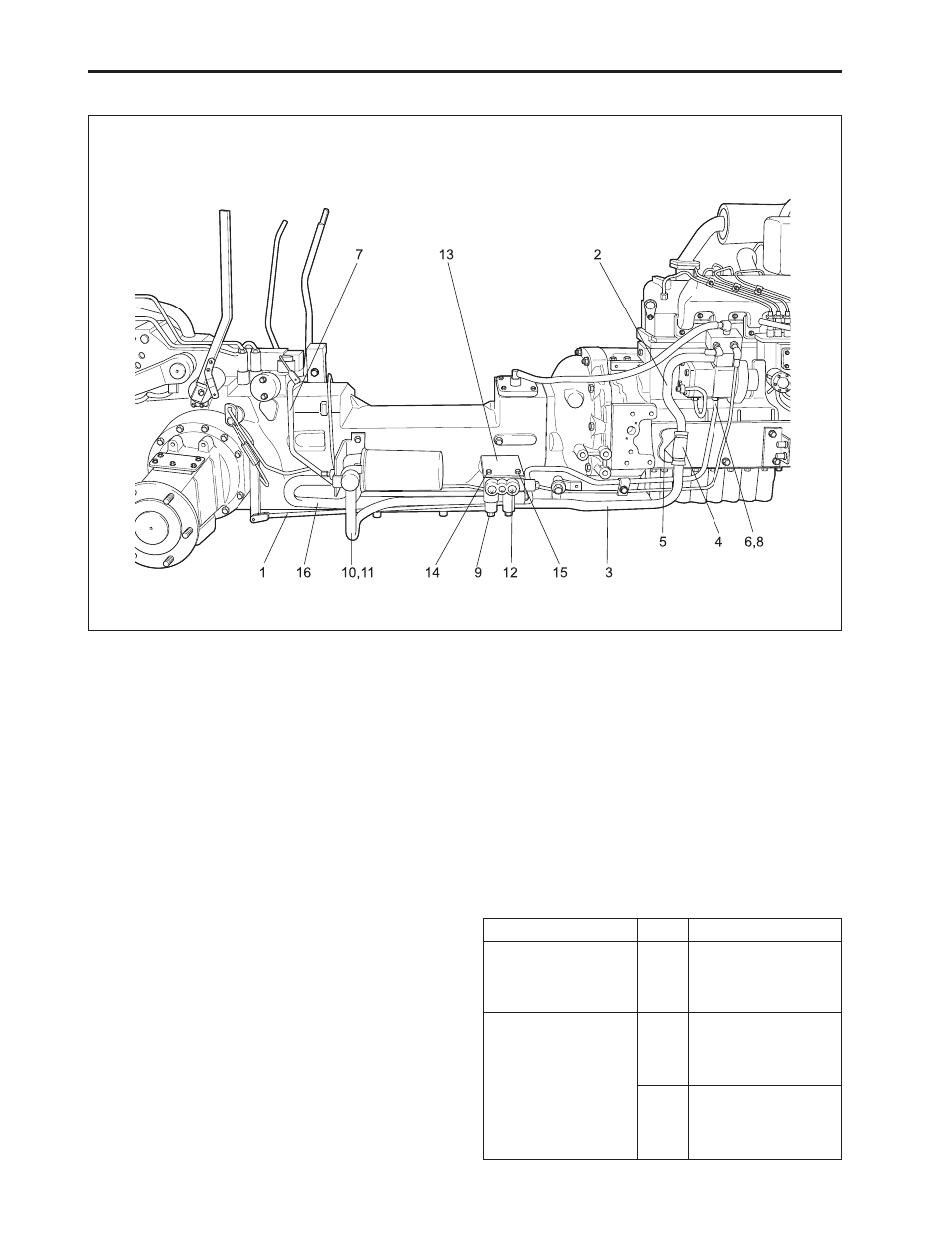

1. Disconnect brake rod (1) from the left and right of
tractor body.
2. Loosen intake pipe 3 (2) and intake pipe 2 (3), con-
necting rubber pipe (4), and clamp (5), Push and
lower the rubber pipe into intake pipe 2 and then
disconnect the connecting part.
3. Loosen bolts (14), (15) and joint bolt (9) of hydrau-
lic pipe 1 (6) and hydraulic pipe 2 (7) and discon-
nect the hydraulic pipe.
4. Disengage bolt (11) of PTO hydraulic pipe (10).
5. Disengage bolts (14), (15) of hydraulic block (12)
and hydraulic block support (13) and disconnect
from clutch housing.
(1) Brake Rod
(2) Intake Pipe 3
(3) Intake Pipe 2
(4) Rubber Pipe
(5) Clamp
(6) Hydraulic Pipe 1
Sect. Spec. Tightening Torque
Joint bolt
Tightening bolt
M18
M8
M10
49.0 ~ 58.8 N·m
5.0 ~ 6.0 kgf·m
36.1 ~ 43.4 lbf·ft
23.6 ~ 27.4 N·m
2.4 ~ 2.8 kgf·m
17.3 ~ 20.2 lbf·ft
23.6 ~ 27.4 N·m
2.4 ~ 2.8 kgf·m
17.3 ~ 20.2 lbf·ft
(When reassembling)
• Make sure to clamp connecting rubber pipe of in-
take pipe to prevent air from entered.
• Apply hydraulic pipe connecting O-ring with grease
and take precautions not to do any damage.
B. Second Stage (Hydraulic Pipe Disconnection)
(7) Hydraulic Pipe 2
(8) Bolt
(9) Joint Bolt
(10) PTO Hydraulic Pipe
(11) Bolt
(12) Hydraulic Block
(13) Hydraulic Block Support
(14) Washer Holding Bolt
(15) Washer Holding Bolt
(16) Intake Pipe 1
