TRANSMISSION
4-39 D615-W02 May-2003
615W466A
615W465A
615W464A

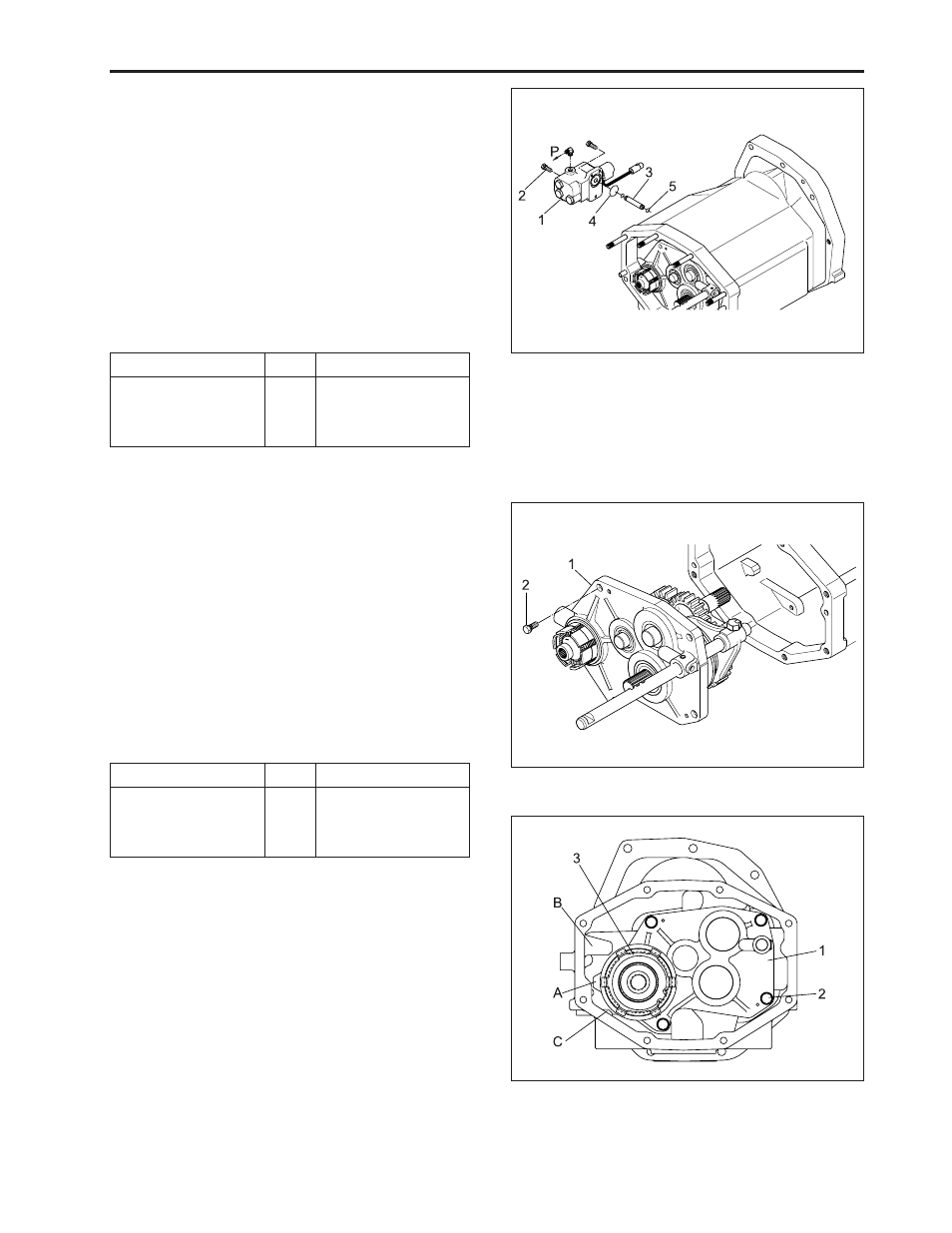

b. Second Stage (Disconnection of bearing
over assembly)
1. Disengage bearing cover (1) attaching bolt (2) and
disconnect bearing cover assembly from interme-
diate case.
(When reassembling)
• Take care of assembly position when attaching to
intermediate case with PTO clutch assembly (3) as-
sembled in bearing cover.
• Ensure that protrusion (A) of clutch assembly is lo-
cated between protrusion (B) and (c) of intermedi-
ate case (See the figure below).
(1) Bearing Cover (2) Bolt
(1) Bearing Cover
(2) Bolt
(3) PTO Clutch Assembly
Sect. Spec. Tightening Torque
Tightening bolt, nut M10 48.1 ~ 55.9 N·m
4.9 ~ 5.7 kgf·m
35.4 ~ 41.2 lbf·ft
(1) Modulator Valve Assembly (4) O-ring
(2) Bolt (5) O-ring
(3) Connecting Pipe
B. Disassembly of Intermediate Case
a. First Stage (Disconnection of Modulator
Valve Assembly)
1. Disengage modulator valve assembly (1) attaching
bolt (2) and disconnect valve assembly.
(When reassembling)
• Check valve assembly, connecting pipe (3), and O-
ring (4), (5) and apply the contacted surface with
grease.
• Take great care to prevent foreign matters from be-
ing entered inside of valve assembly and connect-
ing pipe.
Sect. Spec. Tightening Torque
Tightening bolt, nut M8 23.5 ~ 27.4 N·m
2.4 ~ 2.8 kgf·m
17.4 ~ 20.2 lbf·ft
