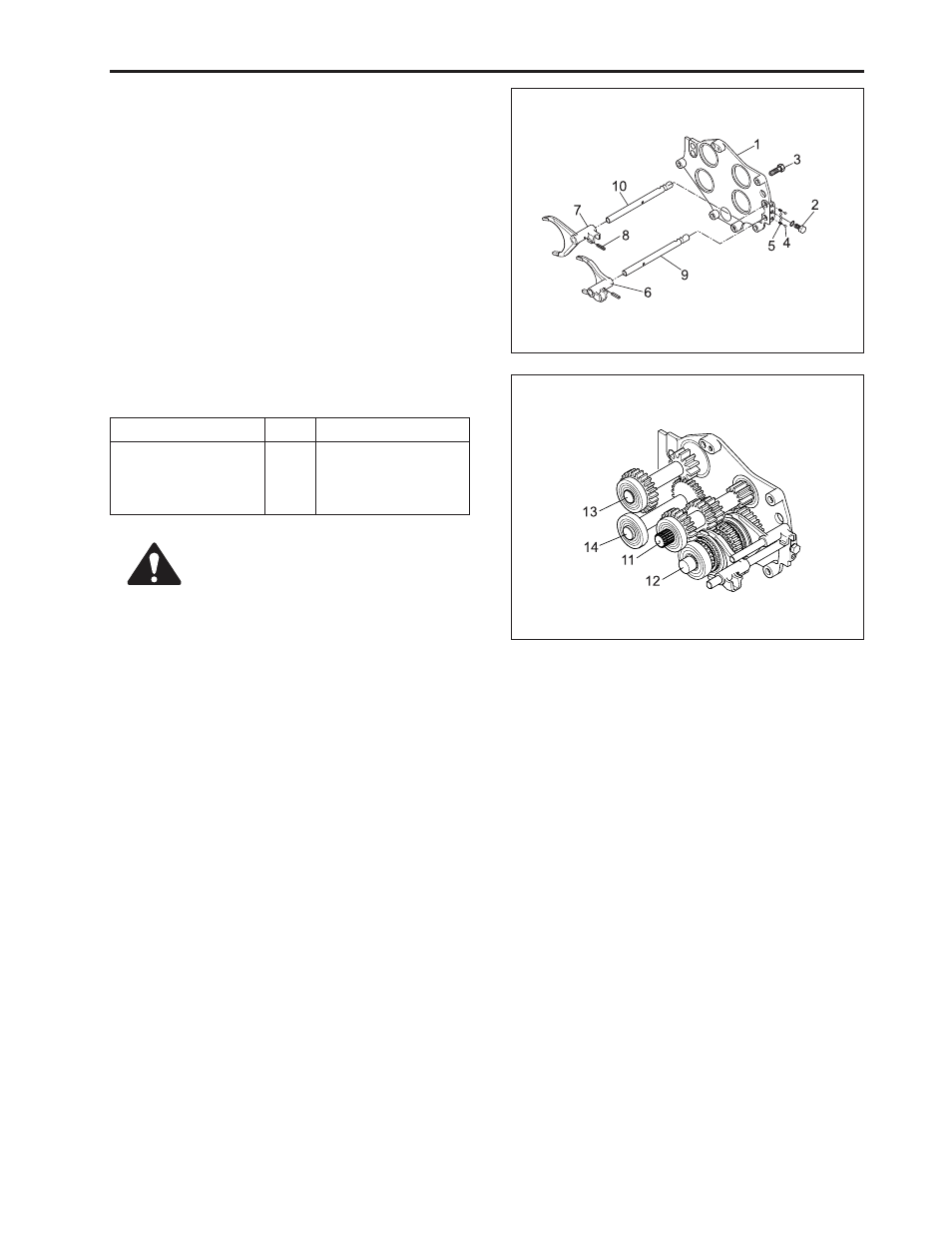

10.5 FIFTH STAGE (DISCONNECTION OF
TRANSMISSION FORK)
(When reassembling)
1. Loosen locking bolt (2), (3) from bearing cover (1)
and pull out ball (4) and spring (5).
2. Pull out spring pin (8) from transmission fork (6),
(7) and disconnect transmission fork and fork rod
(9), (10).
3. Disconnect gear shaft assembly (11), (12), (13), (14)
from bearing cover.
•
With transmission fork set to Neutral, insert ball and
spring and tighten locking bolt.
•
When tightening the locking bolt, ensure the as-
sembly position and the number of spring and bass
are correct and then apply with grease.
Sect.
Spec.
Tightening Torque
Locking bolt
M10
48.1 ~ 55.9 N·m
4.9 ~ 5.7 kgf·m
35.4 ~ 41.2 lbf·ft
(1) Bearing Cover
(2) Locking Bolt
(3) Bolt
(4) Ball
(5) Spring
(6) Main Transmission Fork (1st, 2nd)
(7) Main Transmission Fork (3rd, 4th)
(8) Spring Pin
(9) Fork Rod (1st, 2nd)
(10) Fork Rod (3rd, 4th)
(11) Main Shift Gear Shaft
(12) Counter Shaft
(13) Counter Shaft (PTO)
(14) 23-19 Gear Shaft
•
Take great care of assembly direction
of transmission fork and type direction
of spring pin.
CAUTION
