Top link bracket device – Cub Cadet 8404 User Manual
Page 254
CHAPTER 9 8354/8404
9-20
D615-W02 May-2003
615W924A
11.2 OPERATION
If shock is applied to the implement, it will be absorbed
by cover (3), spring (4), and top link and connected to
linkage by plate (7) and tie rod (9) to elevate the imple-
ment.
This time, the oil flow passage will be changed by link-
age in the MLS valve.

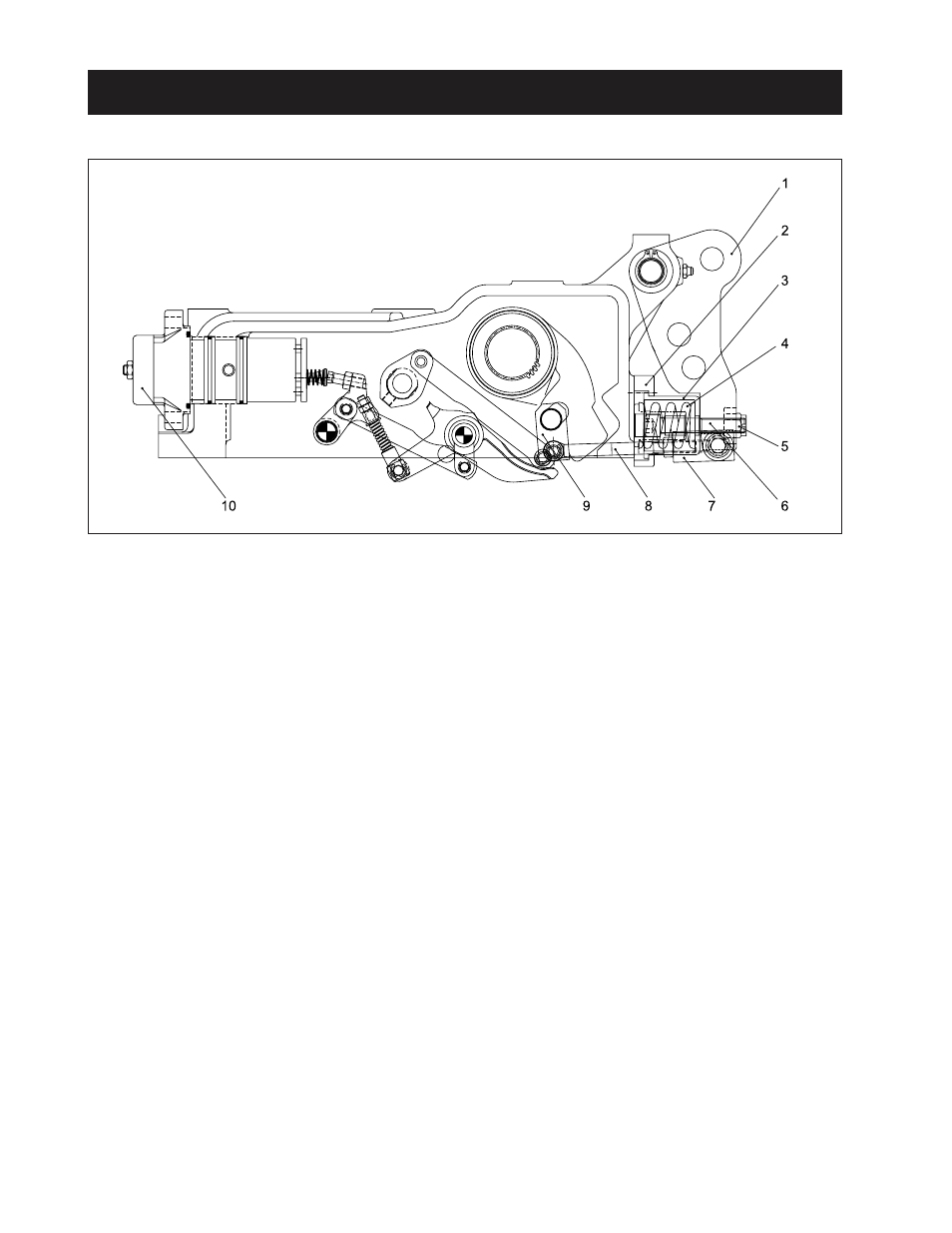

11.1 STRUCTURE
(1) Top Link Holder
(2) Flange
(3) Cover
(4) Spring
(5) Nut
(6) Hex. Bolt
(7) Plate
(8) Crank
(9) Tie Rod
(10) MLS (Control) Valve
11. TOP LINK BRACKET DEVICE
