STEERING SYSTEM
8-3 D615-W02 May-2003
615W802A

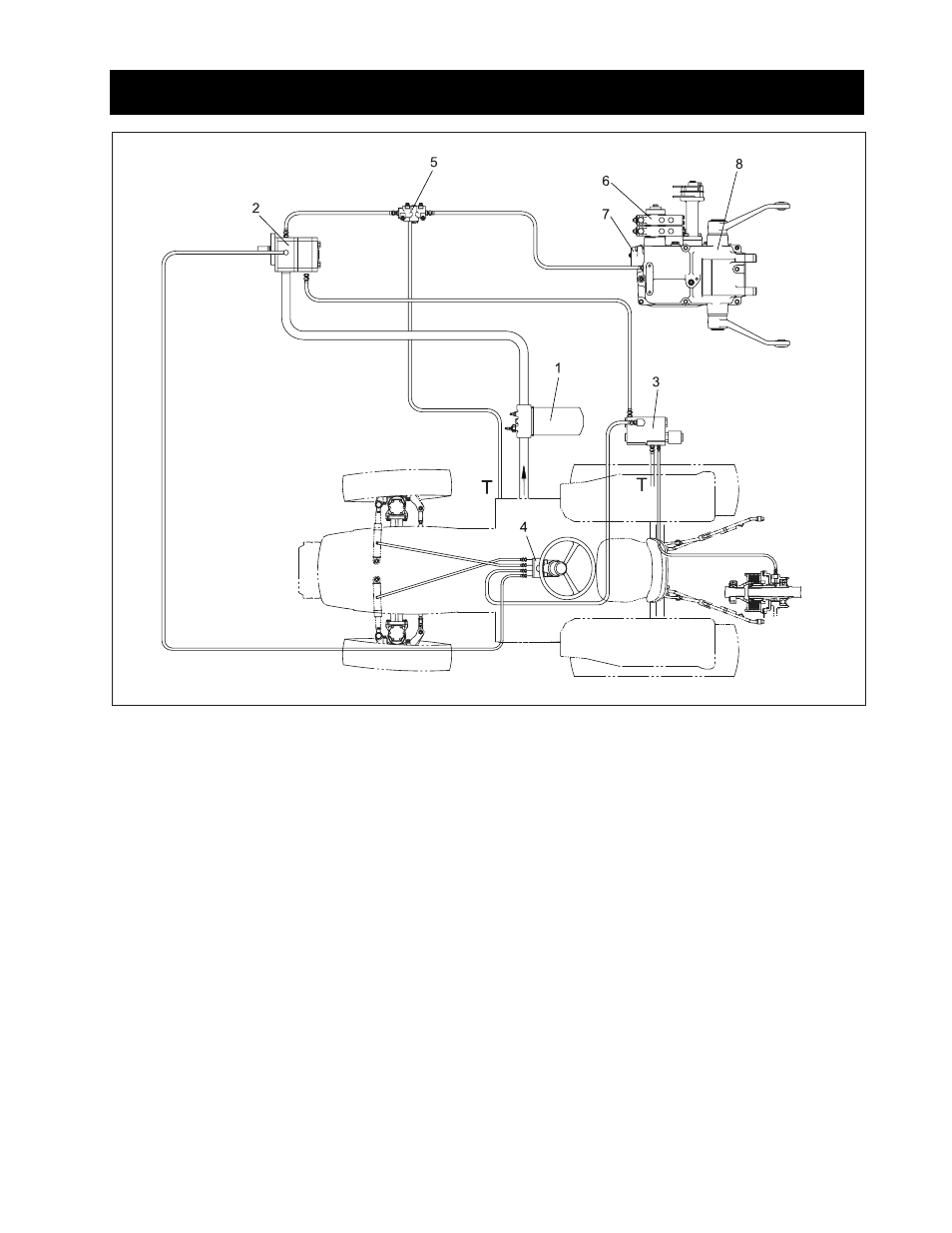

(1) Hydraulic Filter
(2) Hydraulic Pump
(3) Modulating Valve
(4) Power Steering Unit
(5) Hydraulic Block
(6) Aux. Control Valve
(7) MLS(Control) Valve
(8) Power Lift Assembly
1. CHARACTERISTICS
• Steering system is applied with full hydraulic power steering and installed with two single rod cylinders.
• The power steering unit is connected directly with hydraulic hoses and steering cylinders without additional
linkage and has a superior steering power as transmission efficiency is increased.
• It is applied with a load reaction type and when releasing the steering wheel in steering, the wheel keeps in an
almost straight direction.
