CHAPTER 4 8354/8404
4-38 D615-W02 May-2003

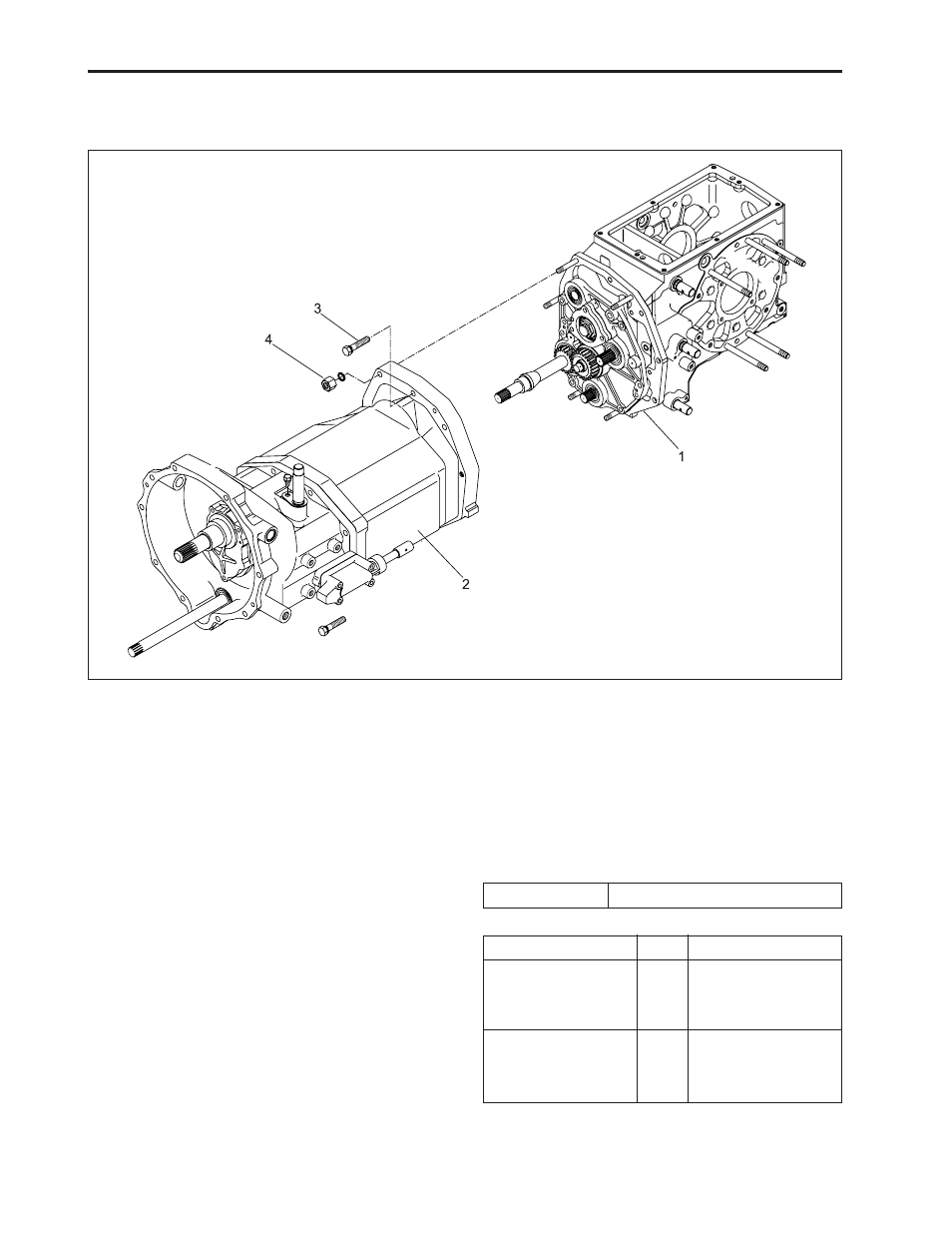

615W463A
(1) Transmission Case
(2) Intermediate Case
a. First Stage (Disconnection of Intermediate
Case and Transmission Case)
1. Support the lower of transmission case (1) with a
hydraulic jack.
2. Disengage tightening bolt (3) and nut (4) from inter-
mediate case (2) and transmission case.
3. Disconnect intermediate case (2) and transmission
case (1).
Sealing agent Three bond 1208D or equivalent
Sect. Spec. Tightening Torque
Tightening bolt, nut
Stud
M12
M12
77.5 ~ 90.2 N·m
7.9 ~ 9.2 kgf·m
57.2 ~ 66.5 lbf·ft
39.2 ~ 49.0 N·m
4.0 ~ 5.0 kgf·m
28.9 ~ 36.2 lbf·ft
(3) Bolt
(4) Nut
11.1 DISASSEMBLY, ASSEMBLY
A. Disconnection of Intermediate Case Group
(When reassembling)
• Make sure PTO clutch assembly and spline hub is
seated properly. Apply the contacted surface of in-
termediate case and transmission case with seal-
ing agent.
