CHAPTER 3 8354/8404
3-12 D615-W02 May-2003
615W323A
615W322A
615W321A

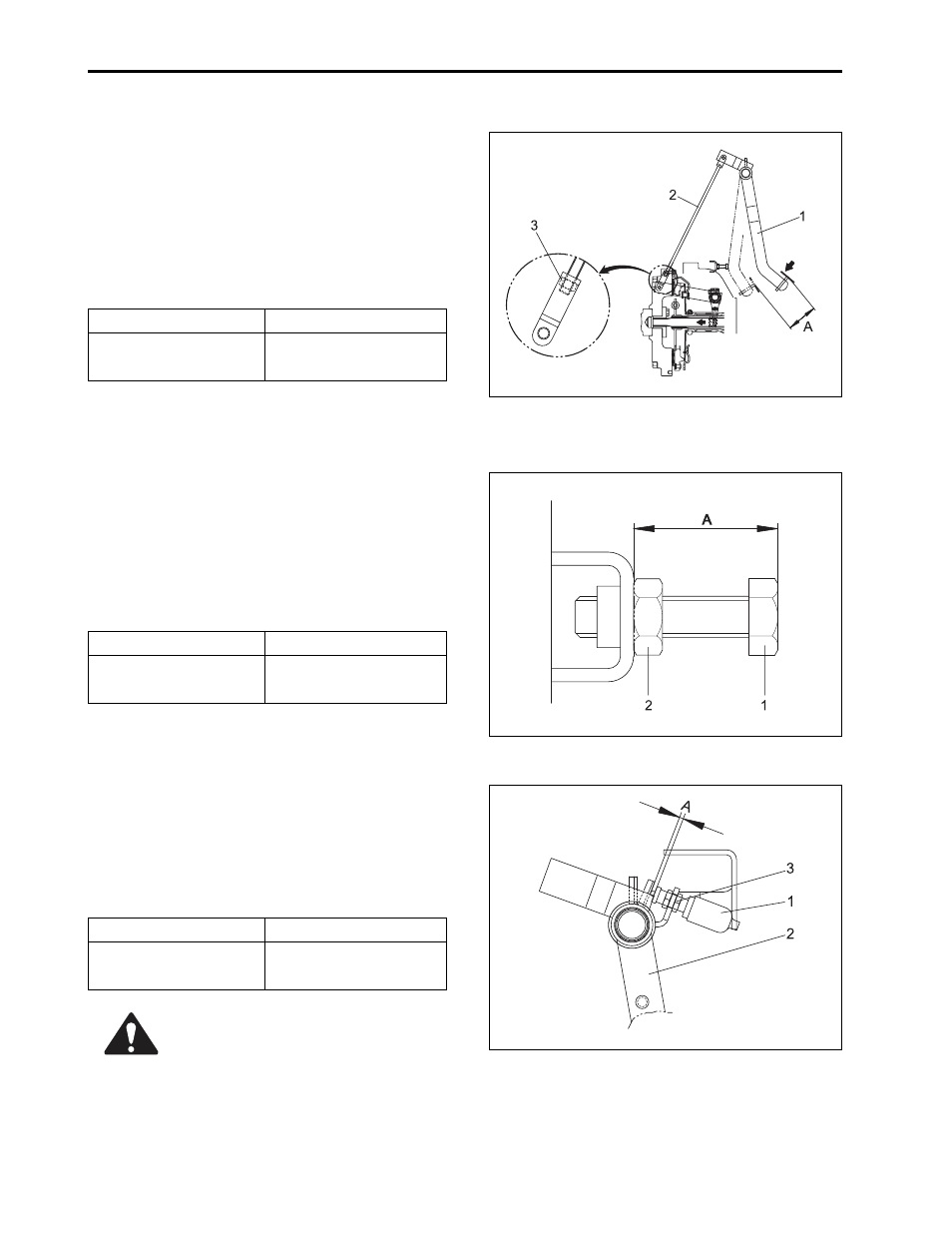

2.6 DISASSEMBLY, MAINTENANCE
A. CLUTCH PEDAL CHECK AND ADJUST-
MENT
a . First Stage (Clutch Pedal Play Adjustment)
1. Press clutch pedal (1) by hand and measure play
(A) at the end of pedal.
2. If measurement exceeds the specified, loosen lock
nut (3) of clutch rod (2), re-adjust the length of clutch
rod, set pedal play and then tighten with lock nut.
Sect
Play of clutch pedal (A)
Specified
30 ~ 40 mm
1.18 ~ 0.57 in.
(1) Clutch Pedal (2) Clutch Rod
(3) Lock Nut
b. Second Stage (Adjustment of Clutch Pedal
Stopper Bolt)
1. W h e n w o r k i n g c l u t c h p e d a l w h e n c l u t c h i s
disconnected, avoid bolt setting to prevent exces-
sive force to clutch.
2. If setting (A) of stopper bolt exceeds the specified,
loosen lock nut (2), readjust the length, and then
set with lock nut.
Sect
Stopper bolt setting
length (A)
Specified
27 ~ 29 mm
1.06 ~ 1.14 in.
(1) Stopper Bolt (2) Lock Nut
c. Third Stage (Adjustment of Safety Switch)
1. Measure clearance (A) of safety switch (1) and clutch
pedal (2).
2. If the measured value exceeds the specified, loosen
safety switch lock nut (3).
Readjust and then lock not to be loosen.
Sect
Clearance of safety switch
and clutch pedal (A)
Specified
3 ~ 4 mm
0.12 ~ 0.16 in.
(1) Safety Switch (2) Clutch Pedal
(3) Lock Nut
• Without working of clutch pedal, start
motor should not be prerated.
CAUTION
