FRONT AXLE
7-17
D615-W02 May-2003
615W726A

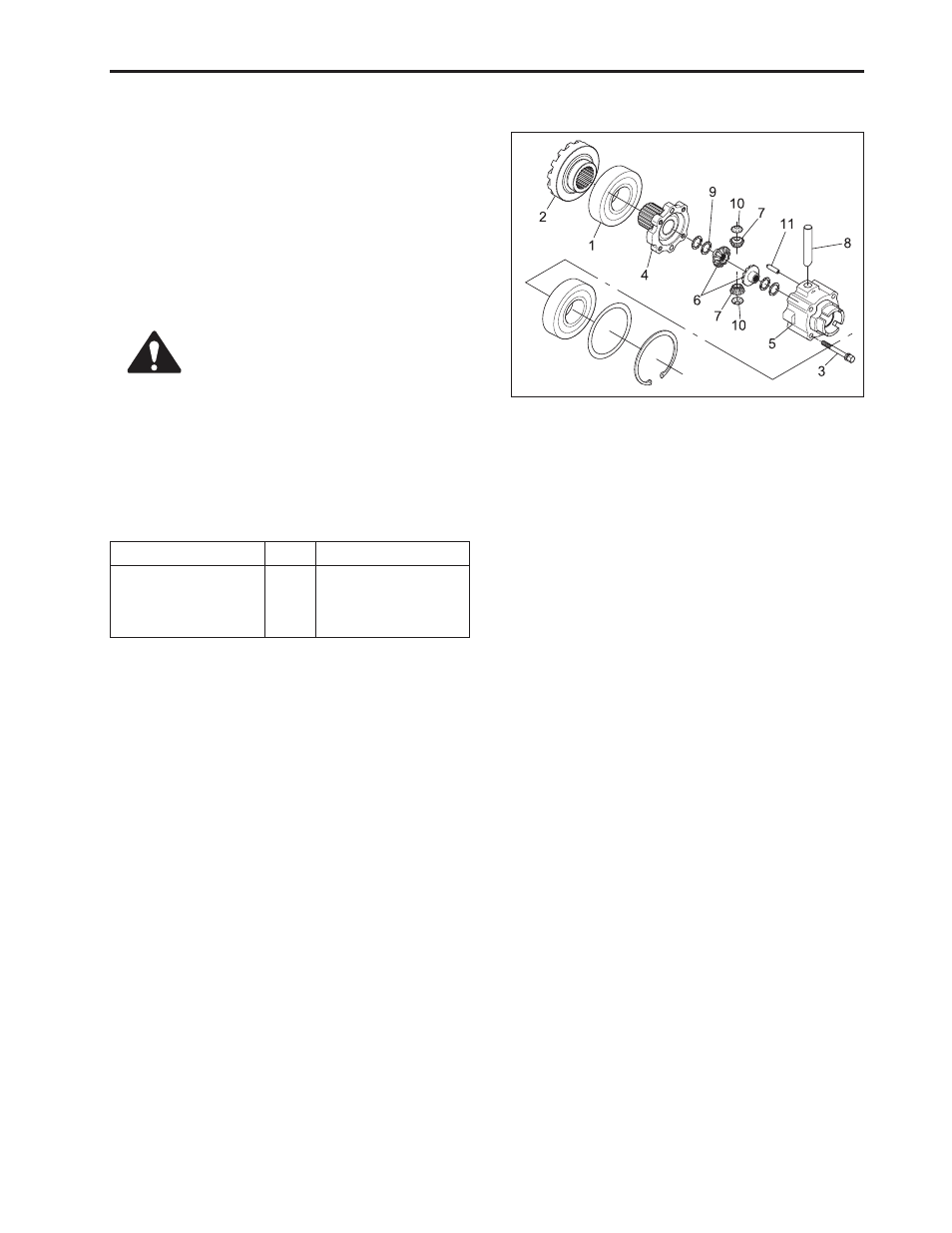

(1) Ball Bearing
(2) Spiral Bevel Gear
(3) Bolt
(4) Differential Case Cover
(5) Front Differential Case
(6) Differential Side Gear
(7) Differential Pinion
(8) Differential Pinion Shaft
(9) Shim
(10) Differential Pinion Washer
(11) Parallel Pin
1. Using bearing puller, pull out spiral bevel gear (2)
and bearing (1) simultaneously.
2. Loosen bolt (3) and disconnect differential case
cover (4).
3. Pull out parallel pin (11) and then disconnect differ-
ential pinion shaft (8).
4. Disconnect differential pinion (7), differential side
gear (6), differential pinion washer (10), and shim
(9) from case (5).
•
Mark disassembled part with its origi-
nal position in order to assemble
again into original position.
CAUTION
(When reassembling)
•
Assemble each part into the original position
marked prior to disassembly.
•
Apply differential gear operating part with molybde-
num (Three bond 1901 or equivalent).
8.7 SEVENTH STAGE (DISASSEMBLY OF
DIFFERENTIAL GEAR)
Sect.
Spec.
Tightening torque
Differential case
cover tightening bolt
M10
48.0 ~ 55.9 N·m
4.9 ~ 5.7 kgf·m
35.4 ~ 41.2 lbf·ft
