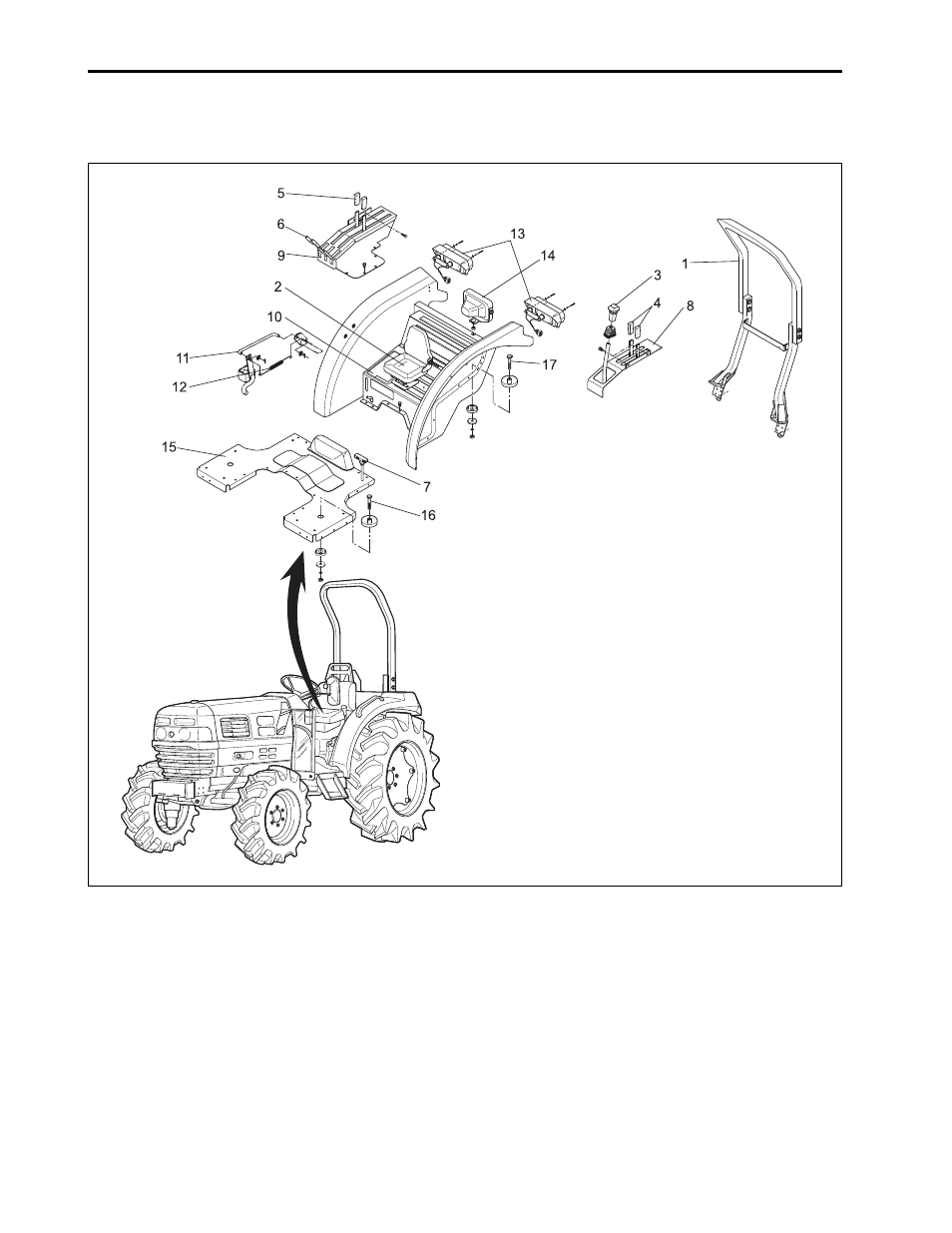

1.2 DISASSEMBLY OF FENDER AND STEPLADDER ASSEMBLY
A. FIRST STAGE
(1) ROPS
(2) Seat Assembly
(3) Main Shift Knob
(4) Knob (Range Lever)
(5) Knob (Position Control Lever)
(6) Knob (External Hydraulic Lever)
(7) Knob (Front Wheel Lever)
(8) Transmission Shift Lever Guide
(9) Hydraulic Lever Guide
(10) Seat Lower Assembly
(11) Differential Clamping Rod
(12) Spring
(13) Rear Light
(14) Work Light
(15) Stepladder Assembly
(16) Bolt
(17) Bolt
