CHAPTER 9 8354/8404
9-14 D615-W02 May-2003
615W917A

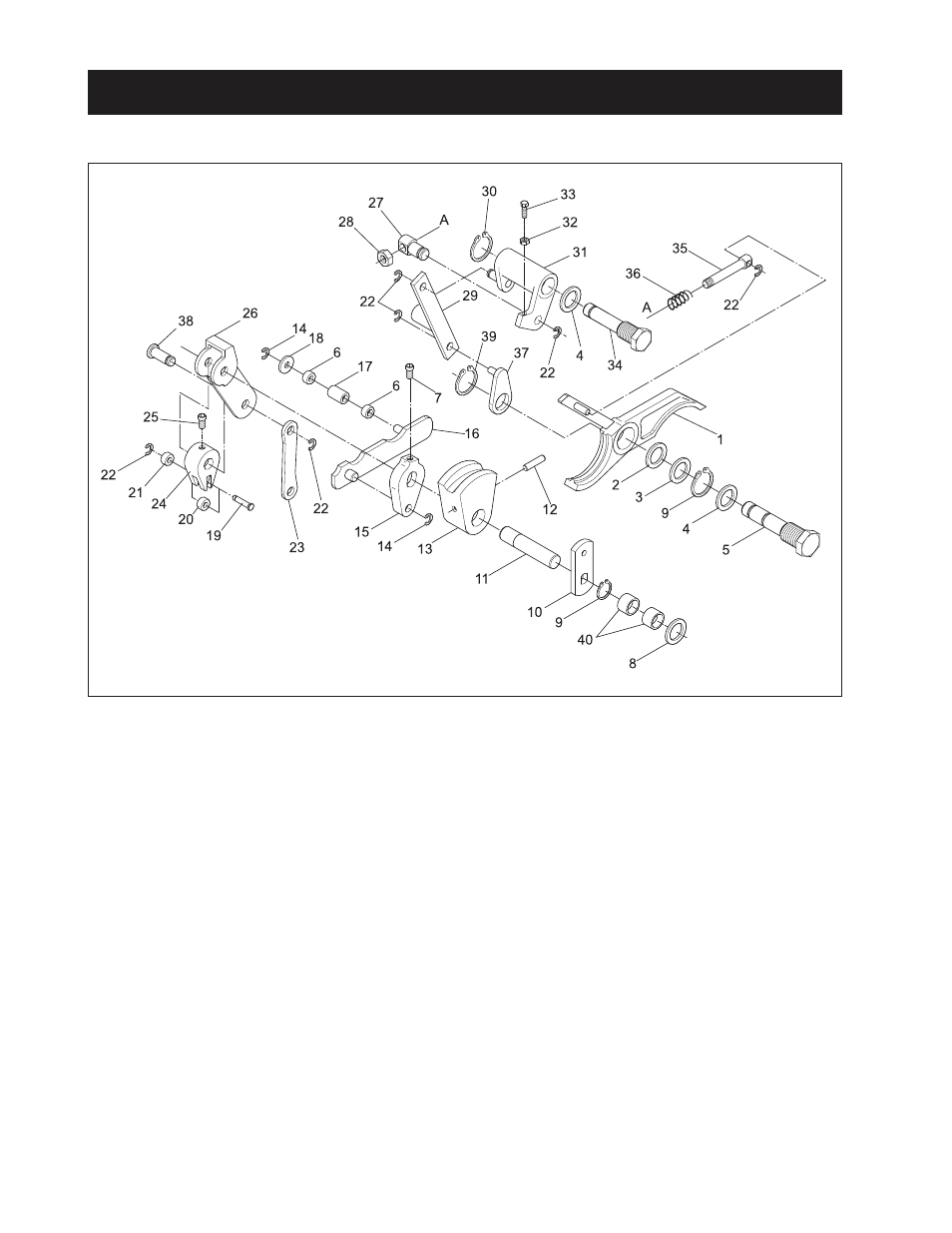

9.1 STRUCTURE
(1) Lever
(2) Needle Bearing
(3) Washer
(4) Packing
(5) Pin
(6) Roller 3
(7) Lock Screw
(8) Oil Seal
(9) Snap Ring
(10) Link 4
(11) Shaft
(12) Spring Pin
(13) C a m
(14) Snap Ring
(15) Link 1
(16) Link 2
(17) Roller 4
(18) Plain Washer
(19) Pin
(20) Roller 1
(21) Roller 2
(22) Snap Ring
(23) Link 3
(24) Arm
(25) Lock Screw
(26) Cam 1
(27) Pin
(28) Nut
(29) Link
(30) Snap Ring
(31) Arm
(32) Nut
(33) Bolt
(34) Pin
(35) Pin
(36) Spring
(37) Link
(38) Pin
(39) Snap Ring
(40) Bush
9. STRUCTURE AND OPERATION
