CHAPTER 4 8354/8404
4-54
D615-W02 May-2003
615W4A4A
Sect.
Spec.
Tightening torque
Tightening bolt
M10
48.0 ~ 55.9 N·m
4.9 ~ 5.7 kgf·m
35.5 ~ 41.2 lbf·ft
1. Pull out spring pin (1).
2. Pull out snap pin (2) and disassemble flat washer
(3) and pin (4).
3. Pull out differential locking fork shaft (5) and disas-
semble differential locking fork (6).
4. Loosen left and right bearing case (8), (9) attaching
bolt (10) and disassemble bearing case and ad-
justing shim (11).
5. Disconnect differential gear assembly (12) from
transmission case.
(When reassembling)
•
Make sure spiral bevel gear is worn and change
with bevel pinion in a set if necessary.
•
Make sure of assembly direction of differential gear
assembly.

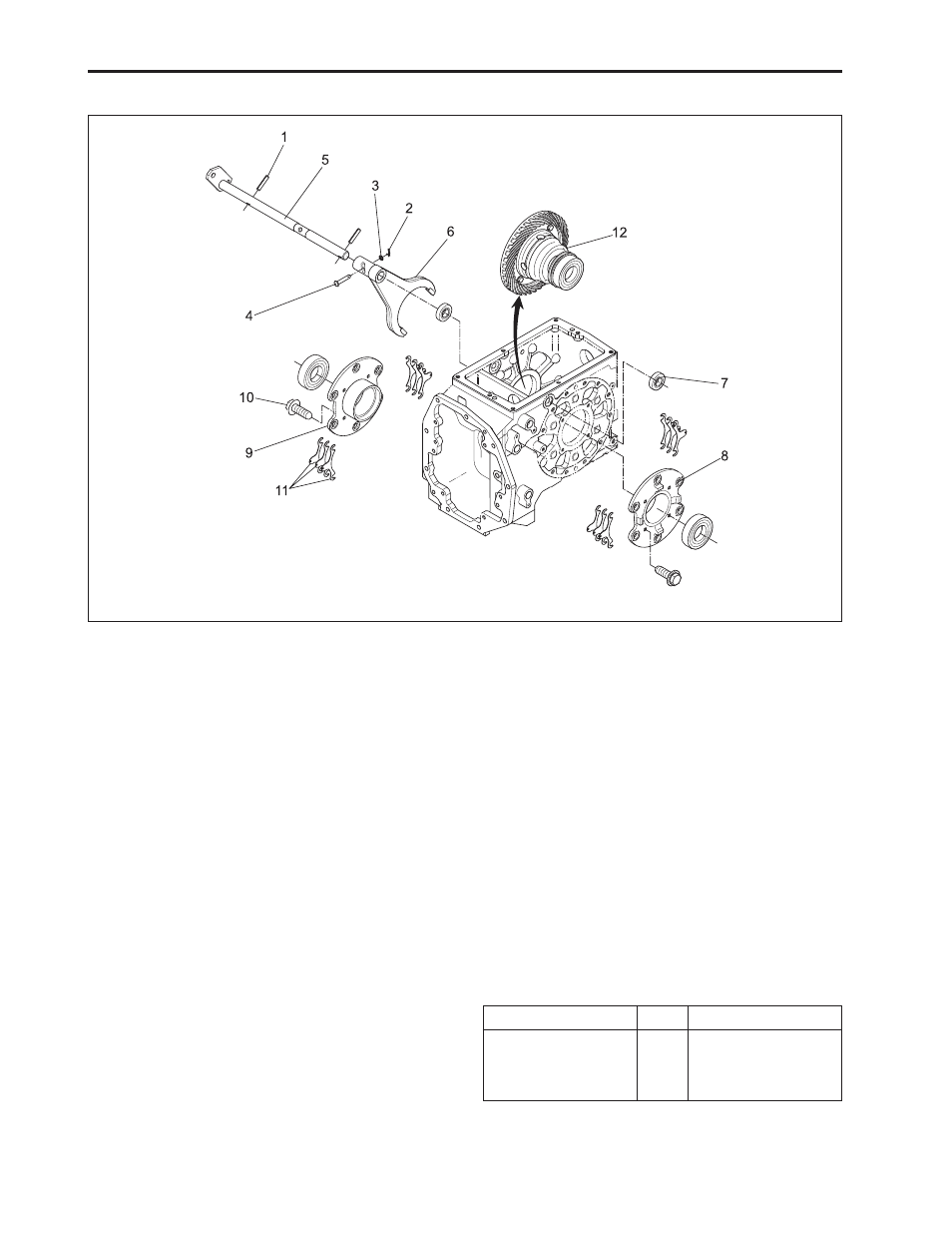

(1) Spring Pin
(2) Snap Pin
(3) Flat Washer
(4) Pin
(5) Differential Locking Fork Shaft
(6) Differential Locking Fork
k. Tenth Stage (Disconnection of Differential Gear Assembly)
(7) Oil Seal
(8) Bearing Case (Left)
(9) Bearing Case (Right)
(10) Bolt
(11) Shim
(12) Differential Gear Assembly
•
From rear view, spiral bevel gear (ring gear) is from
right.
•
When assembling bearing cover, take care of the
number of adjusting shim (11).
•
Apply left and right oil seal (7) contacted surface of
transmission case with grease and take care of not
to be damaged.
•
Taking care of spring pin type direction.- Forked por-
tion should be outward (opposite of oil seal).
