CHAPTER 4 8354/8404
4-32 D615-W02 May-2003

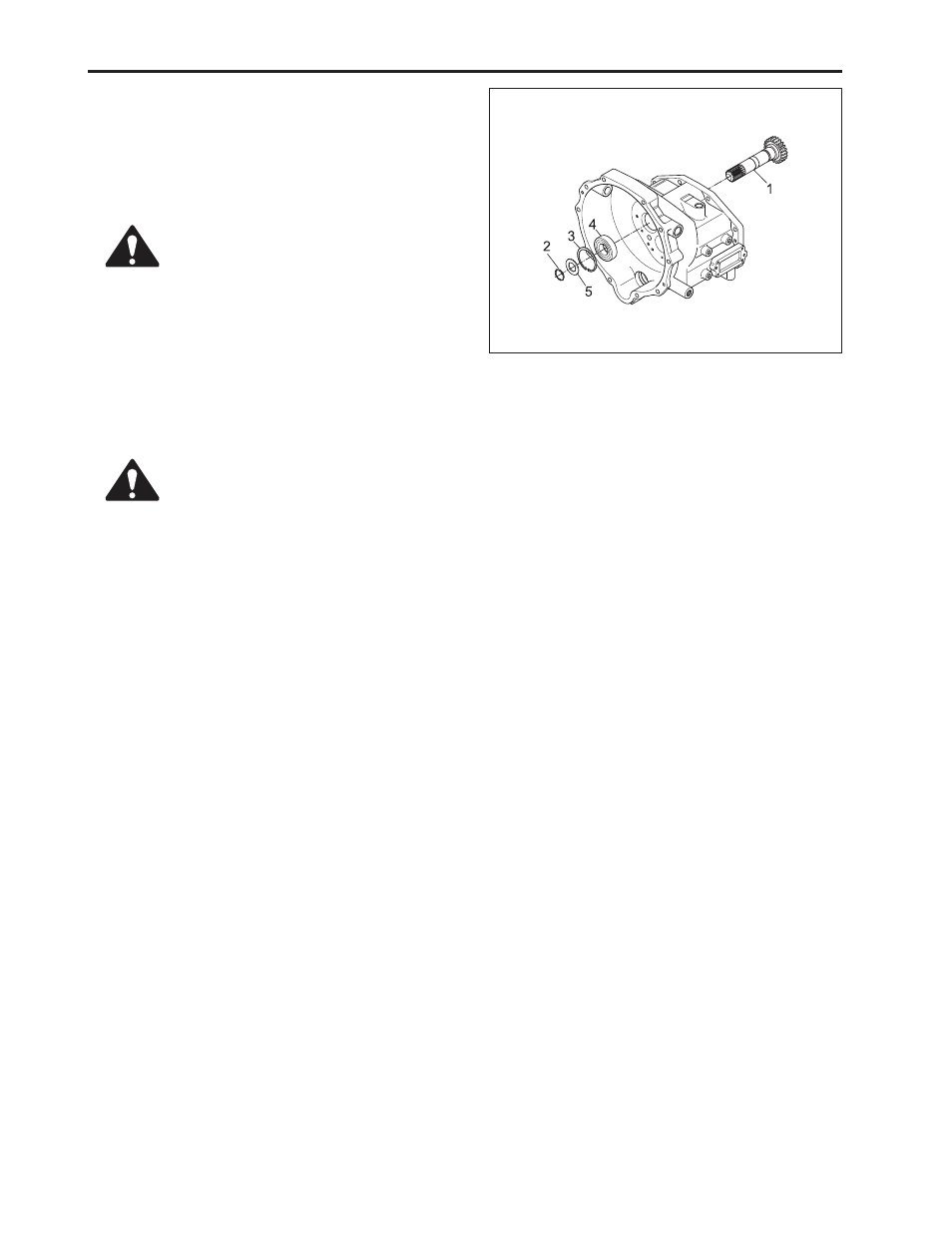

615W454A
(1) 25 Gear Shaft (4) Ball Bearing
(2) Snap Ring (5) Collar
(3) Snap Ring
10.6 SIXTH STAGE (DISASSEMBLY OF 22
GEAR SHAFT)
1. Disengage snap ring (2) for 22 gear shaft (1) and
pull out 22 gear shaft from the clutch housing.
2. Loosen snap ring (3) for hole of clutch housing and
pull out bearing (4).
• When disassembling 25 gear shaft (1),
tap lightly the end of shaft using plas-
tic hammer not to be damage.
CAUTION
• When disassembling locking bolt from
bearing cover, take care of ball not to
be bounded.
CAUTION
(When reassembling)
• Insert 22 gear shaft into gearing, seat bearing in
housing with snap ring for hole, and tap lightly gear
shaft.
• Snap ring should be assembled with rounding to-
ward bearing.
