TRANSMISSION
4-33
D615-W02 May-2003
615W455A
1. Loosen snap ring (1) for shaft.
2. Pull out bearing (2), (3) using bearing puller.
3. Disassemble thrust collar (4), needle bearing (5),
(6), and gear (7), (8).
4. Loosen snap ring (9) and disassemble synchro hub
assembly (10), gear (11), (12) and needle bearing.
(When reassembling)
•
Take case of assembly position of needle bearing
by specification.
•
24 Gear side: 25*30*20
• 33 Gear side: 32*37*27
•
29 Gear side: 32*37*27
• 36 Gear side: 25*30*13
•
When assembling synchronizer ring (13), ensure
the groove position of synchronizer key (14) is
correct.
•
Ensure oil groove of thrust collar towards gear.
(1) Snap Ring
(2) Ball Bearing
(3) Ball Bearing
(4) Thrust Collar
(5) Needle Bearing

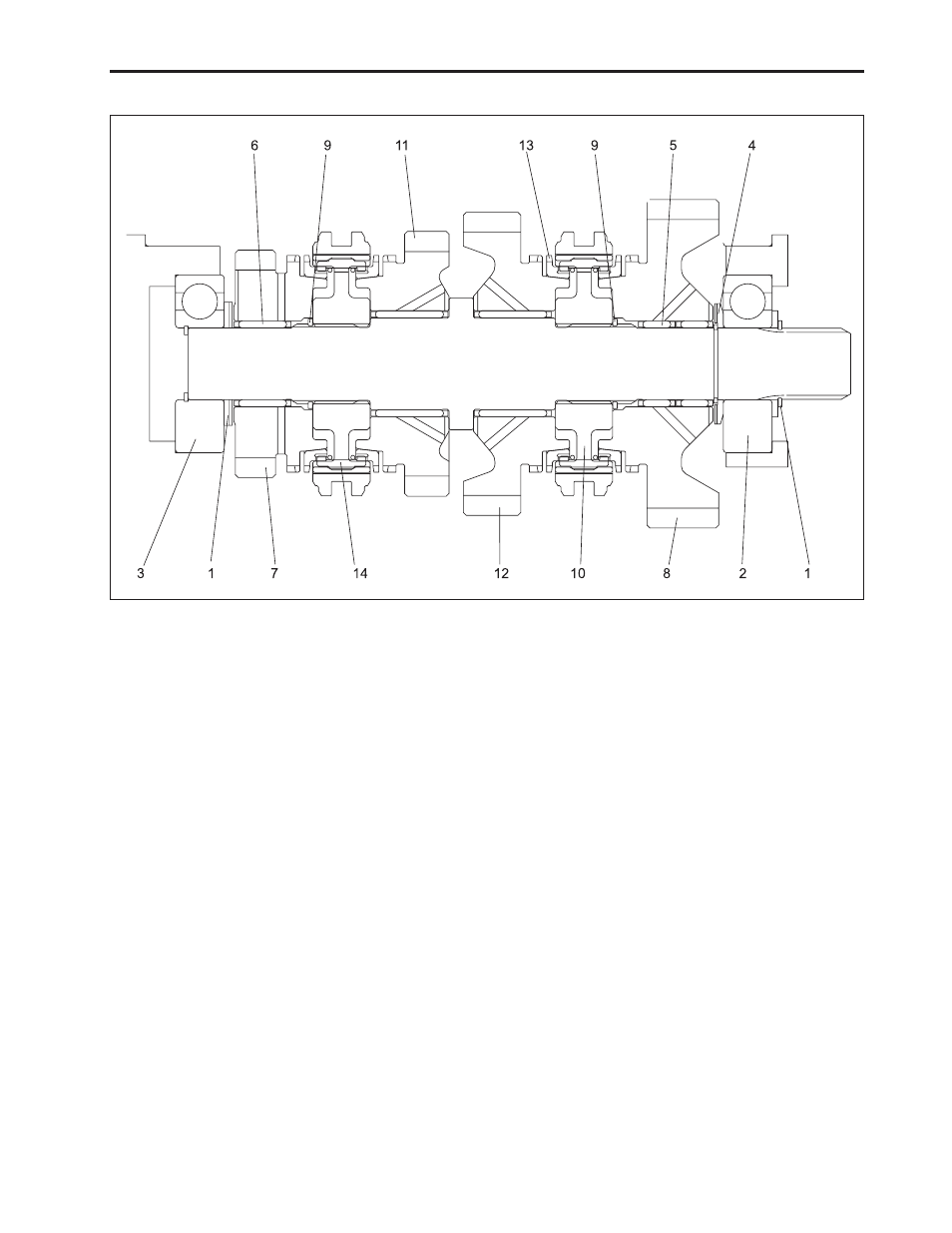

10.7 SEVENTH STAGE (DISASSEMBLY OF MAIN TRANSMISSION COUNTER SHAFT)
(6) Needle Bearing
(7) 24 Gear
(8) 36 Gear
(9) Snap Ring
(10) Synchro Hub Assembly
(11) 29 Gear
(12) 33 Gear
(13) Synchronizer Ring
(14) Synchronizer Key
