ENGINE SYSTEM
2-47 D615-W02 May-2003
615W293A
615W292A

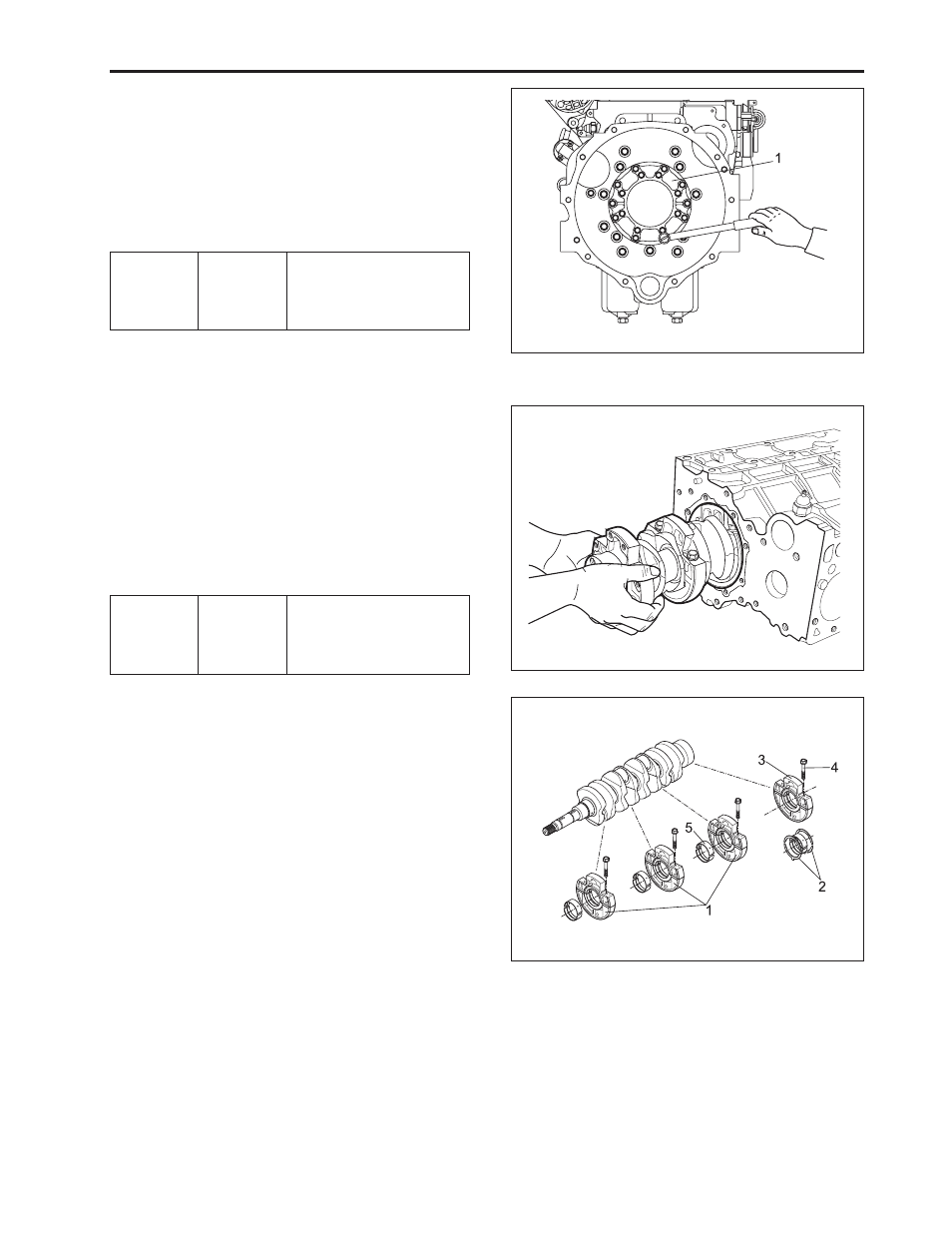

(C)Crankshaft
1. Remove the bearing case screw 2.
2. Pull out the crankshaft, taking care not to damage
the crankshaft bearing 1.
(When reassembling)
• Apply oil to the bearing case screw 2.
• Clean the oil passage of the crankshaft with com-
pressed air.
Tightening
torque Bearing
case
screw 2
68.7 ~ 73.6 N·m
7.0 ~ 7.5 kgf·m
50.6 ~ 54.2 lbf·ft
(D)Main bearing case
1. Remove the bearing case screws 1 (4) and remove
the main bearing case 1, 2, 3 (1).
2. Remove the thrust bearing from the flywheel end
bearing case.
(1) Main Bearing Case 1, 2, 3
(2) Thrust Bearings
(3) Main Bearing Case Assembly 1
(4) Bearing Case Screw 1
(5) Crankshaft Bearing 2
(B) Bearing case cover
Loosen the screw first inside and next outside, and lift
the cover (1) by screwing two screws gradually and
evenly, referring to the photo.
(When reassembling)
• Apply grease to the oil seal lip and take care that it
is not rolled when installing.
615W291A
Tightening
torque Bearing
case
cover screw
23.5 ~ 27.5 N·m
2.4 ~ 2.8 kgf·m
17.4 ~ 20.3 lbf·ft
(1) Bearing Case Cover
