CHAPTER 8 8354/8404

8-20

D615-W02 May-2003

615W840A

b. Assembly of Relief Valve

1. Insert poppet (25) into flange of housing with spring

guide seized using pincette.

2. Insert spring (26) and damper collar (27).

3. Insert O-ring into relief adjusting plug (29) and

tighten to housing.

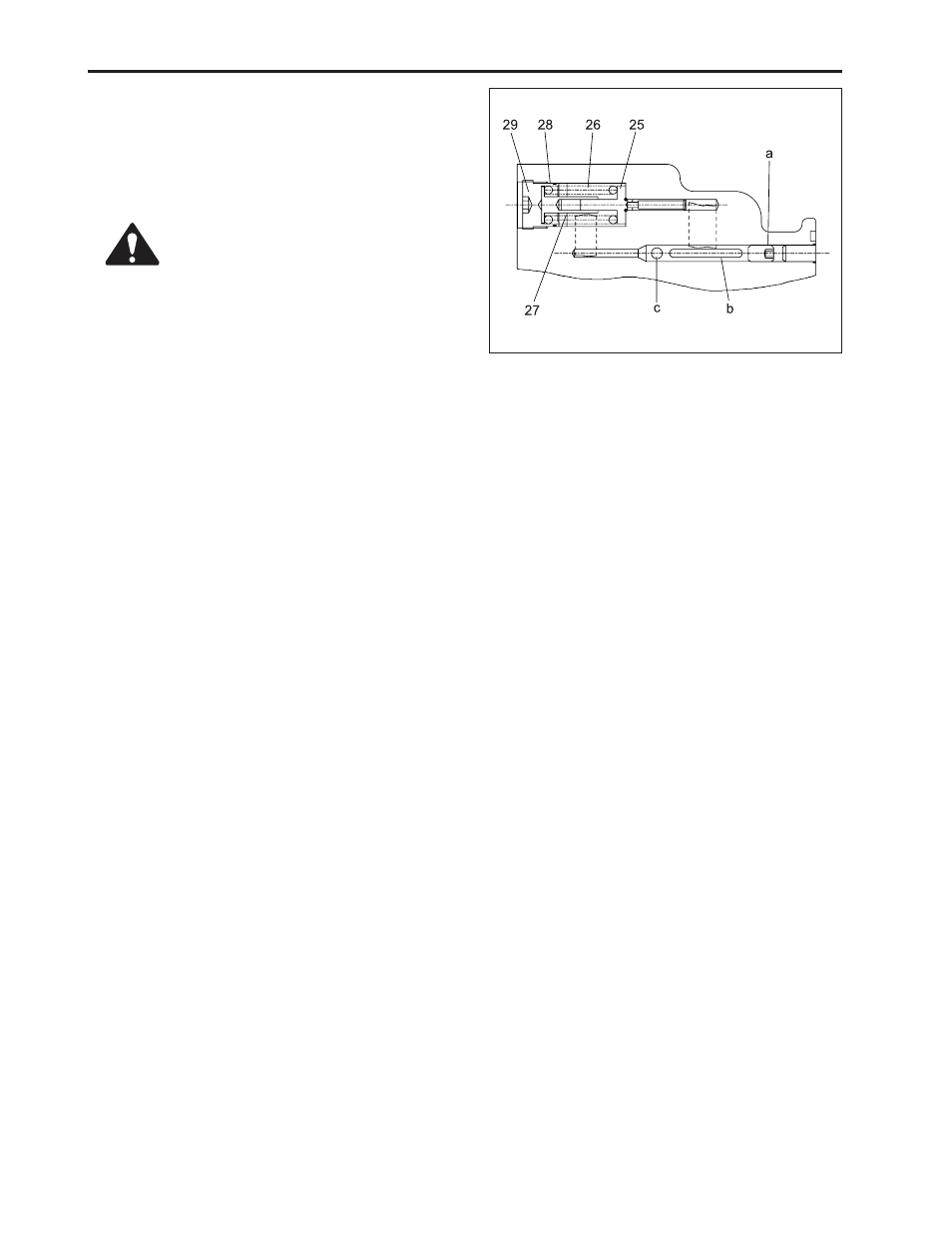

(a) Screw

(26) Spring

(b) Retainer Plate

(27) Damper Collar

(28) O-ring

(25) Poppet

(29) Adjusting Plug

•

When completing the assembly, ad-
just the pressure of relief valve.· Pres-
sure variance of relief adjusting plug
(29) is 15 kgf/cm² Per one rotation.

CAUTION

Precautions When Assembling Power Steering
Unit

1. Make sure that the machined ends of sleeve, spool

and housing are not damaged.

2. Perform disassembly and repair in a clean place

and wipe out dust and dirt of body connectors with
wire brush.

3. Make sure parts not dropped, chopped or damaged

when handling.

4. When disassembling power steering unit, follow this

instruction and never disassemble if possible.
