TRANSMISSION
4-13
D615-W02 May-2003
615W418A

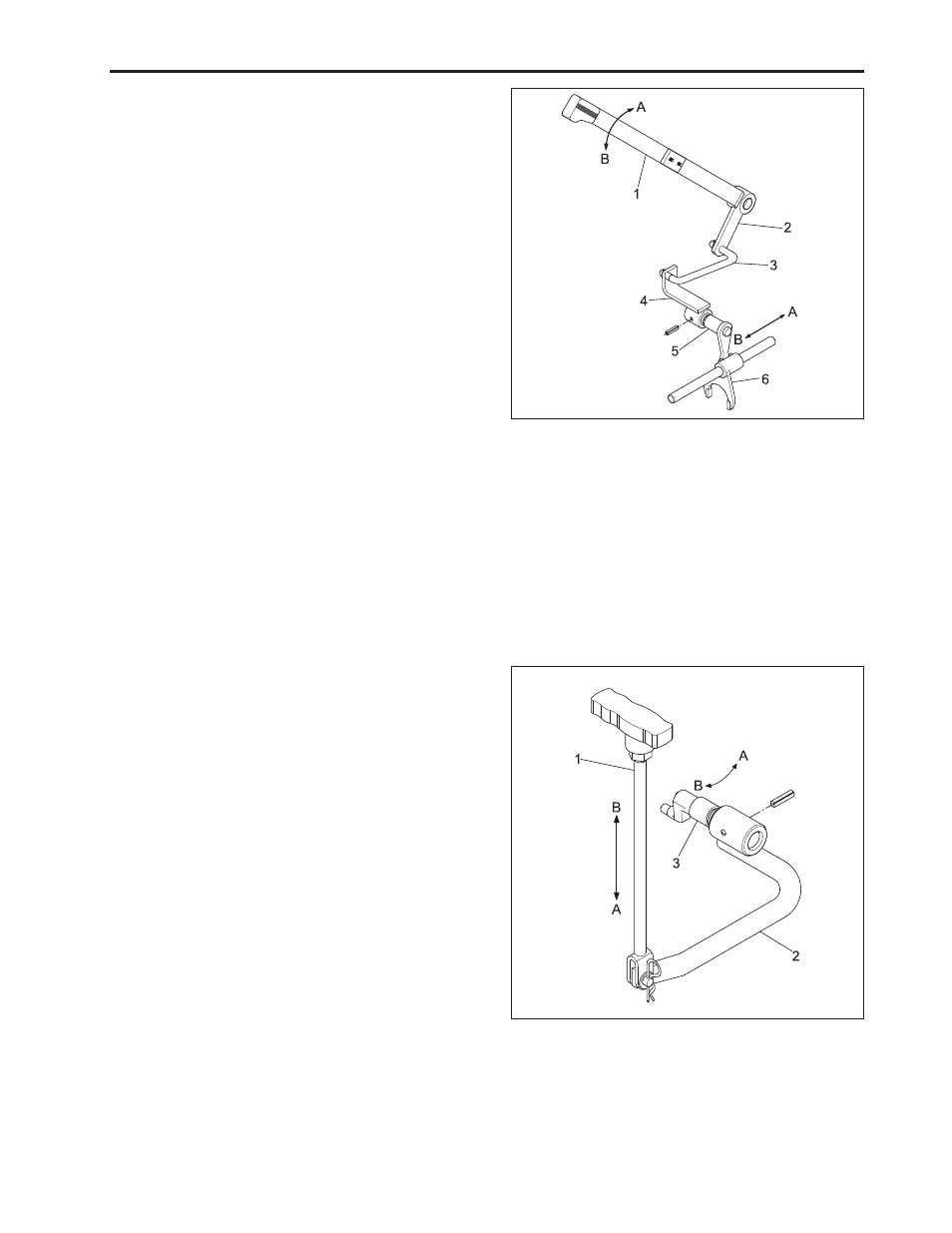

3.6 MID PTO SHIFT
•
Mid PTO lever (1) is located to the right of the
driver’s seat and connected to the mid PTO lever
assembly (2), rod (3), mid PTO lever 1 (4), trans-
mission arm (5), and the transmission fork (6).
•
Set the PTO switch at Neutral and convert switch
into Manual or Auto after a completion of transmis-
sion shift.
•
If pushing mid PTO lever forward, it will be set to
[Disengagement] and if pulling backward, set to
[Engagement].
(1) Mid PTO Lever
(2) Mid PTO Lever Assembly
(3) Rod (Mid PTO)
(4) Mid PTO Lever 1
(5) Transmission Arm
(6) Transmission Fork (Mid)
[A] ENGAGED
[B] DISENGAGED
615W419A
3.7 FRONT WHEEL DRIVE SHIFT
•
Front wheel drive lever 2 (1) is located at left lower
of driver’s seat and connected to front wheel drive
lever (2) and transmission arm (3) in the method of
gear engagement.
•
If pulling front wheel drive lever 2 (1) upward, it will
b e s e t t o [ D i s e n g a g e m e n t ] a n d i f p u s h i n g
downward, set to [Engagement].
(1) Front Wheel Drive Lever 2
(2) Front Wheel Drive Lever
(3) Transmission Arm (Front Wheel Drive)
[A] ENGAGED
[B] DISENGAGED
