FRONT AXLE
7-15
D615-W02 May-2003
615W722A
615W721A

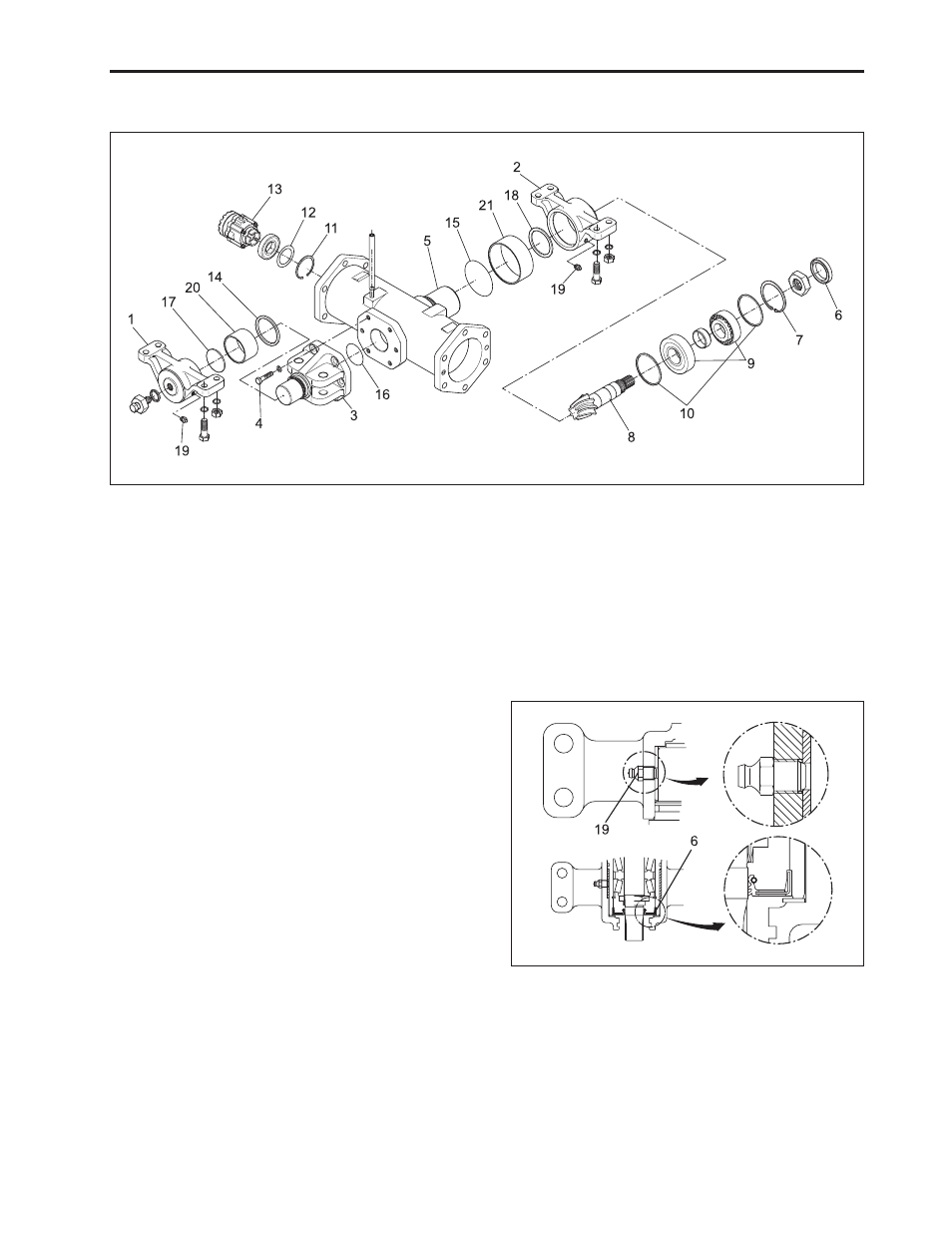

8.5 FIFTH STAGE (DISASSEMBLY OF FRONT AXLE SUPPORT)
1. Disconnect the front bracket (1) and rear bracket
(2).
2. Disengage center pin (3) attaching bolt (4) and dis-
connect center pin (3) from front axle support (5).
3. Pull out oil seal (6) and snap ring (7) and discon-
nect bevel pinion shaft (8) with taper roller bearing
(9) in a body.
4. Pull out snap ring (11) and disconnect the shim (12)
of front differential gear assembly (13).
(When reassembling)
•
Apply O-ring (14), (15), (16) and oil seal contacted
surface with grease.
•
Make rounding of snap ring toward bearing.
•
Make sure the type and number of shim and adjust-
ing collar (10) is correct.
•
Check for spacer plate (17), thrust collar (18) of front
and rear brackets.
(1) Front Bracket
(2) Rear Bracket
(3) Center Pin
(4) Bolt
(5) Front axle Support
(6) Oil Seal
(7) Snap Ring
(8) Bevel Pinion Shaft
(9) Taper Rolling Bearing
(10) Adjusting Collar
(11) Snap Ring
(12) Shim
(13) Front Differential Gear Assembly
(14) O-Ring
(15) O-Ring
(16) O-Ring
(17) Spacer Plate
(18) Thrust Collar
(19) Grease Nipple
(20) DX Bush
(21) Dx Bush
