Cub Cadet 8404 User Manual
Page 201
FRONT AXLE
7-13
D615-W02 May-2003
615W717A

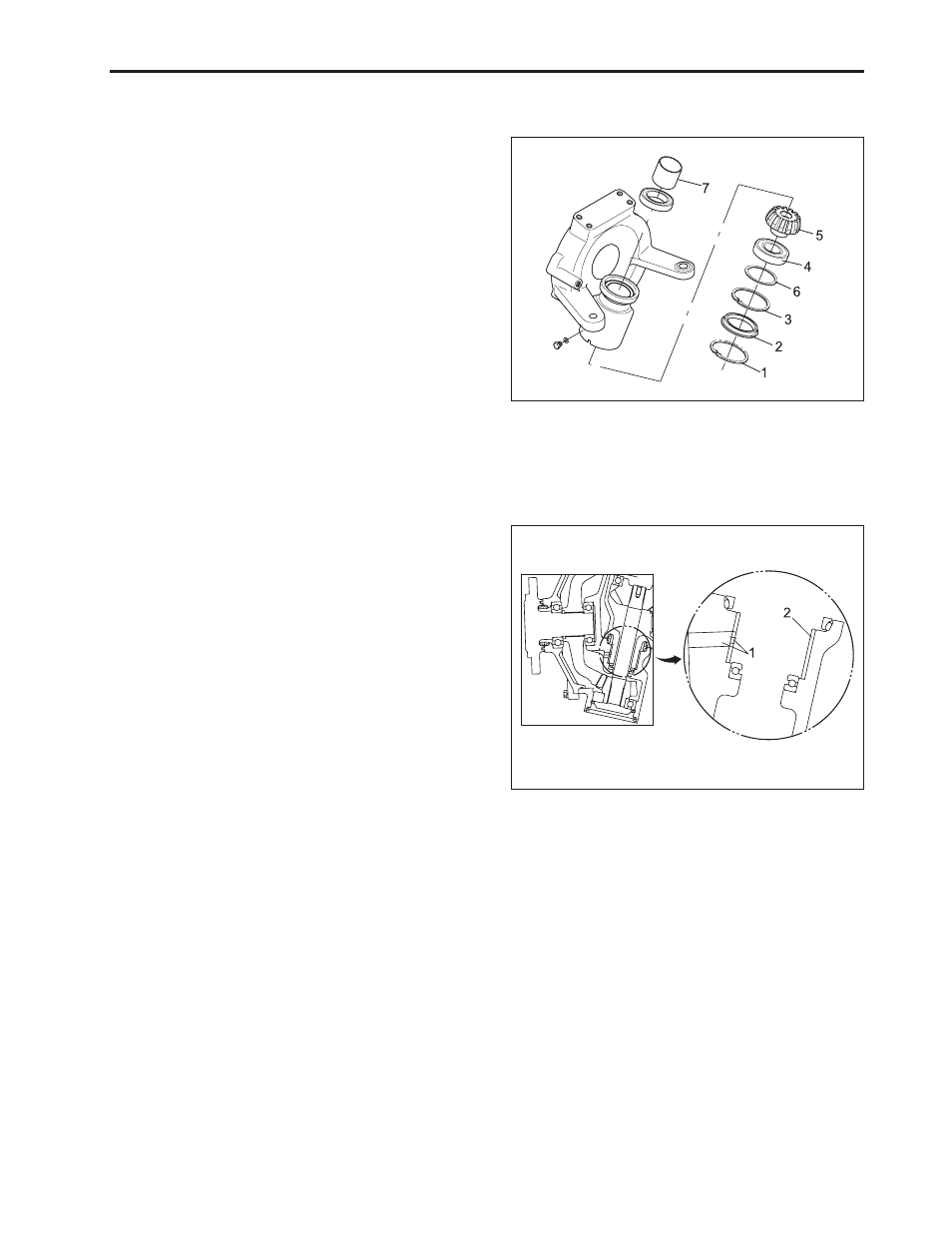

1. Pull out snap ring (1) and disassemble plug (2).
2. Pull out snap ring (3) and disassemble bevel gear
(5) and shim (6).
(When reassembling)
•
Make sure the type and number of shim is correct.
•
Apply DX bush (7) contacted surface with grease,
taking care of assembly direction.
(1) Snap Ring
(5) Bevel Gear
(2) Plug
(6) Shim
(3) Snap Ring
(7) DX Bush
(4) Ball Bearing
8.3 THIRD STAGE (DISASSEMBLY OF
FRONT AXLE CASE)
615W718A
A. DX Bush Assembling Method
Align bush hole with oil passage hole of front axle case
and always use assembly fixture.
(1) Oil Passage
(2) DX Bush
