CHAPTER 4 8354/8404
4-48 D615-W02 May-2003
615W483A

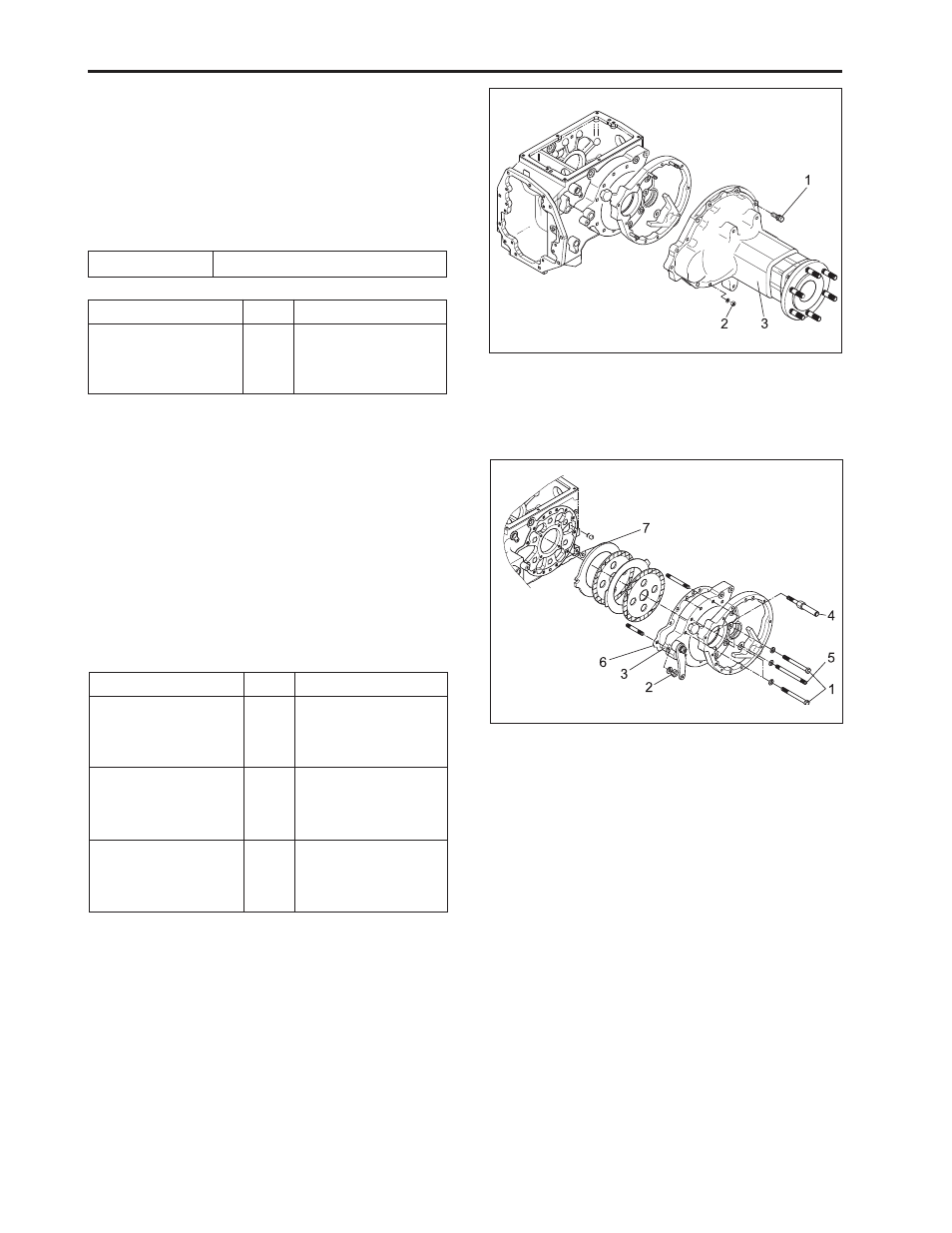

d. Fourth Stage (Disconnection of Rear Axle
Case)
1. Loosen bolt (1) and nut (2) and disconnect rear axle
case (3) in assembly.
(When reassembling)
• Remove foreign matters or oil from contacted sur-
face between brake case and rear axle case and
apply it with sealing agent.
(1) Bolt With Washer
(2) Nut
(3) Rear Axle Case
Sealing agent Three bond 1208D or equivalent
Sect. Tightening Torque
Tightening bolt, nut M10 48.1 ~ 55.9 N·m
4.9 ~ 5.7 kgf·m
35.4 ~ 41.2 lbf·ft
Spec.
615W485A
Sect. Spec. Tightening Torque
Tightening bolt
Stud
Tightening bolt
M12
M12
M12
77.5 ~ 90.2 N·m
7.9 ~ 9.2 kgf·m
57.1 ~ 66.5 lbf·ft
39.2 ~ 49.0 N·m
4.0 ~ 5.0 kgf·m
28.9 ~ 36.0 lbf·ft
77.5 ~ 90.2 N·m
7.9 ~ 9.2 kgf·m
57.1 ~ 66.5 lbf·ft
e. Fifth Stage (Disconnection of Brake Case)
1. Loosen bolt (1) and nut (2) and disconnect brake
case (3) in assembly.
(When reassembling)
• Make sure assembly position of lever shaft (4), bolt
(1), and stud (5) is correct.
- Assembly position: See Maintenance of Brake
Case.
• Replace packing (6), (7).
(1) Bolt (5) Stud
(2) Nut (6) Packing
(3) Brake Case (7) Packing
(4) Lever Shaft
