CHAPTER 7 8354/8404
7-14
D615-W03 May-2003
615W719B
615W720A

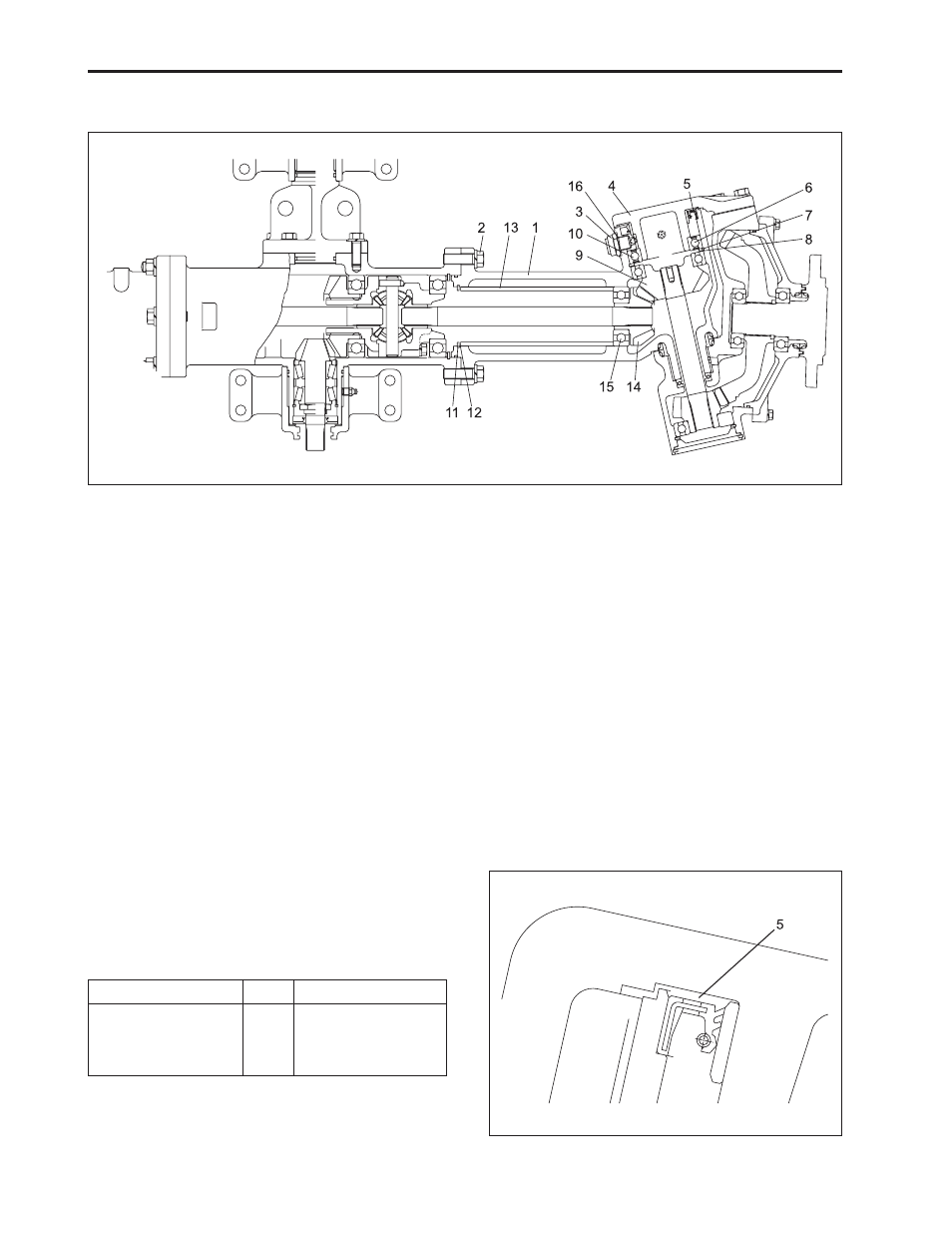

1. Disengage the attaching bolt (2) of bevel gear case
(1) and disconnect bevel gear case assembly from
front axle support.
2. Loosen plug (3).
3. Disassemble axle case support (4).
4. Pull out oil seal (5) and bearing (6).
5. Pull out snap ring (7) and disassemble shim (8)
and bevel gear (9) with bearing (10).
6. Pull out snap ring (11) and disassemble shim (12),
spacer barrel (13) and bevel gear (14) with bearing
(15).
(When reassembling)
•
Make sure the type and number of shim is correct.
•
Apply oil seal and O-ring with grease and make sure
oil seal is assembled in the right direction (Part No.
5 shown in the above figure).
8.4 FOURTH STAGE (DISASSEMBLY OF FRONT AXLE SUPPORT)
(1) Bevel Gear Case
(5) Oil Seal
(2) Bolt
(6) Ball Bearing
(3) Plug
(7) Snap Ring
(4) Axle Case Support
(8) Shim
Sect.
Spec.
Tightening torque
(9) Bevel Gear
(13) Spacer Barrel
(10) Ball Bearing
(14) Bevel Gear
(11) Snap Ring
(15) Ball Bearing
(12) Shim
Tightening bolt, nut
M14
123.5 ~ 147 N·m
12.6 ~ 15.0 kgf·m
91.2 ~ 108.4 lbf·ft
