CHAPTER 2 8354/8404
2-22 D615-W02 May-2003
615W253A
615W252A
615W251A
(a) Inlet Air
(b) To Intake Manifold
(c) Heavier Dust
(1) Outlet Port (4) Air Cleaner Element
(2) Inlet Port (5) Body
(3) Fin (6) Evacuator
C. MUFFLER
The exhaust noises are absorbed, while the gases are
passed through a series of holes on the inner tube
and glass wool of the muffler.
B. AIR CLEANER
The air cleaner is dry-cyclone type and easy to maintain.
The air from the inlet port (2) circulates along the fin (3)
and around the air cleaner element (4) and the heavier
dust is carried to the evacuator (6), to the dust exhaust
port. The fine dust in the air is filtered with the air cleaner
element (4), and the filtered air flows to the outlet port
(1).

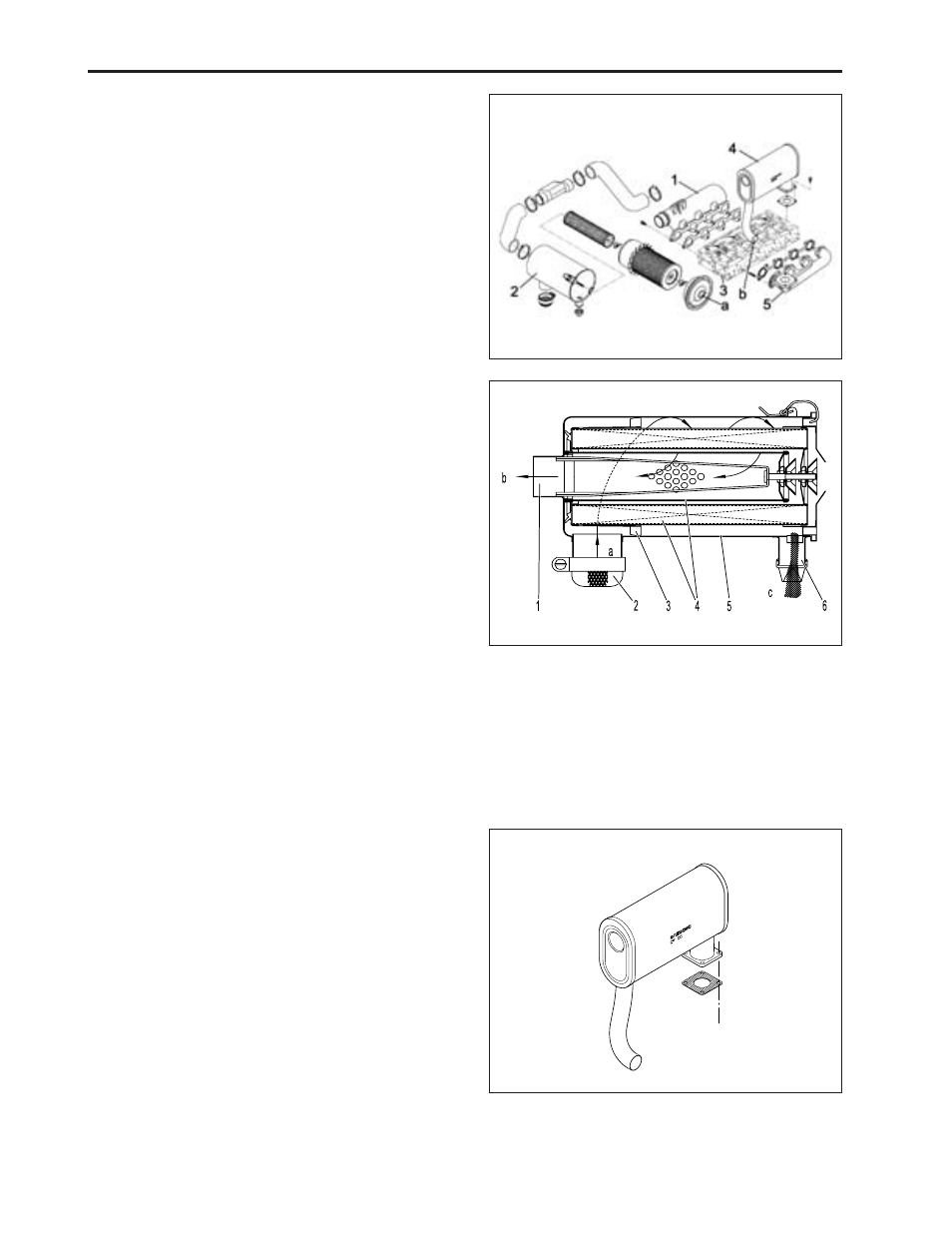

A. FLOW OF INTAKE AIR AND EXHAUST GAS
(a) Intake Air
(b) Exhaust Gas
(1) Intake Manifold
(2) Air Cleaner
(3) Cylinder Head
(4) Muffler
(5) Exhaust Manifold
